3M Products & Supplies

3M™ Double Coated Tape 9738R, Red, 24 mm x 55 m, 4.3 mil, 48 Roll/Case - 7000049277

Sold As: 48-Pack
SKU: 7000049277
MPN: 7000049277
For an accurate lead time please contact us
UPC: 00051115316586
3M ID: 70006436235
5 Digit UPC: 31658
$526.06 ($10.96 / Count)
Hurry up! Current stock:

Product Description

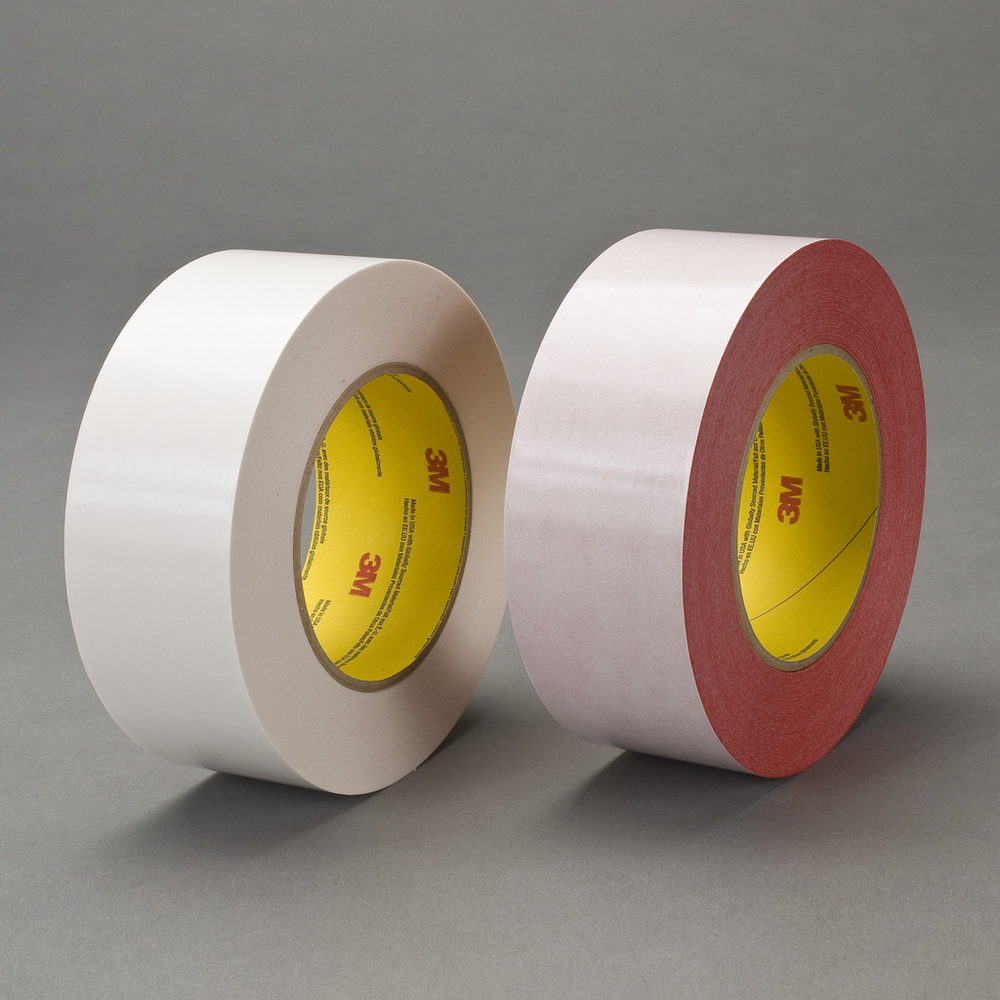

3M™ Double Coated Tape 9738 Clear is a double-sided tape mounted on a non-woven tissue carrier with a pressure sensitive acrylic adhesive that offers a balance of high initial adhesion and good holding power. It is mounted on a 55 lb. densified kraft paper liner for easy release and manipulation during application.

Features

  • Good moisture resistance to ensure performance in a variety of situations
  • Versatile adhesion bonds well to kraft and coated papers, as well plastic
  • High tack acrylic adhesive performs well across broad temperature range
  • Avaiable in clear
  • Ideal performance in high speed splicing applications
  • Excellent peel, tack and shear strength to withstand rigorous splicing applications
Spec Sheet



Downloads

Specifications

Shelf Life365
Country of OriginUnited States
Shelf Life in Months (From Date of Manufacture) UOMMonths
Number of Adhesive SidesDouble-sided
Primary Liner ColorWhite
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial)4.3
Total Tape Thickness without Liner (Metric) UOMmm
Shelf Life in Months (From Date of Manufacture)12.0
IndustriesFilm, Packaging, Paper, Print
Tape TypeDouble Coated
Carrier MaterialTissue
Maximum Operating Temperature (Fahrenheit) UOMDegree
Back Side Adhesive TypeAcrylic
Product FormRoll
Overall Length (Imperial)60.15
Carrier Thickness (Metric) UOMmm
Adhesive TypeAcrylic
Carrier Thickness (Metric)0.033
Units per Case48.0
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Fahrenheit)300.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner Thickness (Metric)0.08
Minimum Operating Temperature (Fahrenheit)-10.0
Overall Width (Imperial)0.95
Backing (Carrier) MaterialNon-woven Tissue
Overall Width (Metric)24.0
Backing (Carrier) Thickness (Metric)0.033
Overall Length (Metric)55.0
Primary Liner Thickness (Metric) UOMmm
Product ColorRed
Primary Liner55# Densified Kraft Paper (DK)
Backing (Carrier) Thickness (Imperial) UOMmil
Shelf Life UOMMonth
ApplicationOverlap Splice
Backing (Carrier) Thickness (Imperial)1.3
Carrier Thickness UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Carrier Thickness1.3
Overall Length (Metric) UOMm
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric)0.109
Product CategoryAdhesive Transfer Tapes & Double Coated Tapes
