3M Products & Supplies

3M™ Dual Lock™ Low Profile Reclosable Fastener SJ4570, Clear, 12 in x 50 yd, 1 Roll/Case - 7010334802

SKU: 7010334802
MPN: 7010334802
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138961039
3M ID: 70006394665
5 Digit UPC: 96103
$2,523.70 each
Hurry up! Current stock:

Product Description

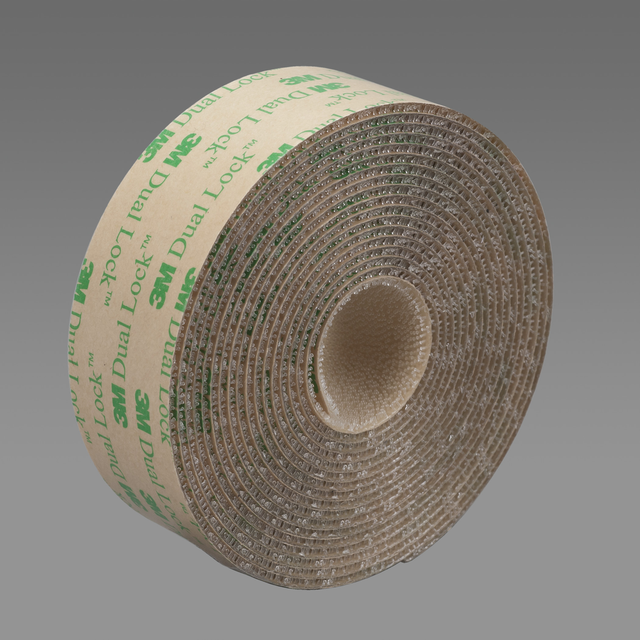

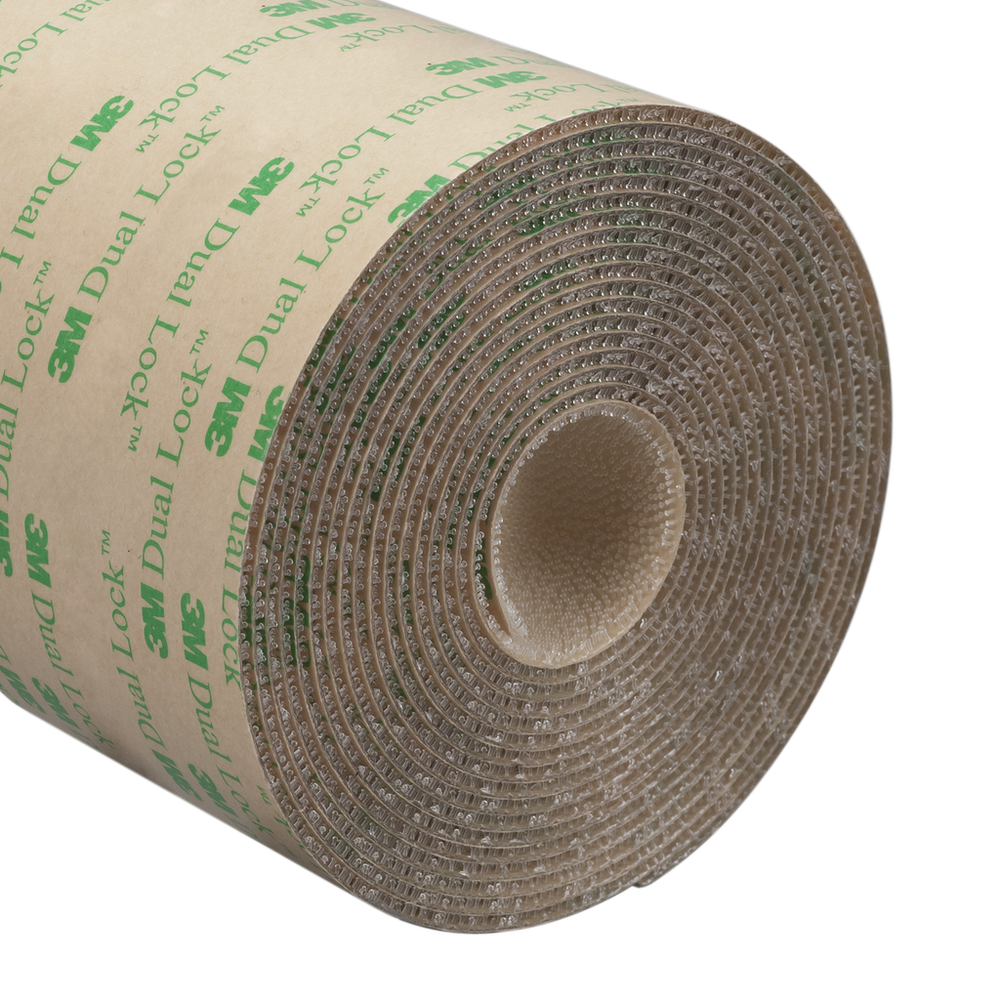

3M™ Dual Lock Reclosable Fastener SJ4570 Low Profile is a low surface energy adhesive on the back of a clear polypropylene reclosable fastener. This product is half the thickness of standard 3M Dual Lock Reclosable Fasteners, providing a low profile attachment. An alternative to screws and bolts, this hidden fastener provides a snug fit and smooth aesthetic appearance. 3M™ Dual Lock Reclosable Fastener SJ4570 Low Profile is designed for indoor use and low to medium temperature performance. This product offers temperature resistance up to 158F and can be used with metals such as aluminum and stainless steel; as well as glass, many plastics (polypropylene, polyethylene, polycarbonate, ABS) powder coated paints and medium to low surface energy materials.

Features

  • An alternative to screws and bolts, this hidden fastener provides a snug fit and smooth aesthetic appearance
  • Strong fastener secures with an audible snap, verifying closure
  • Clear, low profile, polyolefin fastener is half the thickness of standard 3M™ Dual Lock™ Reclosable Fasteners and is self-mating
  • Low surface energy acrylic adhesive bonds well to a variety of substrates including metals, powder-coated paints and a broad range of plastics
  • Features good temperature resistance of 158°F (70°C)
  • Interlocking mushroom-shaped heads provide strong, reliable and durable fastening that can be opened and closed multiple times
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial)12.0
Overall Width (Metric)304.8
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)50.0
Overall Length (Metric) UOMm
ApplicationAttaching Graphics; Kiosk Assembly; Luxury Box Assembly; Mounting Motorcycle Accessories; Sensor Attachment
Primary Liner Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius)70.0
IndustriesConstruction, Electronics, Furniture, General Industrial, MRO, Medical, Military and Government, Packaging, Retail, Specialty Vehicles, Transportation
Indoor/OutdoorIndoor
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)45.72
Overall Width (Imperial) UOMin
Adhesive ColorTransparent
Closure Life100.0
Primary Liner Thickness (Imperial)6.2
Engaged Thickness (Imperial) UOMin
Engaged Thickness (Metric) UOMmm
Primary Liner Thickness (Metric)0.16
Primary Liner Thickness (Imperial) UOMmil
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)158.0
Adhesive TypeLow Surface Energy Acrylic Adhesive
Flame RetardantNo
Primary Liner83# Polycoated Kraft Paper (PCK)
Product FormRoll
Overall Length (Imperial) UOMyd
