3M Products & Supplies

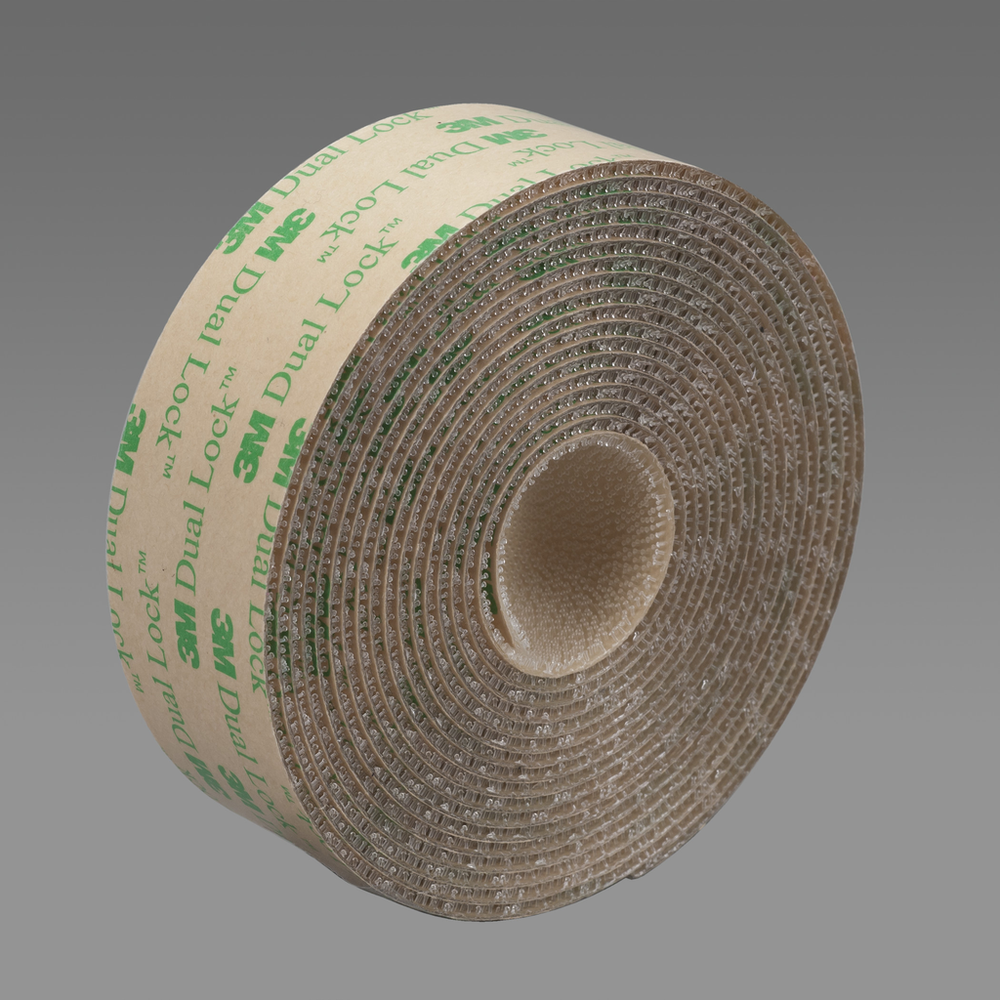

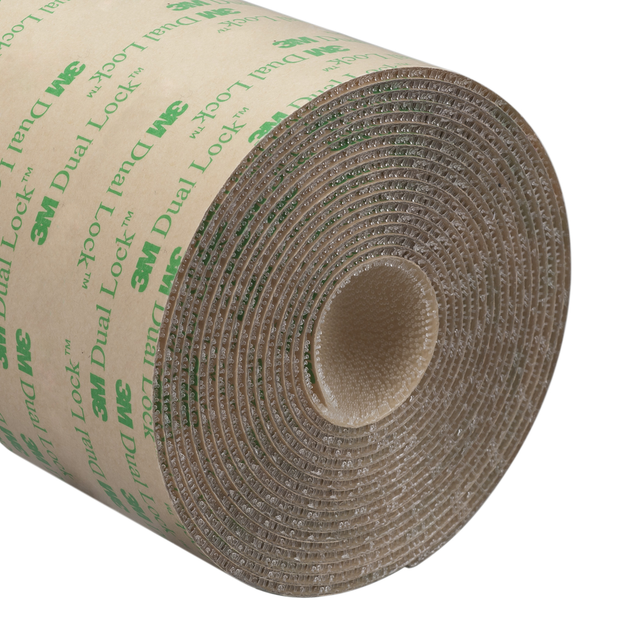

3M™ Dual Lock™ Low Profile Reclosable Fastener SJ4570, Clear, 6 in x 50 yd, 1 Roll/Case - 7000029690

SKU: 7000029690
MPN: 7000029690
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200560071
3M ID: 70070968147
5 Digit UPC: 56007
$1,261.85 each
Hurry up! Current stock:

Product Description

3M™ Dual Lock Reclosable Fastener SJ4570 Low Profile is a low surface energy adhesive on the back of a clear polypropylene reclosable fastener. This product is half the thickness of standard 3M Dual Lock Reclosable Fasteners, providing a low profile attachment. An alternative to screws and bolts, this hidden fastener provides a snug fit and smooth aesthetic appearance. 3M™ Dual Lock Reclosable Fastener SJ4570 Low Profile is designed for indoor use and low to medium temperature performance. This product offers temperature resistance up to 158F and can be used with metals such as aluminum and stainless steel; as well as glass, many plastics (polypropylene, polyethylene, polycarbonate, ABS) powder coated paints and medium to low surface energy materials.

Features

  • Strong fastener secures with an audible snap, verifying closure
  • An alternative to screws and bolts, this hidden fastener provides a snug fit and smooth aesthetic appearance
  • Clear, low profile, polyolefin fastener is half the thickness of standard 3M™ Dual Lock™ Reclosable Fasteners and is self-mating
  • Low surface energy acrylic adhesive bonds well to a variety of substrates including metals, powder-coated paints and a broad range of plastics
  • Features good temperature resistance of 158°F (70°C)
  • Interlocking mushroom-shaped heads provide strong, reliable and durable fastening that can be opened and closed multiple times
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial) UOMyd
Engaged Thickness (Metric) UOMmm
Primary Liner83# Polycoated Kraft Paper (PCK)
IndustriesConstruction, Electronics, Furniture, General Industrial, MRO, Medical, Military and Government, Packaging, Retail, Specialty Vehicles, Transportation
Closure Life150.0
Overall Length (Imperial)50.0
Engaged Thickness (Imperial) UOMin
Primary Liner Thickness (Imperial)6.2
Units per Case1.0
Product ColorTransparent
Overall Width (Imperial)6.0
Backing (Carrier) MaterialPolypropylene
ApplicationAttaching Graphics; Kiosk Assembly; Luxury Box Assembly; Mounting Motorcycle Accessories; Sensor Attachment
Overall Length (Metric)45.72
Maximum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner Thickness (Metric)0.16
Flame RetardantNo
Product FormRoll
Maximum Operating Temperature (Celsius)70.0
Primary Liner Thickness (Imperial) UOMmil
Primary Liner Thickness (Metric) UOMmm
Adhesive ColorTransparent
Overall Length (Metric) UOMm
Overall Width (Metric)152.4
Adhesive TypeLow Surface Energy Acrylic Adhesive
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Indoor/OutdoorIndoor
Maximum Operating Temperature (Fahrenheit)158.0
Overall Width (Metric) UOMmm
