3M Products & Supplies

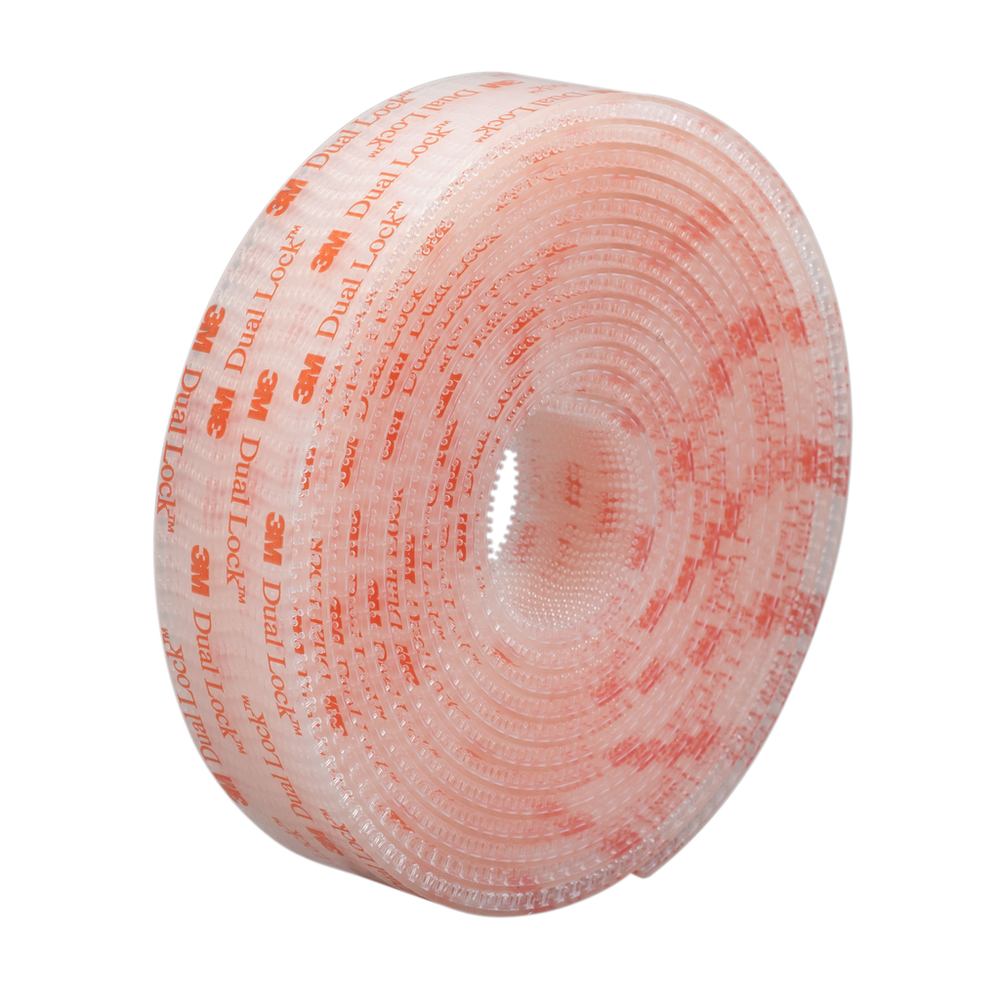

3M™ Dual Lock™ Reclosable Fastener SJ3560, Clear, 1 in x 50 yd, Type 250, Flagged Splice, 2 Roll/Case - 7000049199

Sold As: 6-Pack
SKU: 7000049199
MPN: 7000049199
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200973826
3M ID: 70006410834
5 Digit UPC: 97382
$3,528.21 ($588.03 / Count)
Hurry up! Current stock:

Product Description

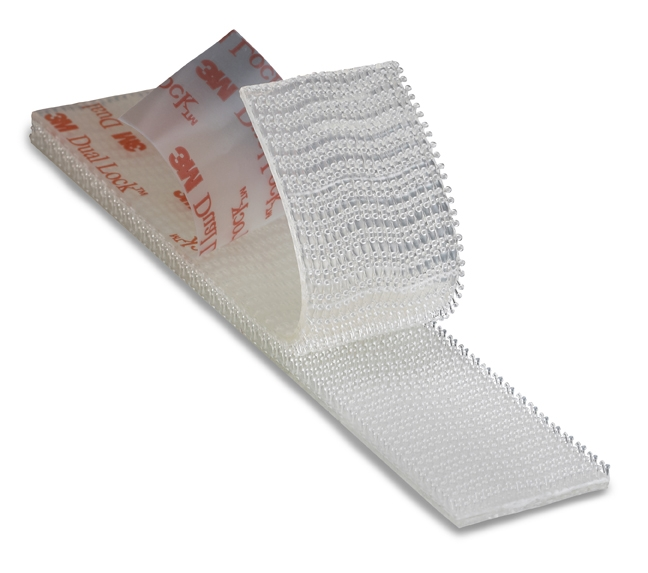

3M™ Dual Lock™ Reclosable Fastener SJ3560 is the convenient alternative to traditional fastening methods, such as screws, nuts or bolts. It is designed to deliver a durable, reclosable fastening solution which bonds to a variety of substrates including metals, glass and plastics such as acrylics, polycarbonate and ABS. This fastener gives a translucent appearance.

Features

  • Features good temperature resistance of 220°F (104°C)
  • Clear, interlocking mushroom-shaped heads (250 stem density per square inch) provide strong, reliable and durable fastening that can be opened and closed multiple times
  • Mates with Type 170, Type 250 or Type 400 stem densities to provide different strength combinations
  • Clear, acrylic, tape bonds well to a variety of substrates including metals, glass and plastics such as acrylics, polycarbonate and ABS
  • Strong fastener secures with an audible snap, verifying closure
  • An alternative to screws and bolts, this hidden fastener provides a snug fit and smooth aesthetic appearance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Adhesive TypeClear Acrylic Adhesive
Primary LinerClear Polyolefin
Solution forWireless Network: Infrastructure Accessories
Engaged Thickness (Imperial) UOMin
Indoor/OutdoorIndoor/Outdoor
Primary Liner Thickness (Imperial) UOMmil
Primary Liner Thickness (Metric) UOMmm
Overall Length (Metric) UOMm
Flame RetardantNo
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)104.0
Overall Width (Metric)25.4
Maximum Operating Temperature (Fahrenheit) UOMDegree
Primary Liner ColorTransparent
Engaged Thickness (Metric) UOMmm
Overall Width (Imperial)1.0
Adhesive ColorTransparent
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)220.0
Overall Length (Imperial) UOMyd
Closure Life1000.0
Product FormRoll
Stem Density250.0
Overall Length (Metric)45.72
Primary Liner Thickness (Metric)0.1
Units per Case2.0
Overall Width (Metric) UOMmm
Primary Liner Thickness (Imperial)4.0
IndustriesConstruction, Electronics, Furniture, General Industrial, MRO, Medical, Military and Government, Packaging, Retail, Specialty Vehicles, Transportation
Overall Length (Imperial)50.0
