3M Products & Supplies

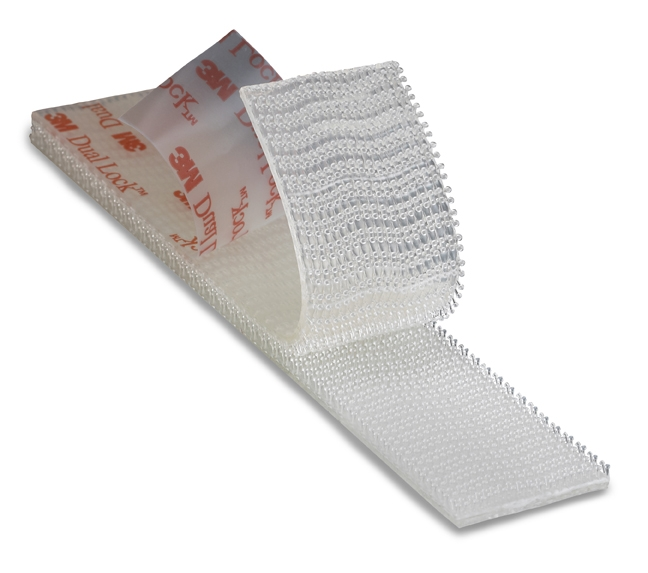

3M™ Dual Lock™ Reclosable Fastener SJ3560, Clear, 6 in x 50 yd, Type 250, Flagged Splice, 1 Roll/Case - 7000049200

SKU: 7000049200
MPN: 7000049200
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200973840
3M ID: 70006410859
5 Digit UPC: 97384
$3,528.34 each
Hurry up! Current stock:

Product Description

3M™ Dual Lock™ Reclosable Fastener SJ3560 is the convenient alternative to traditional fastening methods, such as screws, nuts or bolts. It is designed to deliver a durable, reclosable fastening solution which bonds to a variety of substrates including metals, glass and plastics such as acrylics, polycarbonate and ABS. This fastener gives a translucent appearance.

Features

  • Features good temperature resistance of 220°F (104°C)
  • Mates with Type 170, Type 250 or Type 400 stem densities to provide different strength combinations
  • Clear, acrylic, tape bonds well to a variety of substrates including metals, glass and plastics such as acrylics, polycarbonate and ABS
  • An alternative to screws and bolts, this hidden fastener provides a snug fit and smooth aesthetic appearance
  • Strong fastener secures with an audible snap, verifying closure
  • Clear, interlocking mushroom-shaped heads (250 stem density per square inch) provide strong, reliable and durable fastening that can be opened and closed multiple times
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial)6.0
Solution forWireless Network: Infrastructure Accessories
Overall Width (Metric)152.4
Closure Life1000.0
Overall Length (Metric)45.72
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
Product FormRoll
Product ColorTransparent
Engaged Thickness (Imperial) UOMin
IndustriesConstruction, Electronics, Furniture, General Industrial, MRO, Medical, Military and Government, Packaging, Retail, Specialty Vehicles, Transportation
Engaged Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Adhesive ColorTransparent
Primary Liner Thickness (Metric)0.1
Adhesive TypeClear Acrylic Adhesive
Primary LinerClear Polyolefin
Primary Liner Thickness (Imperial) UOMmil
Primary Liner Thickness (Metric) UOMmm
Overall Length (Imperial)50.0
Stem Density250.0
Overall Width (Imperial) UOMin
Units per Case1.0
Primary Liner Thickness (Imperial)4.0
Backing (Carrier) MaterialPolypropylene
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)220.0
Flame RetardantNo
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Celsius)104.0
Indoor/OutdoorIndoor/Outdoor
Primary Liner ColorTransparent
