3M Products & Supplies

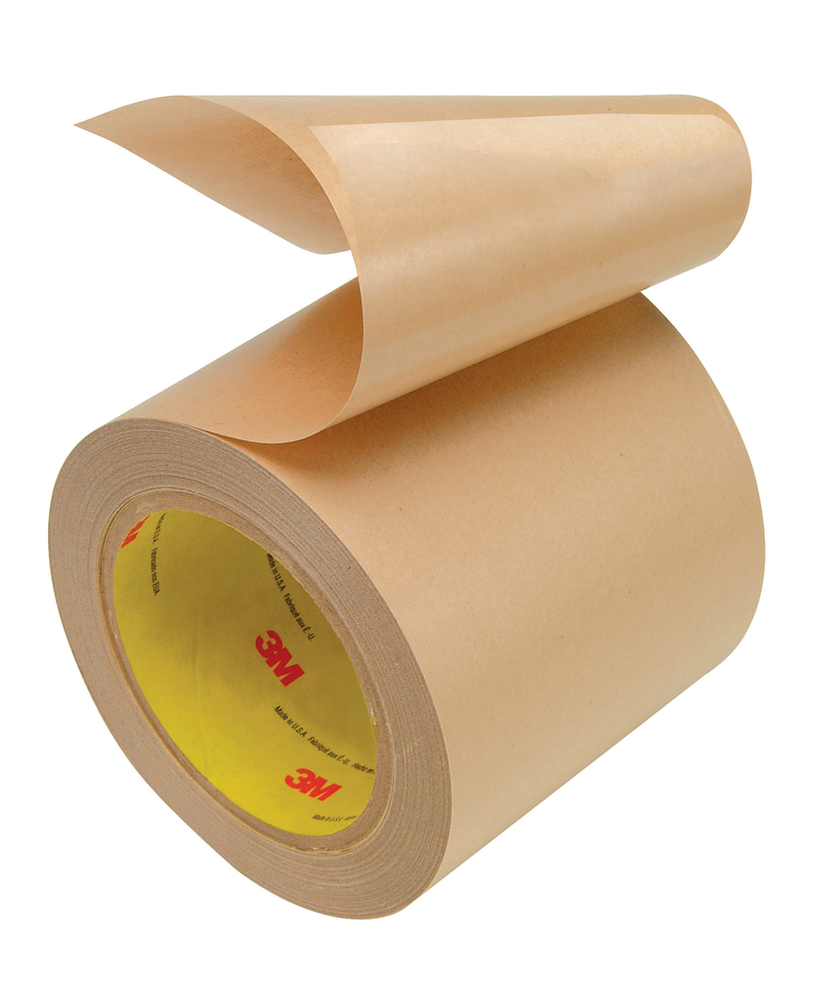

3M™ Electrically Conductive Adhesive Transfer Tape 9703, 1 in x 10 yds - 7100308953

Sold As: 12-Pack
SKU: 7100308953
MPN: 7100308953
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060473592
3M ID: 80001601006
$610.36 ($50.86 / Count)
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Adhesive Transfer Tape 9703 is a low-outgassing Z-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. It’s filled with silver conductive particles for interconnection of electronic substrates and can help enable Z-axis interconnects without shorting adjacent circuitry. Featuring high electrical conductivity, this double-sided tape provides low resistance for small contact areas and high frequencies. It provides robust protection against EMI in a range of market segments with low outgassing requirements, especially aerospace and defense.

Features

  • Anisotropic Z-axis electrical conductivity
  • Easy to use in assembly operations
  • Can be applied as die-cut parts or in roll form
  • PSA tack properties
  • Low-outgassing acrylic adhesive
  • Thermal curing not required
Spec Sheet



Downloads

Specifications

Shelf Life24.0 Month
Country of OriginUnited States
Adhesive TypeAcrylic
ApplicationAttaching; Electrostatic Discharge (ESD); Grounding; Interconnecting
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial)2.0
Total Tape Thickness without Liner (Imperial) UOMmil
Product ColorSilver
Adhesion Strength (Imperial)907.0
Overall Length (Imperial)10.0
Overall Length (Metric)9.144
Product UsageCamera Modules; Chassis; Flexible Printed Circuits; Printed Circuit Boards; Sensors
Overall Width (Metric)25.4
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.05
Liner MaterialPET
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Overall Width (Imperial)1.0
Maximum Operating Temperature (Fahrenheit)185.0 Degree Fahrenheit
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Electrical ResistanceZ-axis 0.01 Ω
Maximum Operating Temperature (Celsius)85.0 Degree Celsius
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric) UOMm
