3M Products & Supplies

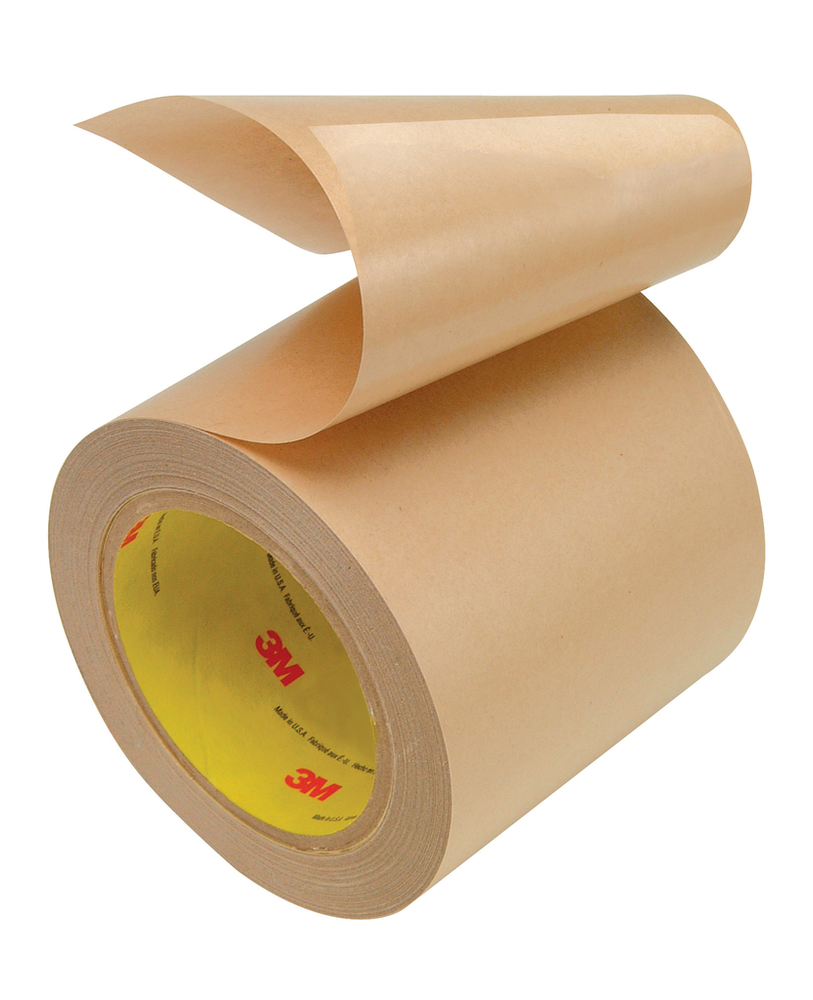

3M™ Electrically Conductive Adhesive Transfer Tape 9703, 1/4 in x 36 yd, 36 rolls per case - 7010333907

Sold As: 36-Pack
SKU: 7010333907
MPN: 7010333907
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200396168
3M ID: 70006242864
5 Digit UPC: 39616
$2,475.90 ($68.78 / Count)
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Adhesive Transfer Tape 9703 is a low-outgassing Z-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. It’s filled with silver conductive particles for interconnection of electronic substrates and can help enable Z-axis interconnects without shorting adjacent circuitry. Featuring high electrical conductivity, this double-sided tape provides low resistance for small contact areas and high frequencies. It provides robust protection against EMI in a range of market segments with low outgassing requirements, especially aerospace and defense.

Features

  • PSA tack properties
  • Anisotropic Z-axis electrical conductivity
  • Can be applied as die-cut parts or in roll form
  • Thermal curing not required
  • Easy to use in assembly operations
  • Low-outgassing acrylic adhesive
Spec Sheet



Downloads

Specifications

Shelf Life24.0 Month
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial)2.0
Overall Length (Metric) UOMm
Adhesive TypeAcrylic
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Overall Length (Imperial)36.0
Overall Width (Imperial)0.25
Maximum Operating Temperature (Celsius)85.0 Degree Celsius
Maximum Operating Temperature (Fahrenheit)185.0 Degree Fahrenheit
Overall Width (Metric)6.35
ApplicationAttaching; Electrostatic Discharge (ESD); Grounding; Interconnecting
Overall Length (Metric)32.918
Liner MaterialPET
Adhesion Strength (Imperial)907.0
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.05
Product UsageCamera Modules; Chassis; Flexible Printed Circuits; Printed Circuit Boards; Sensors
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial) UOMmil
Electrical ResistanceZ-axis 0.01 Ω
Product ColorSilver
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Overall Width (Metric) UOMmm
