3M Products & Supplies

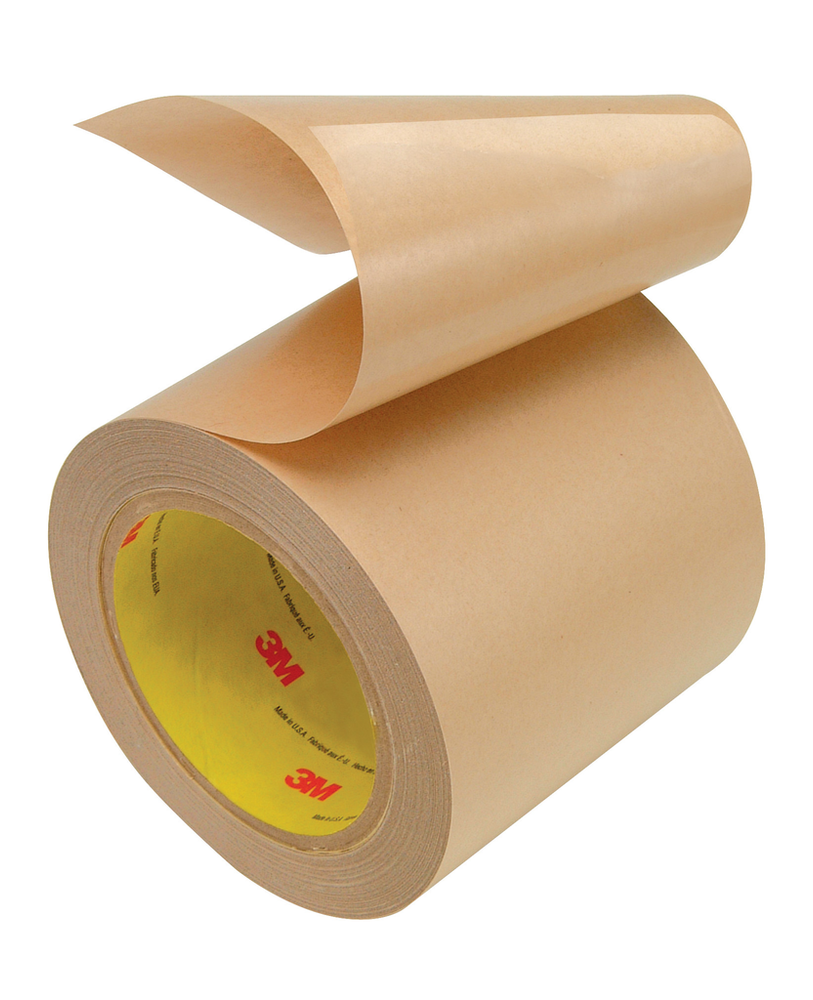

3M™ Electrically Conductive Adhesive Transfer Tape 9703, 12 in x 36 yds, 1 roll per case Bulk - 7000001225

SKU: 7000001225
MPN: 7000001225
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200393570
3M ID: 70006241577
5 Digit UPC: 39357
$2,063.52 each
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Adhesive Transfer Tape 9703 is a low-outgassing Z-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. It’s filled with silver conductive particles for interconnection of electronic substrates and can help enable Z-axis interconnects without shorting adjacent circuitry. Featuring high electrical conductivity, this double-sided tape provides low resistance for small contact areas and high frequencies. It provides robust protection against EMI in a range of market segments with low outgassing requirements, especially aerospace and defense.

Features

  • Thermal curing not required
  • Can be applied as die-cut parts or in roll form
  • PSA tack properties
  • Anisotropic Z-axis electrical conductivity
  • Low-outgassing acrylic adhesive
  • Easy to use in assembly operations
Spec Sheet



Downloads

Specifications

Shelf Life24.0 Month
Country of OriginUnited States
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Adhesion Strength (Imperial)907.0
Maximum Operating Temperature (Fahrenheit)185.0 Degree Fahrenheit
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Metric)0.05
Overall Width (Metric) UOMmm
Overall Length (Imperial)36.0
Maximum Operating Temperature (Celsius)85.0 Degree Celsius
Total Tape Thickness without Liner (Imperial)2.0
Product ColorSilver
Overall Length (Imperial) UOMyd
Liner MaterialPET
Overall Length (Metric)32.918
Overall Width (Imperial)12.0
Overall Length (Metric) UOMm
Product UsageCamera Modules; Chassis; Flexible Printed Circuits; Printed Circuit Boards; Sensors
ApplicationAttaching; Electrostatic Discharge (ESD); Grounding; Interconnecting
Electrical ResistanceZ-axis 0.01 Ω
Overall Width (Metric)304.8
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Adhesive TypeAcrylic
Total Tape Thickness without Liner (Metric) UOMmm
