3M Products & Supplies

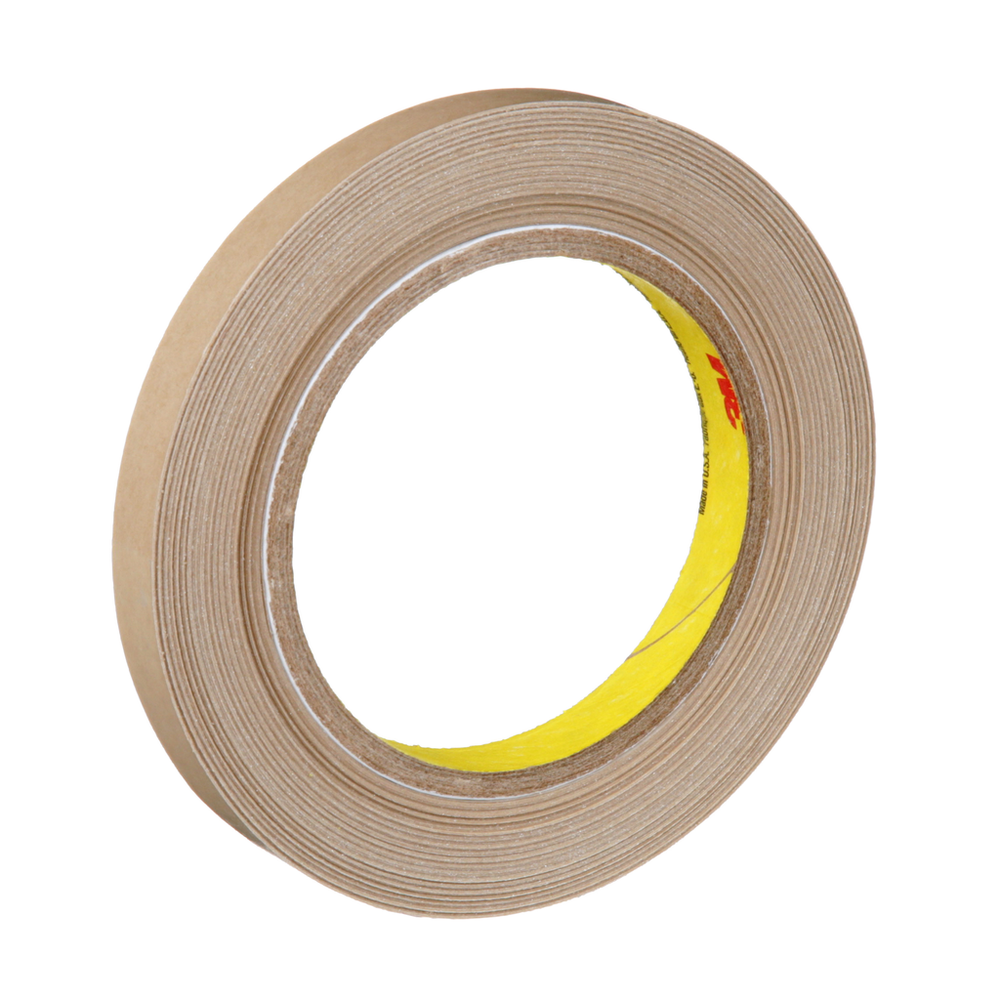

3M™ Electrically Conductive Adhesive Transfer Tape 9703, 1/2 in x 36 yd, 18 rolls per case Bulk - 7010373830

Sold As: 18-Pack
SKU: 7010373830
MPN: 7010373830
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200396175
3M ID: 70006242872
5 Digit UPC: 39617
$1,547.65 ($85.98 / Count)
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Adhesive Transfer Tape 9703 is a low-outgassing Z-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. It’s filled with silver conductive particles for interconnection of electronic substrates and can help enable Z-axis interconnects without shorting adjacent circuitry. Featuring high electrical conductivity, this double-sided tape provides low resistance for small contact areas and high frequencies. It provides robust protection against EMI in a range of market segments with low outgassing requirements, especially aerospace and defense.

Features

  • Low-outgassing acrylic adhesive
  • Thermal curing not required
  • Anisotropic Z-axis electrical conductivity
  • Easy to use in assembly operations
  • PSA tack properties
  • Can be applied as die-cut parts or in roll form
Spec Sheet



Downloads

Specifications

Shelf Life24.0 Month
Country of OriginUnited States
ApplicationAttaching; Electrostatic Discharge (ESD); Grounding; Interconnecting
Total Tape Thickness without Liner (Metric) UOMmm
Liner MaterialPET
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)2.0
Overall Length (Imperial)36.0
Total Tape Thickness without Liner (Metric)0.05
Maximum Operating Temperature (Celsius)85.0 Degree Celsius
Overall Width (Imperial) UOMin
Product UsageCamera Modules; Chassis; Flexible Printed Circuits; Printed Circuit Boards; Sensors
Overall Width (Imperial)0.5
Overall Length (Metric)32.918
Adhesion Strength (Imperial)907.0
Adhesive TypeAcrylic
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Overall Length (Imperial) UOMyd
Overall Width (Metric)12.7
Electrical ResistanceZ-axis 0.01 Ω
Product ColorSilver
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)185.0 Degree Fahrenheit
Overall Length (Metric) UOMm
