3M Products & Supplies

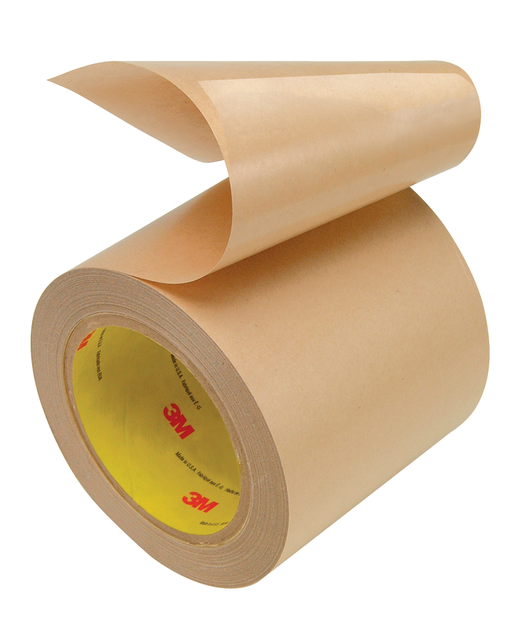

3M™ Electrically Conductive Adhesive Transfer Tape 9703, 6 in x 36 yds, 2 rolls per case - 7000048745

Sold As: 2-Pack
SKU: 7000048745
MPN: 7000048745
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200427541
3M ID: 70006220019
5 Digit UPC: 42754
$2,063.53 ($1031.77 / Count)
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Adhesive Transfer Tape 9703 is a low-outgassing Z-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. It’s filled with silver conductive particles for interconnection of electronic substrates and can help enable Z-axis interconnects without shorting adjacent circuitry. Featuring high electrical conductivity, this double-sided tape provides low resistance for small contact areas and high frequencies. It provides robust protection against EMI in a range of market segments with low outgassing requirements, especially aerospace and defense.

Features

  • Anisotropic Z-axis electrical conductivity
  • Low-outgassing acrylic adhesive
  • Easy to use in assembly operations
  • PSA tack properties
  • Thermal curing not required
  • Can be applied as die-cut parts or in roll form
Spec Sheet



Downloads

Specifications

Shelf Life24.0 Month
Country of OriginUnited States
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Overall Length (Imperial)36.0
Product ColorSilver
Overall Width (Imperial)6.0
Total Tape Thickness without Liner (Imperial)2.0
Liner MaterialPET
Maximum Operating Temperature (Fahrenheit)185.0 Degree Fahrenheit
Overall Width (Metric)152.4
ApplicationAttaching; Electrostatic Discharge (ESD); Grounding; Interconnecting
Adhesive TypeAcrylic
Electrical ResistanceZ-axis 0.01 Ω
Adhesion Strength (Imperial)907.0
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Celsius)85.0 Degree Celsius
Overall Length (Metric)32.918
Product UsageCamera Modules; Chassis; Flexible Printed Circuits; Printed Circuit Boards; Sensors
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial) UOMyd
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Metric)0.05
Overall Width (Metric) UOMmm
