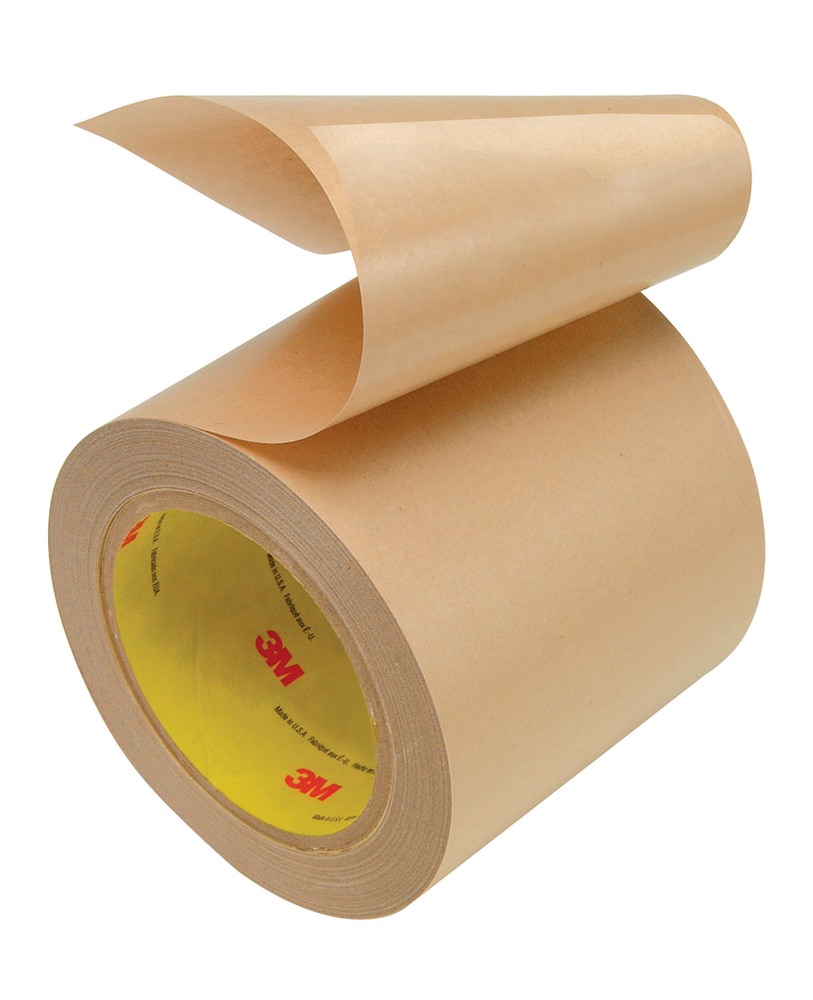

3M™ Electrically Conductive Adhesive Transfer Tape 9703, 24 in x 108 yds, 1 roll per case - 7010373888

SKU: 7010373888
MPN: 7010373888
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115238468
3M ID: 70006417243
5 Digit UPC: 23846
$12,381.18 each
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Adhesive Transfer Tape 9703 is a low-outgassing Z-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. It’s filled with silver conductive particles for interconnection of electronic substrates and can help enable Z-axis interconnects without shorting adjacent circuitry. Featuring high electrical conductivity, this double-sided tape provides low resistance for small contact areas and high frequencies. It provides robust protection against EMI in a range of market segments with low outgassing requirements, especially aerospace and defense.

Features

  • Can be applied as die-cut parts or in roll form
  • Anisotropic Z-axis electrical conductivity
  • Thermal curing not required
  • Low-outgassing acrylic adhesive
  • Easy to use in assembly operations
  • PSA tack properties
Spec Sheet



Downloads

Specifications

Shelf Life24.0 Month
Country of OriginUnited States
Electrical ResistanceZ-axis 0.01 Ω
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Liner MaterialPET
Overall Length (Metric)98.755
Total Tape Thickness without Liner (Metric) UOMmm
Adhesive TypeAcrylic
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric)0.05
Product UsageCamera Modules; Chassis; Flexible Printed Circuits; Printed Circuit Boards; Sensors
Maximum Operating Temperature (Fahrenheit)185.0 Degree Fahrenheit
Maximum Operating Temperature (Celsius)85.0 Degree Celsius
Overall Length (Imperial)108.0
ApplicationAttaching; Electrostatic Discharge (ESD); Grounding; Interconnecting
Overall Length (Imperial) UOMyd
Overall Width (Imperial)24.0
Overall Length (Metric) UOMm
Overall Width (Metric)609.6
Adhesion Strength (Imperial)907.0
Overall Width (Metric) UOMmm
Product ColorSilver
Total Tape Thickness without Liner (Imperial)2.0
