3M Products & Supplies

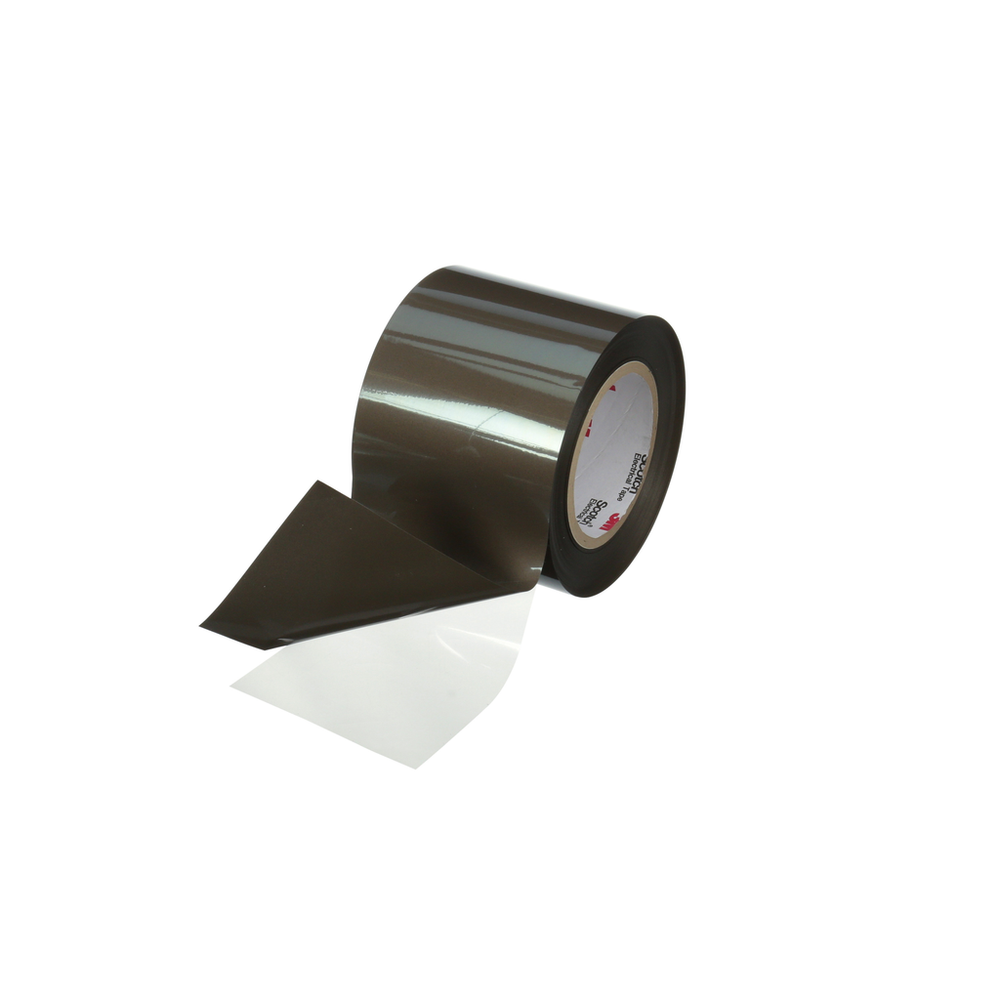

3M™ Electrically Conductive Double-Sided Tape 9711S-100, 1060 mm x 100 m, 100 µm - 7010532050

SKU: 7010532050
MPN: 7010532050
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051131121911
3M ID: WX300949004
5 Digit UPC: 12191
$7,760.68 each
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Double-Sided Tape 9711S is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. This double-sided conductive tape has a nickel/copper-coated conductive woven fabric carrier. It has very high electrical conductivity, which provides low resistance for small contact areas and high frequencies. This double-sided tape offers high adhesion and maintains low resistance over time, which provides excellent reliability in demanding environmental conditions. It brings robust protection against EMI in a range of market segments, including general electronics, consumer electronics, automotive, medical equipment, communications infrastructure, and aerospace and defense electronics.

Features

  • Thicker construction conforms to non-flat surfaces
  • Good handling and workability
  • Good EMI shielding in bond line gap
  • Isotropic XYZ-axis conductivity through the adhesive
  • Improved electrical contact to small-size areas
  • Excellent conformability and quick bonding
Spec Sheet



Downloads

Specifications

Shelf Life12.0 Month
Country of OriginSouth Korea
Overall Length (Imperial)109.361
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Overall Width (Metric)1060.0
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)185.0 Degree Fahrenheit
Liner MaterialPET
Adhesion Strength (Imperial)2000.0
Adhesive TypeAcrylic
ApplicationAttaching; Electrostatic Discharge (ESD); Grounding; Interconnecting; Passive Intermodulation (PIM) Management
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial)4.0
Electrical ResistanceXY-axis 0.2 Ω, Z-axis 0.05-0.1 Ω
Maximum Operating Temperature (Celsius)85.0 Degree Celsius
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Product ColorGray
Product UsageBond Line Gaps; Chassis; EMI Gaskets; Flexible Printed Circuits; Printed Circuit Boards; Sensors
Overall Width (Metric) UOMmm
Overall Width (Imperial)41.732
Overall Width (Imperial) UOMin
Backing (Carrier) MaterialWoven Fabric
Overall Length (Metric)100.0
Total Tape Thickness without Liner (Metric)0.1
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial) UOMmil
