3M Products & Supplies

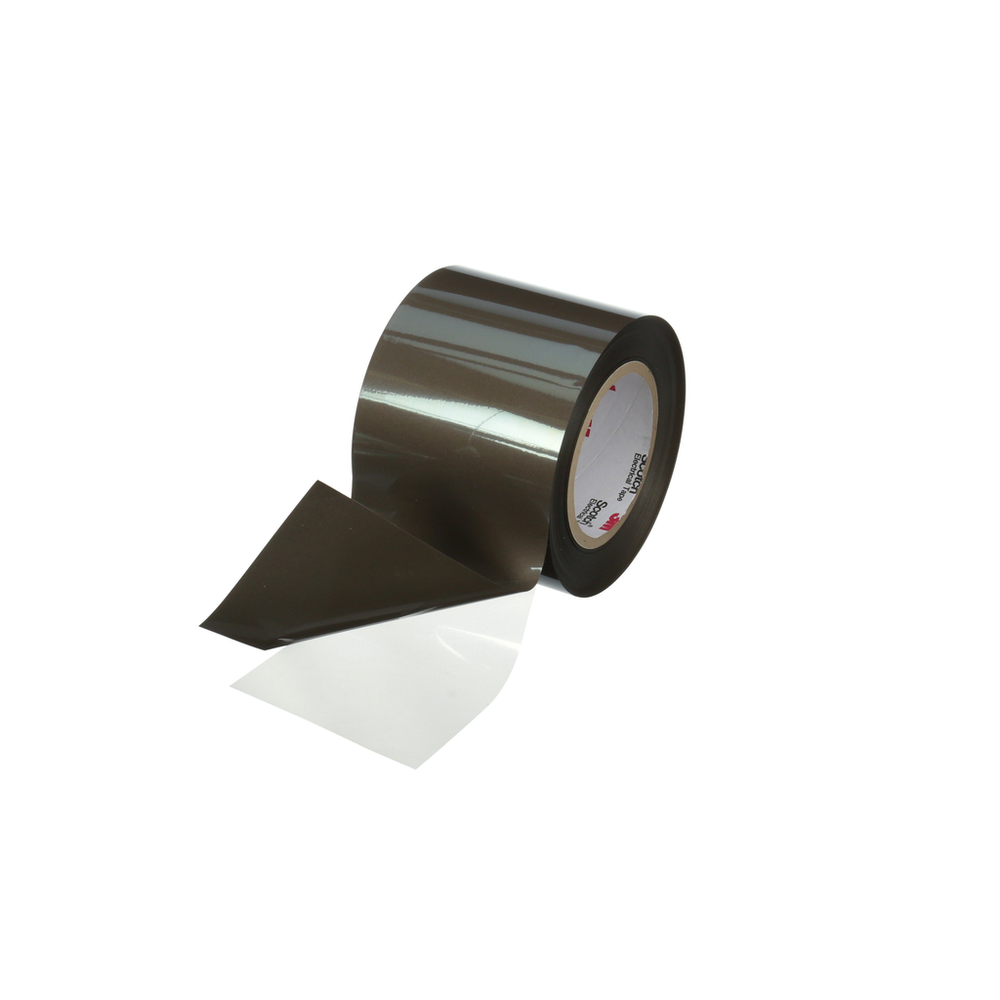

3M™ Electrically Conductive Double-Sided Tape 9711S, 300 mm x 10 m, 100um - 7100182974

SKU: 7100182974
MPN: 7100182974
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 18806080064746
3M ID: WX300926879
5 Digit UPC: 6474
$252.59 each
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Double-Sided Tape 9711S is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. This double-sided conductive tape has a nickel/copper-coated conductive woven fabric carrier. It has very high electrical conductivity, which provides low resistance for small contact areas and high frequencies. This double-sided tape offers high adhesion and maintains low resistance over time, which provides excellent reliability in demanding environmental conditions. It brings robust protection against EMI in a range of market segments, including general electronics, consumer electronics, automotive, medical equipment, communications infrastructure, and aerospace and defense electronics.

Features

  • Isotropic XYZ-axis conductivity through the adhesive
  • Thicker construction conforms to non-flat surfaces
  • Improved electrical contact to small-size areas
  • Excellent conformability and quick bonding
  • Good EMI shielding in bond line gap
  • Good handling and workability

Downloads

Specifications

Shelf Life12.0 Month
Country of OriginSouth Korea
ApplicationAttaching; Electrostatic Discharge (ESD); Grounding; Interconnecting; Passive Intermodulation (PIM) Management
Adhesion Strength (Imperial)2000.0
Electrical ResistanceXY-axis 0.2 Ω, Z-axis 0.05-0.1 Ω
Total Tape Thickness without Liner (Imperial)4.0
Overall Length (Metric) UOMm
Adhesive TypeAcrylic
Product ColorGray
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Overall Length (Imperial) UOMyd
Backing (Carrier) MaterialWoven Fabric
Overall Width (Metric)300.0
Total Tape Thickness without Liner (Metric)0.1
Overall Length (Metric)10.0
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Celsius)85.0 Degree Celsius
Overall Length (Imperial)10.936
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)185.0 Degree Fahrenheit
Overall Width (Imperial)11.811
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric) UOMmm
Liner MaterialPET
Product UsageBond Line Gaps; Chassis; EMI Gaskets; Flexible Printed Circuits; Printed Circuit Boards; Sensors
