3M Products & Supplies

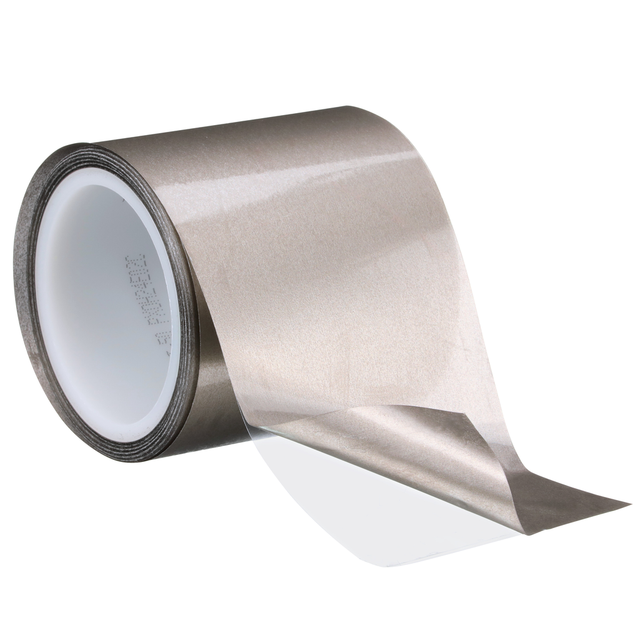

3M ™ Electrically Conductive Double-Sided Tape 9772-50, 500 mm x 30 m, 1 Roll/Case - 7100313618

SKU: 7100313618
MPN: 7100313618
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060428332
3M ID: 80001605320
$1,163.82 each
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Double-Sided Tape 9772 Series is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. It consists of a conductive copper foil matrix carrier, a conductive acrylic adhesive, and a polyester (PET) release liner on the top and bottom. This thin, reliable copper shielding tape has high XY-axis electrical resistance compared to other standard double-sided conductive tapes. It offers excellent conformability, good EMI shielding in the bond line gap and excellent electrical contact to small-size grounding areas. The conductive acrylic-based adhesive provides high adhesion, especially for a thin double-sided tape.

Features

  • Excellent XY-axis electrical resistance
  • Good EMI shielding in the bond line gap
  • Isotropic XYZ-axis conductivity through the adhesive
  • Conformable and bonds quickly
  • Improved electrical contact to small-size areas
  • Thin profile

Downloads

Specifications

Shelf Life12.0 Month
Country of OriginSouth Korea
Overall Length (Imperial)32.808
Liner MaterialPET
Backing (Carrier) MaterialCopper Foil
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial) UOMyd
Overall Length (Metric) UOMm
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Adhesive TypeAcrylic
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Overall Width (Imperial) UOMin
Product ColorGold
Overall Length (Metric)30.0
Total Tape Thickness without Liner (Imperial)2.0
Total Tape Thickness without Liner (Metric)0.05
ApplicationAttaching; Electrostatic Discharge (ESD); Grounding; Interconnecting; Passive Intermodulation (PIM) Management
Maximum Operating Temperature (Celsius)121.0 Degree Celsius
Adhesion Strength (Imperial)1000.0
Total Tape Thickness without Liner (Imperial) UOMmil
Product UsageChassis; EMI Gaskets; EMI Shields; Flexible Printed Circuits; Sensors
Overall Width (Metric) UOMmm
Electrical ResistanceXY-axis 0.015 Ω
Overall Width (Imperial)19.685
Maximum Operating Temperature (Fahrenheit)250.0 Degree Fahrenheit
Overall Width (Metric)500.0
