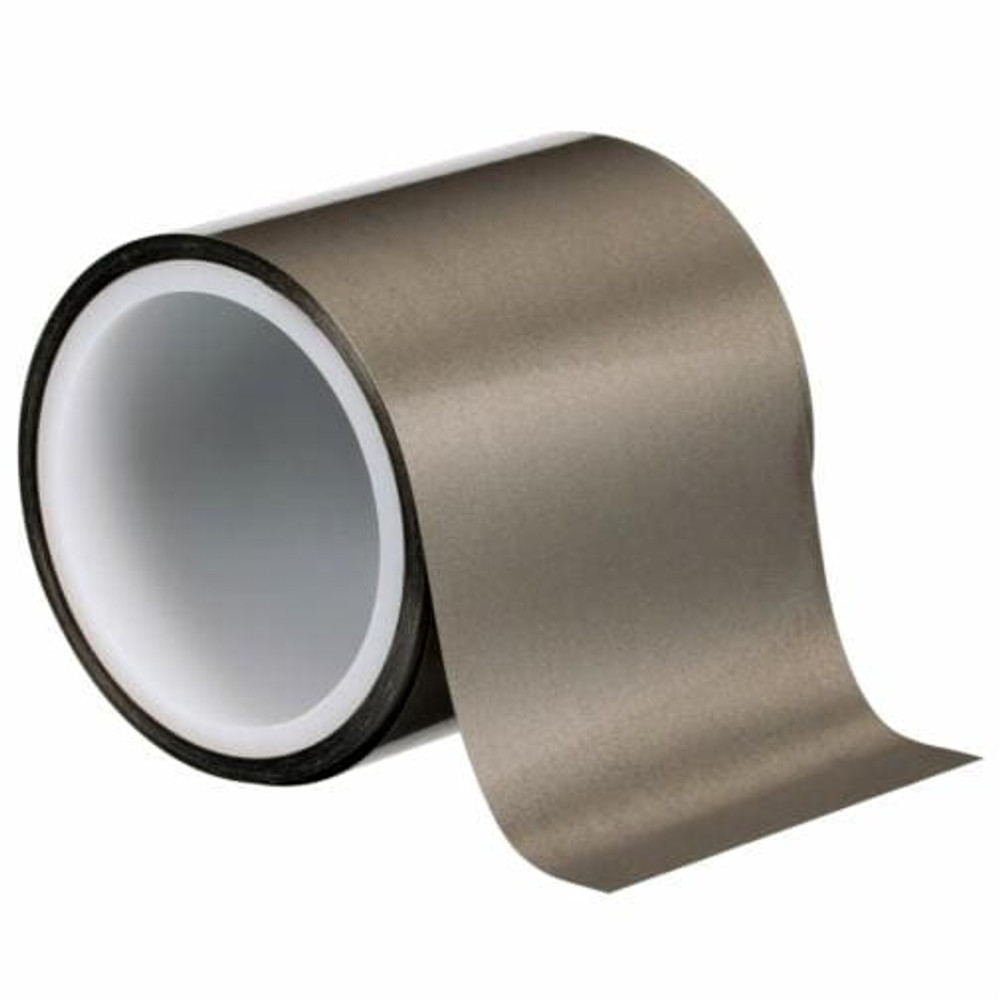

3M™ Electrically Conductive Single-Sided Tape 5113SFT-50, 1080 mm x 120 m, 1 Roll/Case, Untrimmed - 7100313870

SKU: 7100313870
MPN: 7100313870
For an accurate lead time please contact us
UPC: 06912504327436
3M ID: XP003846886
$6,313.92 each
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Single-Sided Tape 5113SFT is an electrically conductive single-sided fabric tape (SFT) that provides high adhesion, low electrical resistance, long shelf life, resistance to high temperature and humidity, and excellent grounding and shielding performance. This EMI tape features a proprietary polyolefin XYZ-axis conductive pressure-sensitive adhesive (CPSA) and a conductive matrix carrier (a nickel/copper/nickel-coated conductive woven carrier). This grounding tape provides excellent adhesion to a variety of substrates including metals and plastics and helps control signal interference through passive intermodulation (PIM) mitigation for higher signal integrity and performance. This one-sided fabric tape helps protect against EMI in a range of market segments, including general industrial electronics, aerospace and defense electronics, appliances, automotive electronics and IoT devices, communications infrastructure, and medical equipment.

Features

  • High adhesion for reliable electrical contact to many substrates including select low-surface-energy substrates
  • Long-term performance at high temperatures (105 ˚C) for demanding applications
  • Excellent EMI shielding in bond line gap
  • Excellent grounding with small contact areas for microelectronics
  • Four-year shelf life for reliable, consistent performance over time
  • Isotropic XYZ-axis conductivity through the adhesive
Spec Sheet



Downloads

Specifications

Shelf Life48.0 Month
Country of OriginChina
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit)250.0 Degree Fahrenheit
Overall Length (Imperial) UOMyd
Backing (Carrier) MaterialWoven Fabric
Overall Width (Imperial) UOMin
Adhesion Strength (Imperial)1500.0
Adhesive TypePolyolefin
Total Tape Thickness without Liner (Imperial)2.0
Electrical ResistanceXY-axis 0.01 Ω, Z-axis 0.03 Ω
Overall Width (Metric)1080.0
ApplicationEMI Shielding; Electrostatic Discharge (ESD); Passive Intermodulation (PIM) Management
Overall Length (Metric) UOMm
Product UsageCamera Modules; Display Chip on Flex; Display Wraps; EMI Shields; Sensors
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Product ColorGray
Total Tape Thickness without Liner (Metric)0.05
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric)120.0
Maximum Operating Temperature (Celsius)121.0 Degree Celsius
Overall Length (Imperial)131.234
Overall Width (Imperial)42.52
Liner MaterialPET
Overall Width (Metric) UOMmm
