3M Products & Supplies

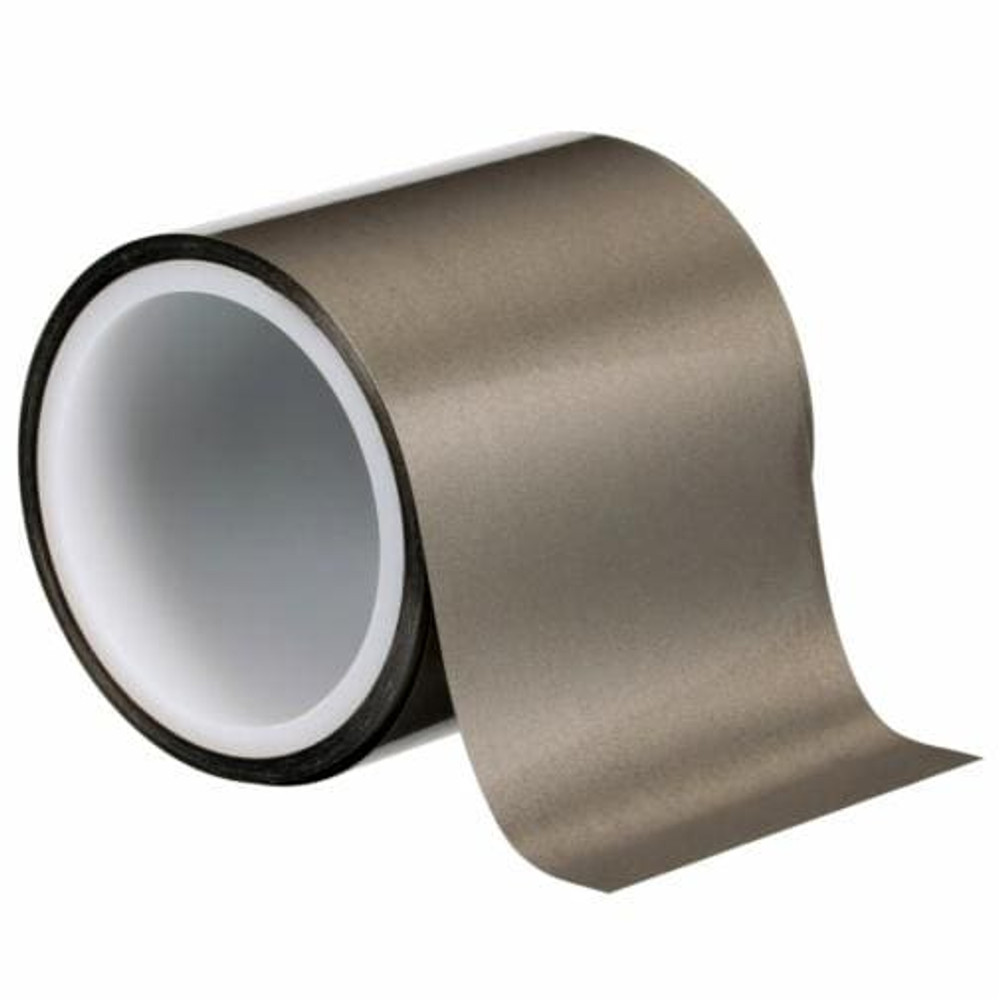

3M™ Electrically Conductive Single-Sided Tape 5113SFT-50, Grey, 25 mm x 10 m, 12 Rolls/Case - 7100313609

Sold As: 12-Pack
SKU: 7100313609
MPN: 7100313609
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00068060428295
3M ID: 80001605239
$255.63 ($21.30 / Count)
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Single-Sided Tape 5113SFT is an electrically conductive single-sided fabric tape (SFT) that provides high adhesion, low electrical resistance, long shelf life, resistance to high temperature and humidity, and excellent grounding and shielding performance. This EMI tape features a proprietary polyolefin XYZ-axis conductive pressure-sensitive adhesive (CPSA) and a conductive matrix carrier (a nickel/copper/nickel-coated conductive woven carrier). This grounding tape provides excellent adhesion to a variety of substrates including metals and plastics and helps control signal interference through passive intermodulation (PIM) mitigation for higher signal integrity and performance. This one-sided fabric tape helps protect against EMI in a range of market segments, including general industrial electronics, aerospace and defense electronics, appliances, automotive electronics and IoT devices, communications infrastructure, and medical equipment.

Features

  • Excellent grounding with small contact areas for microelectronics
  • High adhesion for reliable electrical contact to many substrates including select low-surface-energy substrates
  • Long-term performance at high temperatures (105 ˚C) for demanding applications
  • Isotropic XYZ-axis conductivity through the adhesive
  • Four-year shelf life for reliable, consistent performance over time
  • Excellent EMI shielding in bond line gap
Spec Sheet



Downloads

Specifications

Shelf Life48.0 Month
Country of OriginChina
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Celsius)121.0 Degree Celsius
Electrical ResistanceXY-axis 0.01 Ω, Z-axis 0.03 Ω
Maximum Operating Temperature (Fahrenheit)250.0 Degree Fahrenheit
Overall Length (Imperial)10.936
Overall Length (Metric)10.0
Overall Width (Metric) UOMmm
Overall Width (Imperial)0.984
Adhesive TypePolyolefin
Total Tape Thickness without Liner (Imperial)2.0
Total Tape Thickness without Liner (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Product UsageCamera Modules; Display Chip on Flex; Display Wraps; EMI Shields; Sensors
Product ColorGray
Liner MaterialPET
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Adhesion Strength (Imperial)1500.0
Overall Width (Imperial) UOMin
Overall Width (Metric)25.0
Overall Length (Metric) UOMm
ApplicationEMI Shielding; Electrostatic Discharge (ESD); Passive Intermodulation (PIM) Management
Backing (Carrier) MaterialWoven Fabric
Total Tape Thickness without Liner (Metric)0.05
