3M Products & Supplies

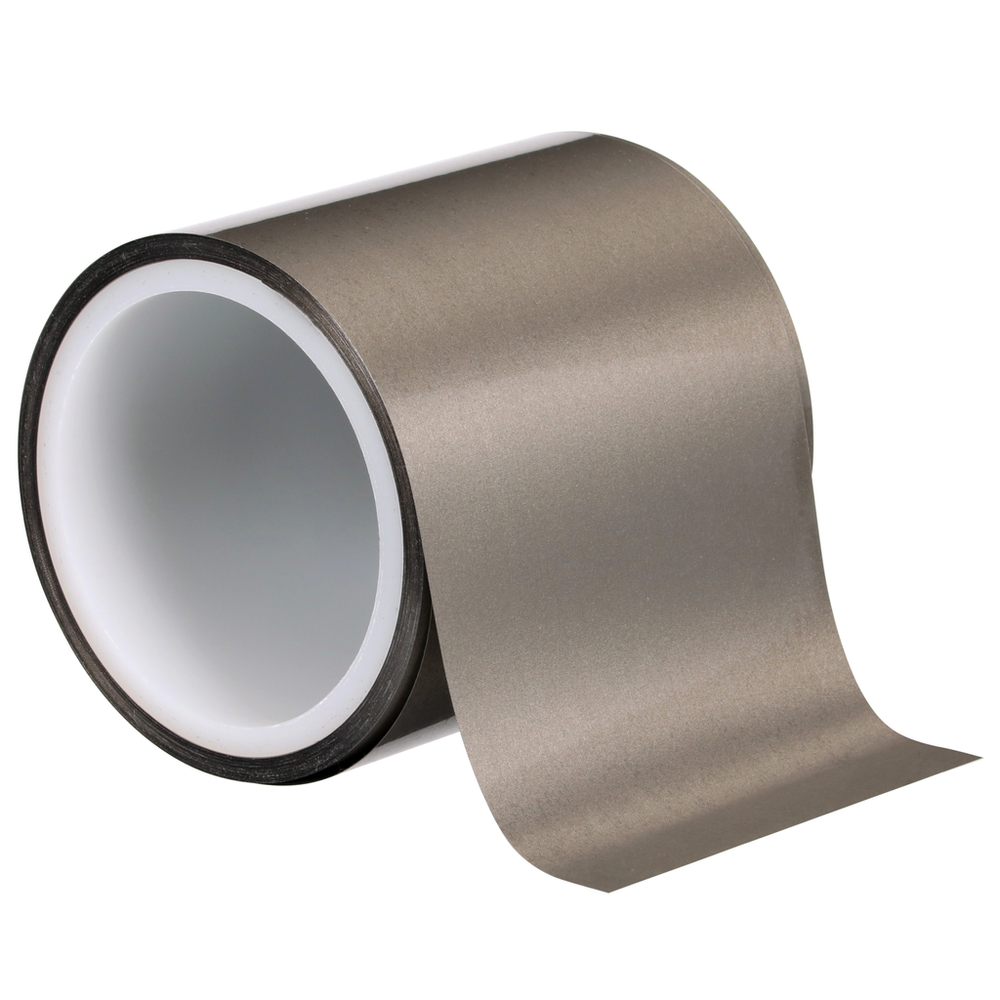

3M™ Electrically Conductive Single-Sided Tape 5113SFT-50, Grey, 25 mm x 30 m, 8 Rolls/Case - 7100313610

Sold As: 8-Pack
SKU: 7100313610
MPN: 7100313610
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00068060428301
3M ID: 80001605247
$436.01 ($54.50 / Count)
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Single-Sided Tape 5113SFT is an electrically conductive single-sided fabric tape (SFT) that provides high adhesion, low electrical resistance, long shelf life, resistance to high temperature and humidity, and excellent grounding and shielding performance. This EMI tape features a proprietary polyolefin XYZ-axis conductive pressure-sensitive adhesive (CPSA) and a conductive matrix carrier (a nickel/copper/nickel-coated conductive woven carrier). This grounding tape provides excellent adhesion to a variety of substrates including metals and plastics and helps control signal interference through passive intermodulation (PIM) mitigation for higher signal integrity and performance. This one-sided fabric tape helps protect against EMI in a range of market segments, including general industrial electronics, aerospace and defense electronics, appliances, automotive electronics and IoT devices, communications infrastructure, and medical equipment.

Features

  • Isotropic XYZ-axis conductivity through the adhesive
  • Excellent grounding with small contact areas for microelectronics
  • Long-term performance at high temperatures (105 ˚C) for demanding applications
  • Excellent EMI shielding in bond line gap
  • Four-year shelf life for reliable, consistent performance over time
  • High adhesion for reliable electrical contact to many substrates including select low-surface-energy substrates
Spec Sheet



Downloads

Specifications

Shelf Life48.0 Month
Country of OriginChina
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMyd
Overall Length (Metric) UOMm
Overall Length (Imperial)32.808
Maximum Operating Temperature (Fahrenheit)250.0 Degree Fahrenheit
Liner MaterialPET
Overall Length (Metric)30.0
Total Tape Thickness without Liner (Imperial)2.0
Maximum Operating Temperature (Celsius)121.0 Degree Celsius
Electrical ResistanceXY-axis 0.01 Ω, Z-axis 0.03 Ω
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Total Tape Thickness without Liner (Metric) UOMmm
Adhesion Strength (Imperial)1500.0
Product UsageCamera Modules; Display Chip on Flex; Display Wraps; EMI Shields; Sensors
Adhesive TypePolyolefin
Backing (Carrier) MaterialWoven Fabric
Overall Width (Metric)25.0
Product ColorGray
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric) UOMmm
ApplicationEMI Shielding; Electrostatic Discharge (ESD); Passive Intermodulation (PIM) Management
Total Tape Thickness without Liner (Metric)0.05
Overall Width (Imperial)0.984
