3M Products & Supplies

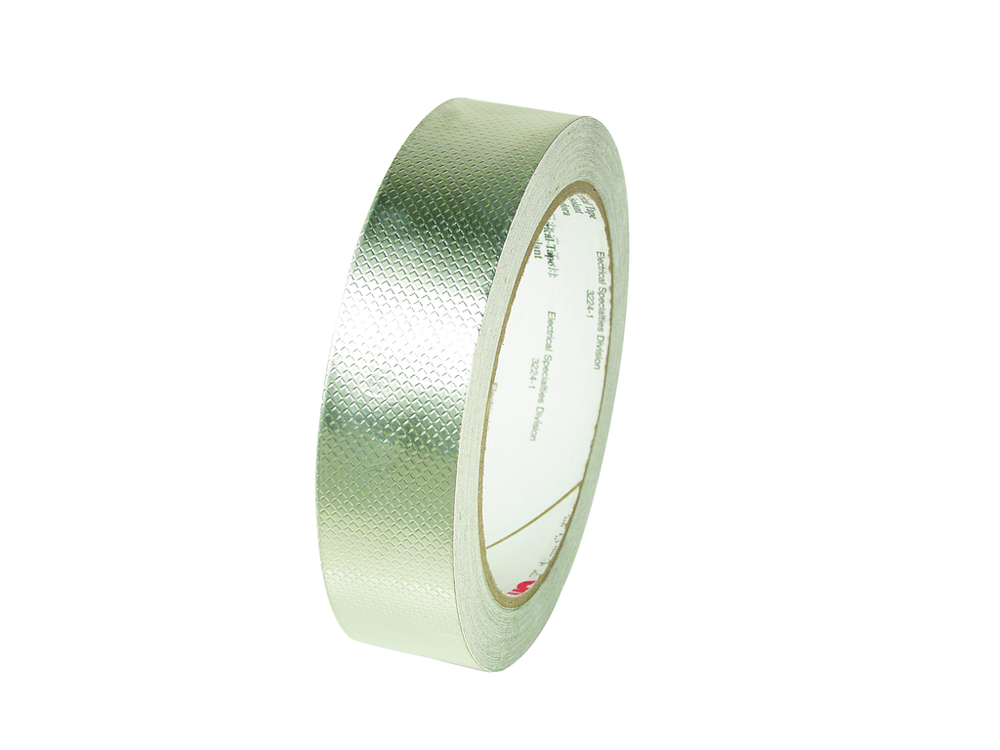

3M™ Embossed Tin-Plated Copper Foil EMI Shielding Tape 1345, 2 in x 18 yd, 3 in Paper Core, 6 Rolls/Case - 7010398766

Sold As: 12-Pack
SKU: 7010398766
MPN: 7010398766
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138495862
3M ID: 80610881650
5 Digit UPC: 49586
$2,518.69 ($209.89 / Count)
Hurry up! Current stock:

Product Description

3M™ Embossed Tin Plated Copper EMI Shielding Tape 1345 is an EMI shielding tape with an acrylic adhesive. This flame retardant tape is designed for applications that require outstanding electrical conductivity from the application substrate through the adhesive to the backing. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • Embossed backing cuts through the layer of adhesive for establishing contact between the backing and the application substrate
  • Offers stable contact resistance and good shielding effectiveness
  • Embossed, copper foil backing resists discoloration and oxidation
  • Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
  • Flame-retardant and suitable for grounding and EMI shielding in equipment, components and shielded rooms
  • Offers outstanding solderability with tin-plated coating

Specifications

Shelf Life1825
Country of OriginTaiwan
Backing (Carrier) Thickness (Metric)0.035
Overall Width (Metric) UOMmm
Product MarketsElectrical Equipment Manufacturing
Shelf Life UOMYear
Backing (Carrier) Thickness (Imperial)1.4
Adhesive TypeAcrylic
Backing (Carrier) Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Metric)0.1016
Tensile Strength (Metric) UOMN/cm
Specifications MetRoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
Overall Width (Metric)50.8
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)2.0
Backing (Carrier) Thickness (Imperial) UOMmil
Elongation at Break100
Backing (Carrier) MaterialTin Plate Copper Foil, Embossed
Product ColorTin
Tensile Strength (Metric)44.0
Maximum Operating Temperature (Celsius)130.0
MaterialEmbossed Tin Plated Copper Foil
Tape GradeProfessional
ApplicationShielding
