3M Products & Supplies

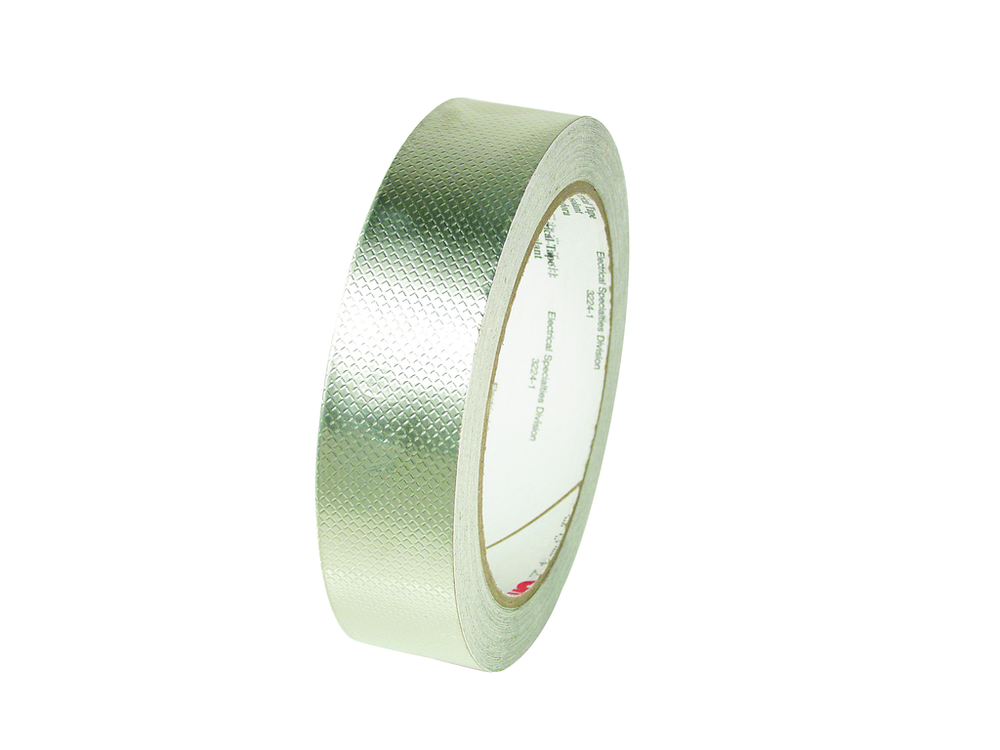

3M™ Embossed Tin-Plated Copper Foil EMI Shielding Tape 1345, 6 in x 18 yd, 3 in Paper Core, 2 Rolls/Case - 7010297658

Sold As: 2-Pack
SKU: 7010297658
MPN: 7010297658
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051135895221
3M ID: 80611028830
5 Digit UPC: 89522
$1,144.78 ($572.39 / Count)
Hurry up! Current stock:

Product Description

3M™ Embossed Tin Plated Copper EMI Shielding Tape 1345 is an EMI shielding tape with an acrylic adhesive. This flame retardant tape is designed for applications that require outstanding electrical conductivity from the application substrate through the adhesive to the backing. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • Embossed, copper foil backing resists discoloration and oxidation
  • Offers outstanding solderability with tin-plated coating
  • Embossed backing cuts through the layer of adhesive for establishing contact between the backing and the application substrate
  • Offers stable contact resistance and good shielding effectiveness
  • Flame-retardant and suitable for grounding and EMI shielding in equipment, components and shielded rooms
  • Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)

Specifications

Shelf Life1825
Country of OriginTaiwan
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Tensile Strength (Metric) UOMN/cm
Backing (Carrier) MaterialTin Plate Copper Foil, Embossed
Adhesive TypeAcrylic
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Celsius)130.0
Tensile Strength (Metric)44.0
Tape GradeProfessional
Backing (Carrier) Thickness (Metric)0.035
Product ColorTin
ApplicationShielding
Shelf Life UOMYear
Elongation at Break100
Overall Width (Imperial)6.0
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Metric) UOMmm
Specifications MetRoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
Total Tape Thickness without Liner (Metric)0.1016
Backing (Carrier) Thickness (Imperial)1.4
Overall Width (Metric)152.4
Product MarketsElectrical Equipment Manufacturing
MaterialEmbossed Tin Plated Copper Foil
Maximum Operating Temperature (Celsius) UOMDegree
