3M Products & Supplies

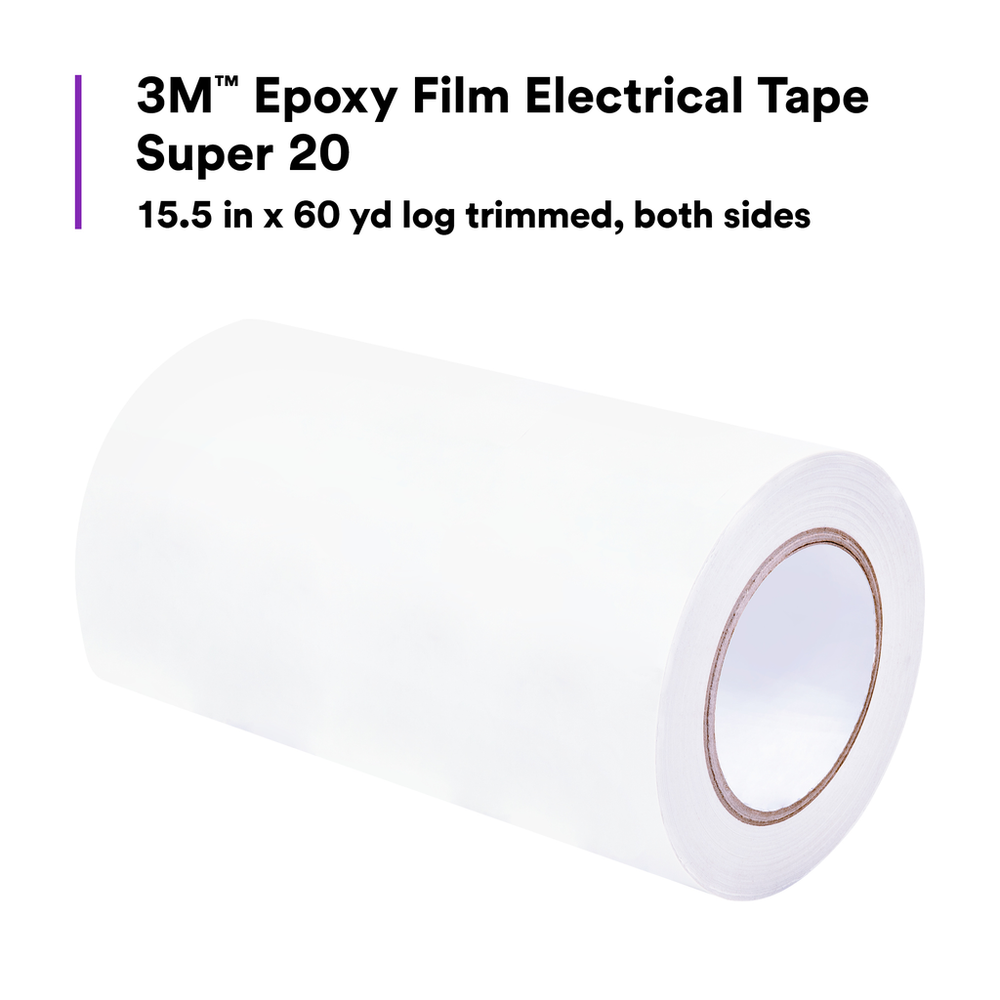

3M™ Epoxy Film Electrical Tape Super 20, 15.5 in X 60 yd log trimmed, both sides, 1 Roll/Case - 7000031666

SKU: 7000031666
MPN: 7000031666
For an accurate lead time please contact us
UPC: 00051138692087
3M ID: 80611207996
5 Digit UPC: 69208
$1,355.99 each
Hurry up! Current stock:

Product Description

3M™ Epoxy Film Electrical Tape Super 20 is a 5 mil thick, high dielectric electrical tape. This flame retardant tape is used as a coil cover, anchor, harnessing, banding, core, layer and crossover insulation. This tape is 600V rated and withstands a temperature range of 32 to 311 °F (0 to 155 °C).

Features

  • The combination of the acrylic adhesive and the epoxy film backing provides excellent adherence and electrical properties
  • Suitable for use in transformers, coils, stick-wound coils, wrapping relays and bobbin-wound, sub-fractional horsepower, shaded-pole motors
  • Withstands a temperature range of 32 to 311 °F (0 to 155 °C)
  • Flame-retardant and highly resistant to heat, oxidation, solvents and oils
  • UL Listed and RoHS 2011/65/EU Compliant
  • Printable

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Insulation Resistance1 x 10^6 megohms
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius)0.0
Adhesive TypeAcrylic
Dielectric Strength8000.0
Tensile Strength (Metric) UOMN/cm
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)155.0
Overall Length (Imperial)60.0
Total Tape Thickness without Liner (Metric) UOMmm
Specifications MetRoHS 2011/65/EU, UL 510, UL Listed
Total Tape Thickness without Liner (Imperial)5.0
Overall Length (Imperial) UOMyd
ApplicationInsulation
Tensile Strength (Metric)79.0
Shelf Life UOMYear
Overall Length (Metric) UOMm
Overall Width (Metric)394.0
Product ColorCream
Backing (Carrier) MaterialEpoxy
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric)0.127
Dielectric Strength UOMV
Backing (Carrier) Thickness (Metric)0.089
Overall Length (Metric)55.0
Electrolytic Corrosion Factor1.0
Overall Width (Imperial)15.512
Overall Width (Metric) UOMmm
Elongation at Break120
