3M Products & Supplies

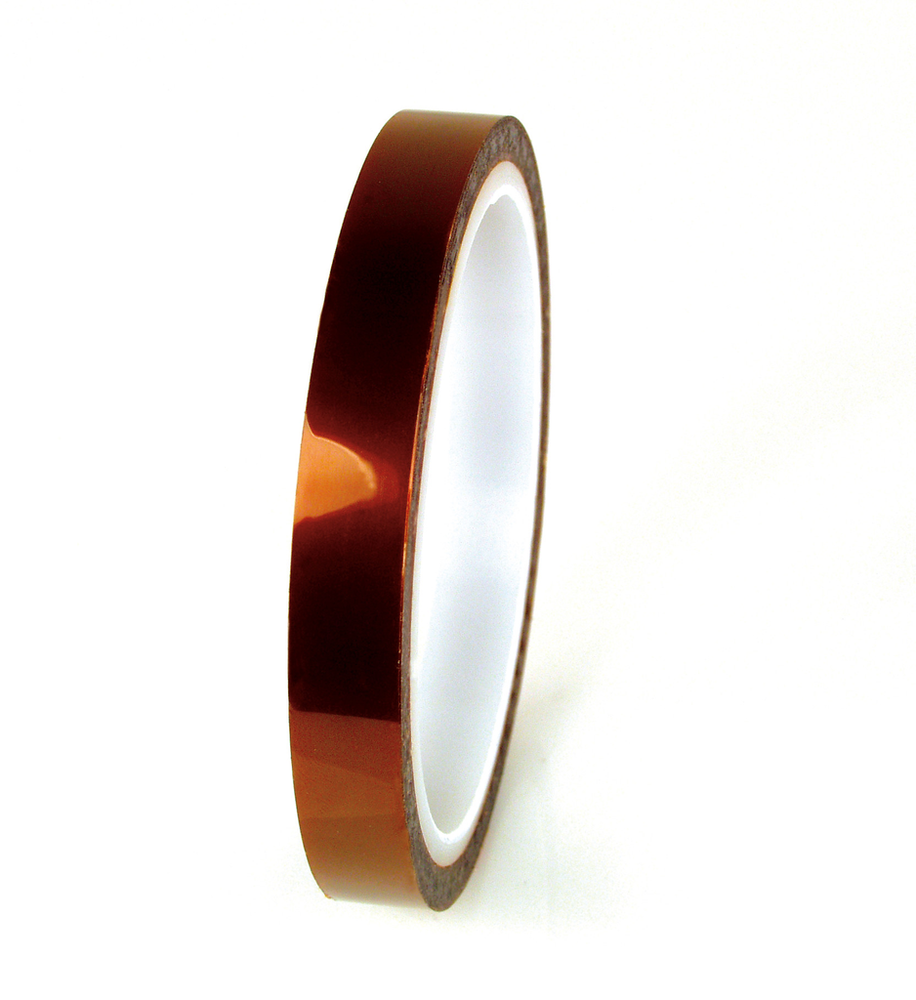

3M™ Polyimide Film Electrical Tape 1218, Amber, log rolls, 1 in x 36 yd, 9 Rolls/Case - 7010349606

Sold As: 9-Pack
SKU: 7010349606
MPN: 7010349606
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128568675
3M ID: 80611434574
5 Digit UPC: 56867
$702.58 ($78.06 / Count)
Hurry up! Current stock:

Product Description

3M™ Tape 1218 is an electrical tape that's suitable for high temperature, electrical applications that require thin, insulating material for wrapping capacitors, coils and harnesses. This tape has a polyimide film backing that offers exceptional heat and solvent resistance. This tape is 600V rated and withstands temperatures up to 356 °F (180 °C).

Features

  • Polyamide film backing provides exceptional heat and solvent resistance
  • Suitable for coils, harnesses and capacitor applications
  • UL Listed and RoHS 2011/65/EU Compliant
  • Flame-retardant
  • Acrylic adhesive offers excellent adherence
  • Withstands temperatures up to 356 °F (180 °C)

Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Product ColorAmber
Overall Width (Imperial) UOMin
Adhesive TypeAcrylic
Maximum Operating Temperature (Fahrenheit)356.0
Electrolytic Corrosion Factor1
Minimum Operating Temperature (Fahrenheit) UOMDegree
Dielectric Strength UOMV
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)36.0
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Metric)0.08
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)25.4
Product MarketsElectrical Equipment Manufacturing
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Imperial)1.0
Dielectric Strength6000.0
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Celsius)0.0
Minimum Operating Temperature (Celsius) UOMDegree
Adhesive MaterialAcrylic
Elongation at Break55%
Backing (Carrier) MaterialPolyimide Film
Minimum Operating Temperature (Fahrenheit)32.0
Overall Length (Metric)33.0
Specifications MetRoHS 2011/65/EU, UL Recognized
Total Tape Thickness without Liner (Imperial)3.15
Insulation Resistance1 x 10^6 megohms
Maximum Operating Temperature (Celsius)180.0
