3M Products & Supplies

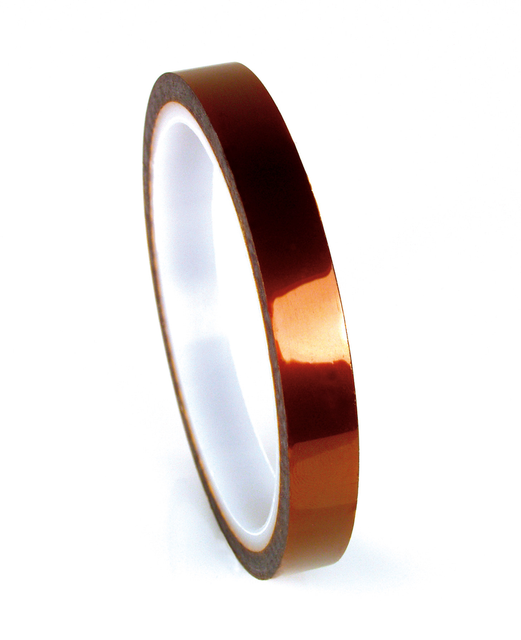

3M™ Polyimide Film Electrical Tape 98C-1, 1 X 36 yds, 9 Rolls/Case - 7010400142

Sold As: 9-Pack
SKU: 7010400142
MPN: 7010400142
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128595299
3M ID: 80611471881
5 Digit UPC: 59529
$653.97 ($72.66 / Count)
Hurry up! Current stock:

Product Description

3M™ Polyimide Film Electrical Tape 98C-1 is an amber UL recognized flame retardant, 2.6-mil (0.066 mm) thick tape composed of a 1-mil (0.025 mm) thick polyimide film backing coated on one side with a non-corrosive, silicone pressure-sensitive adhesive

Features

  • Pressure-sensitive silicone adhesive with polyimide film backing
  • RoHS Compliant
  • UL Recognized flame retardant
  • 1.5 year shelf-life when stored per 3M recommended conditions
  • Nominal thickness: 0.066 mm (2.6 mil)
  • UL Recognized 220°C temperature rating

Specifications

Shelf Life1095
Country of OriginChina
Overall Width (Imperial) UOMin
Overall Width (Imperial)1.0
Maximum Operating Temperature (Celsius) UOMDegree
Insulation Resistance> 10^6 megohms
Specifications MetRoHS 2011/65/EU
Adhesive TypeSilicone
Total Tape Thickness without Liner (Imperial)2.6
Elongation at Break40%
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric)25.4
Overall Width (Metric) UOMmm
Adhesive MaterialThermosetting Silicone
ApplicationInsulation
Total Tape Thickness without Liner (Metric) UOMmm
Product ColorAmber
Total Tape Thickness without Liner (Metric)0.066
Dielectric Strength UOMV
Dielectric Strength6000.0
Maximum Operating Temperature (Celsius)220.0
Electrolytic Corrosion Factor1.0
Backing (Carrier) MaterialPolyimide Film
Shelf Life UOMYear
