3M Products & Supplies

3M™ Polyimide Film Electrical Tape 98C-1, 1/2 in X 36 yds, 24 Rolls/Case - 7010321042

Sold As: 24-Pack
SKU: 7010321042
MPN: 7010321042
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128602768
3M ID: 80611605389
5 Digit UPC: 60276
$880.50 ($36.69 / Count)
Hurry up! Current stock:

Product Description

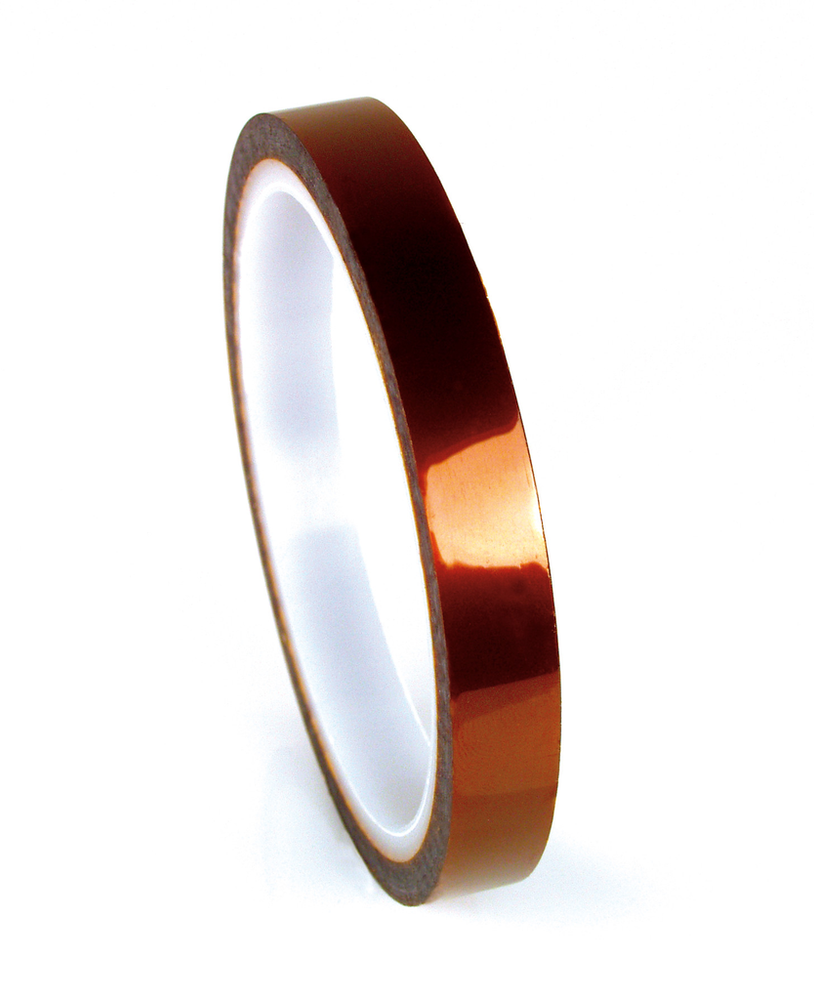

3M™ Polyimide Film Electrical Tape 98C-1 is an amber UL recognized flame retardant, 2.6-mil (0.066 mm) thick tape composed of a 1-mil (0.025 mm) thick polyimide film backing coated on one side with a non-corrosive, silicone pressure-sensitive adhesive

Features

  • UL Recognized flame retardant
  • UL Recognized 220°C temperature rating
  • Nominal thickness: 0.066 mm (2.6 mil)
  • 1.5 year shelf-life when stored per 3M recommended conditions
  • RoHS Compliant
  • Pressure-sensitive silicone adhesive with polyimide film backing

Specifications

Shelf Life1095
Country of OriginChina
Electrolytic Corrosion Factor1.0
Overall Width (Imperial)0.5
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial) UOMmil
Specifications MetRoHS 2011/65/EU
Overall Width (Metric) UOMmm
Overall Width (Metric)12.7
Total Tape Thickness without Liner (Metric) UOMmm
Product ColorAmber
Adhesive MaterialThermosetting Silicone
Total Tape Thickness without Liner (Metric)0.066
ApplicationInsulation
Insulation Resistance> 10^6 megohms
Maximum Operating Temperature (Celsius)220.0
Adhesive TypeSilicone
Dielectric Strength UOMV
Elongation at Break40%
Overall Width (Imperial) UOMin
Dielectric Strength6000.0
Backing (Carrier) MaterialPolyimide Film
Total Tape Thickness without Liner (Imperial)2.6
Shelf Life UOMYear
