3M Products & Supplies

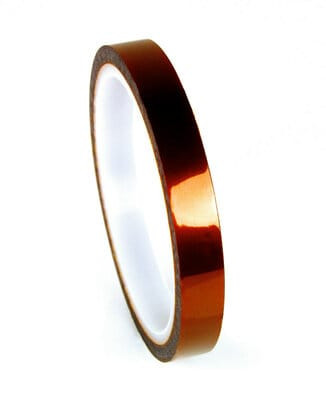

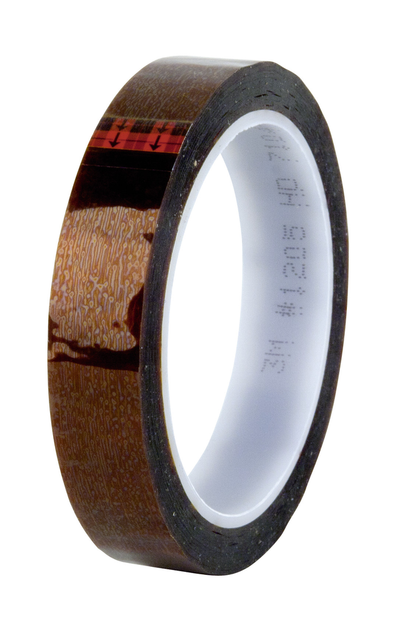

3M™ Polyimide Film Electrical Tape 98C-1, 500 mm x 33 m, 1 Roll/Case - 7000038309

SKU: 7000038309
MPN: 7000038309
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 04046719148240
3M ID: XB003875399
5 Digit UPC: 14824
$1,081.29 each
Hurry up! Current stock:

Product Description

3M™ Polyimide Film Electrical Tape 98C-1 is an amber UL recognized flame retardant, 2.6-mil (0.066 mm) thick tape composed of a 1-mil (0.025 mm) thick polyimide film backing coated on one side with a non-corrosive, silicone pressure-sensitive adhesive

Features

  • UL Recognized 220°C temperature rating
  • UL Recognized flame retardant
  • Nominal thickness: 0.066 mm (2.6 mil)
  • RoHS Compliant
  • Pressure-sensitive silicone adhesive with polyimide film backing
  • 1.5 year shelf-life when stored per 3M recommended conditions

Specifications

Shelf Life365
Country of OriginChina
Product ColorAmber
Dielectric Strength6000.0
Electrolytic Corrosion Factor1
Overall Width (Imperial) UOMin
Adhesive MaterialThermosetting Silicone
Overall Width (Metric)500.0
Backing (Carrier) Thickness (Metric) UOMmm
Overall Length (Imperial) UOMyd
Elongation at Break40%
Backing (Carrier) Thickness (Metric)0.025
Overall Width (Imperial)15.5
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Celsius)220.0
Adhesive TypeSilicone
Backing (Carrier) MaterialPolyimide Film
Total Tape Thickness without Liner (Metric)0.066
ApplicationInsulation
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric) UOMmm
Overall Length (Metric)33.0
Shelf Life UOMYear
Insulation Resistance> 10^6 megohms
Total Tape Thickness without Liner (Imperial) UOMmil
Dielectric Strength UOMV
Total Tape Thickness without Liner (Imperial)2.6
Overall Length (Metric) UOMm
Overall Length (Imperial)36.0
Specifications MetRoHS 2011/65/EU, UL 510, UL Listed
