3M Products & Supplies

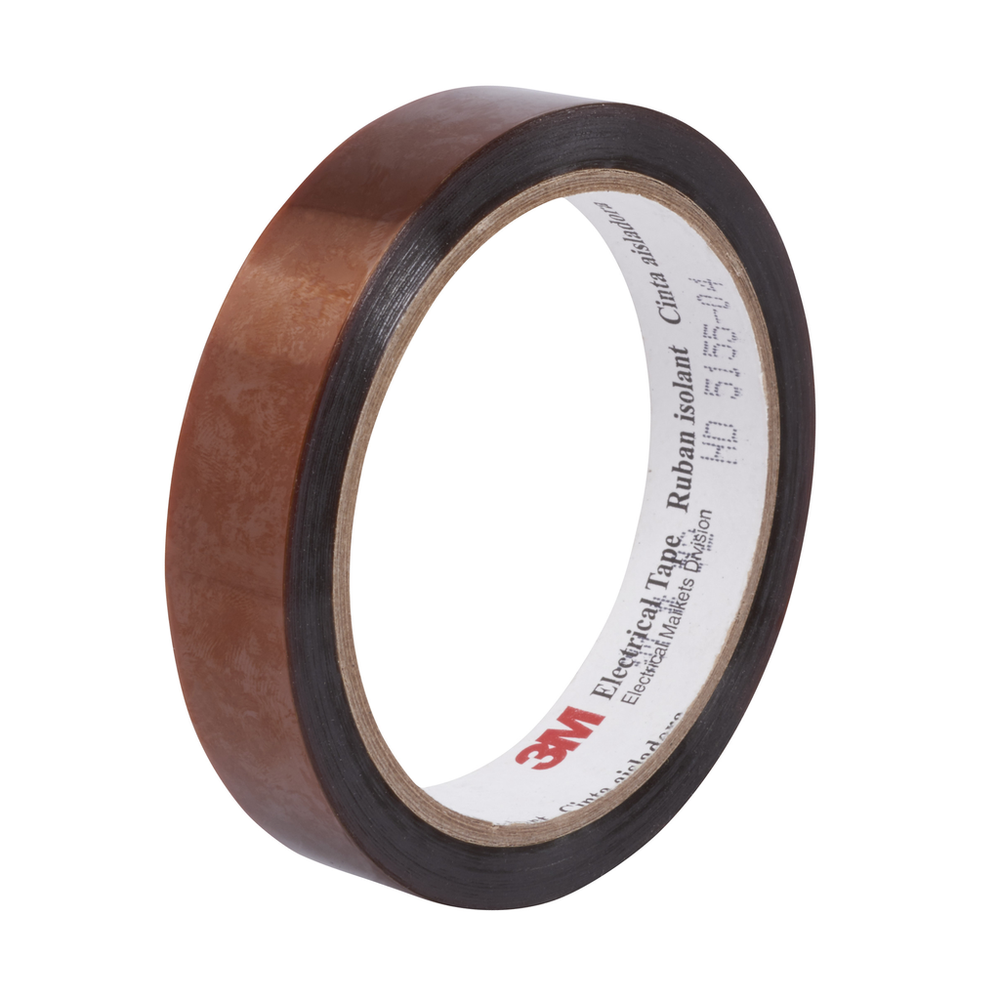

3M™ Polyimide Film Electrical Tape 92, 19 mm x 33 m, 12 Rolls/Case - 7100033907

Sold As: 12-Pack
SKU: 7100033907
MPN: 7100033907
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00076308622688
3M ID: 80000207755
5 Digit UPC: 62268
$757.87 ($63.16 / Count)
Hurry up! Current stock:

Product Description

3M™ Tape 92 is a high performance, electrical tape with a polyimide film backing. This tape is designed to provide thick insulation for coils, harnesses and capacitors. The flame retardant tape withstands a temperature range of 0°C to 180°C (32 to 356 °F).

Features

  • Designed for anchoring leads and terminal boards
  • Highly conformable with a pressure-sensitive, silicone adhesive
  • Flame-retardant and has polyamide backing
  • Withstands a temperature rating of 0°C to 180°C
  • UL Listed and RoHS Compliant
  • Suitable for use as wave solder masking tape in a printed circuit board assembly
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Total Tape Thickness without Liner (Metric)0.07
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial)0.75
Elongation at Break40%
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Celsius)-40.0
Product MarketsElectrical Equipment Manufacturing
Overall Length (Imperial)36.0
Total Tape Thickness without Liner (Imperial)2.75
Electrolytic Corrosion Factor1.0
ApplicationInsulation
Dielectric Strength UOMV
Overall Width (Metric)19.05
Adhesive TypeSilicone
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)33.0
Overall Length (Metric) UOMm
Minimum Operating Temperature (Celsius) UOMDegree
Dielectric Strength7500.0
Tensile Strength (Metric)53.0
Product ColorAmber
Maximum Operating Temperature (Fahrenheit)356.0
Specifications MetRoHS 2011/65/EU, UL Recognized
Shelf Life UOMYear
Overall Width (Imperial) UOMin
Tensile Strength (Metric) UOMN/cm
Adhesive MaterialThermosetting Silicone
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) MaterialPolyimide Film
Insulation Resistance1 x 10^6 megohms
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Celsius)180.0
