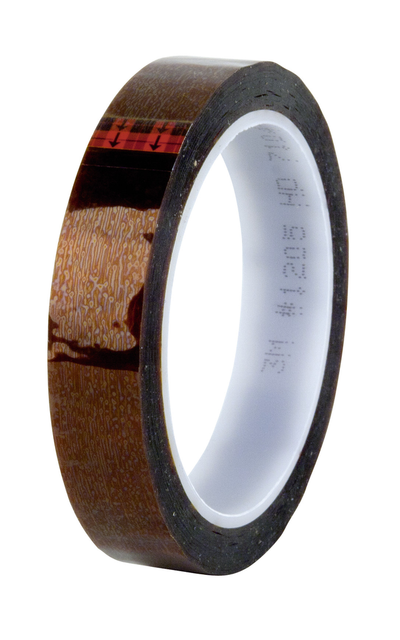

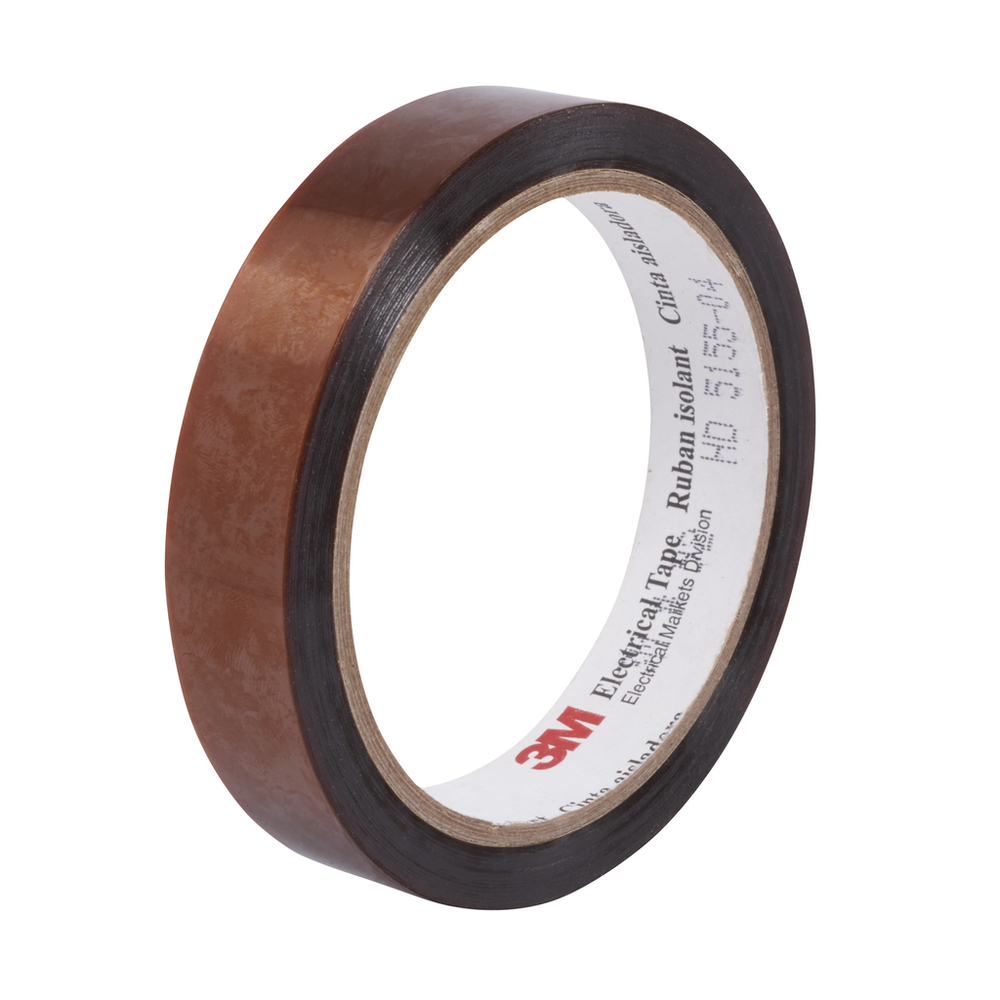

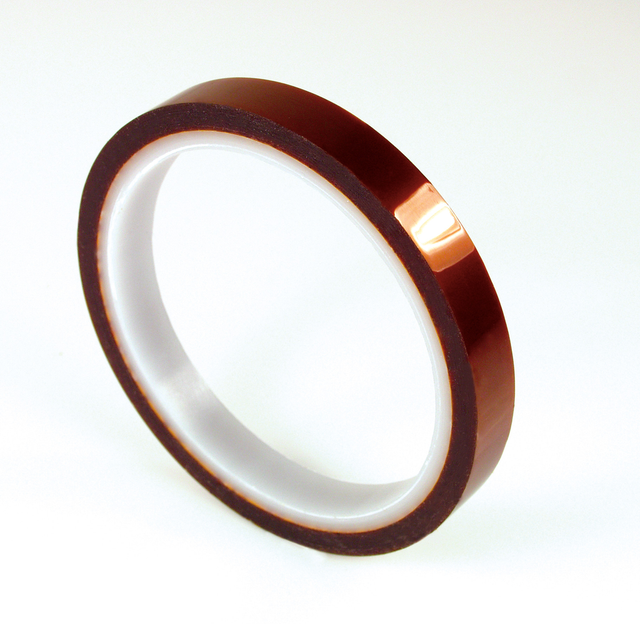

3M™ Polyimide Film Electrical Tape 92, 12 mm x 33 m, 19 Rolls/Case - 7100033232

Sold As: 19-Pack
SKU: 7100033232
MPN: 7100033232
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00076308622718
3M ID: 80000207789
5 Digit UPC: 62271
$756.13 ($39.80 / Count)
Hurry up! Current stock:

Product Description

3M™ Tape 92 is a high performance, electrical tape with a polyimide film backing. This tape is designed to provide thick insulation for coils, harnesses and capacitors. The flame retardant tape withstands a temperature range of 0°C to 180°C (32 to 356 °F).

Features

  • Highly conformable with a pressure-sensitive, silicone adhesive
  • UL Listed and RoHS Compliant
  • Flame-retardant and has polyamide backing
  • Designed for anchoring leads and terminal boards
  • Withstands a temperature rating of 0°C to 180°C
  • Suitable for use as wave solder masking tape in a printed circuit board assembly
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Maximum Operating Temperature (Celsius)180.0
Overall Width (Metric)12.0
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMyd
Specifications MetRoHS 2011/65/EU, UL Recognized
Dielectric Strength UOMV
Product MarketsElectrical Equipment Manufacturing
Insulation Resistance1 x 10^6 megohms
Overall Width (Imperial)15.5
Maximum Operating Temperature (Fahrenheit)356.0
Adhesive MaterialThermosetting Silicone
Overall Length (Metric)33.0
Elongation at Break40%
Backing (Carrier) MaterialPolyimide Film
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Metric) UOMN/cm
Dielectric Strength7500.0
Minimum Operating Temperature (Celsius)-40.0
Overall Length (Metric) UOMm
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric)0.07
ApplicationInsulation
Adhesive TypeSilicone
Tensile Strength (Metric)53.0
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric) UOMmm
Overall Length (Imperial)36.0
Electrolytic Corrosion Factor1.0
Product ColorAmber
Total Tape Thickness without Liner (Imperial)2.75
Total Tape Thickness without Liner (Imperial) UOMmil
Shelf Life UOMYear
