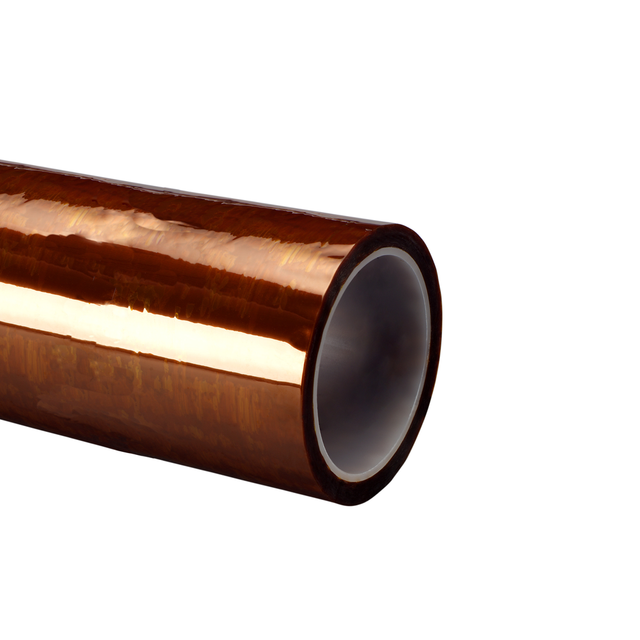

3M™ Polyimide Film Electrical Tape 92, 584.2 mm x 33 m, 3-in plastic core, Log roll, Untrimmed, 1 Roll/Case - 7000058468

SKU: 7000058468
MPN: 7000058468
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138479008
3M ID: 80610873863
5 Digit UPC: 47900
$1,538.19 each
Hurry up! Current stock:

Product Description

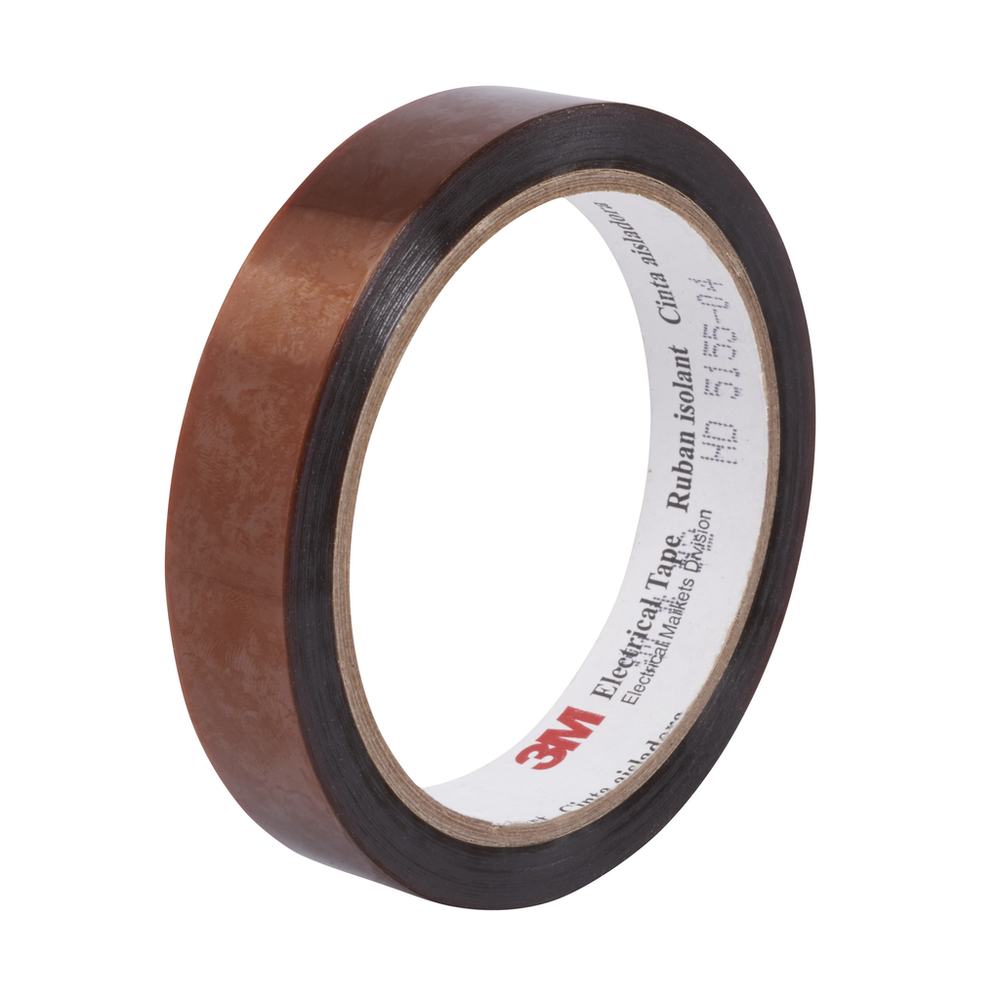

3M™ Tape 92 is a high performance, electrical tape with a polyimide film backing. This tape is designed to provide thick insulation for coils, harnesses and capacitors. The flame retardant tape withstands a temperature range of 0°C to 180°C (32 to 356 °F).

Features

  • Withstands a temperature rating of 0°C to 180°C
  • Flame-retardant and has polyamide backing
  • UL Listed and RoHS Compliant
  • Highly conformable with a pressure-sensitive, silicone adhesive
  • Suitable for use as wave solder masking tape in a printed circuit board assembly
  • Designed for anchoring leads and terminal boards
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Total Tape Thickness without Liner (Metric) UOMmm
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)180.0
Shelf Life UOMYear
Overall Width (Imperial)15.5
Elongation at Break40%
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)33.0
ApplicationInsulation
Electrolytic Corrosion Factor1.0
Overall Length (Imperial)36.0
Specifications MetRoHS 2011/65/EU, UL Recognized
Maximum Operating Temperature (Fahrenheit)356.0
Total Tape Thickness without Liner (Metric)0.07
Minimum Operating Temperature (Celsius)-40.0
Overall Length (Metric) UOMm
Adhesive MaterialThermosetting Silicone
Product ColorAmber
Backing (Carrier) MaterialPolyimide Film
Adhesive TypeSilicone
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Metric) UOMN/cm
Tensile Strength (Metric)53.0
Overall Width (Metric)584.2
Total Tape Thickness without Liner (Imperial)2.75
Product MarketsElectrical Equipment Manufacturing
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMyd
Insulation Resistance1 x 10^6 megohms
Dielectric Strength UOMV
Overall Width (Metric) UOMmm
Dielectric Strength7500.0
