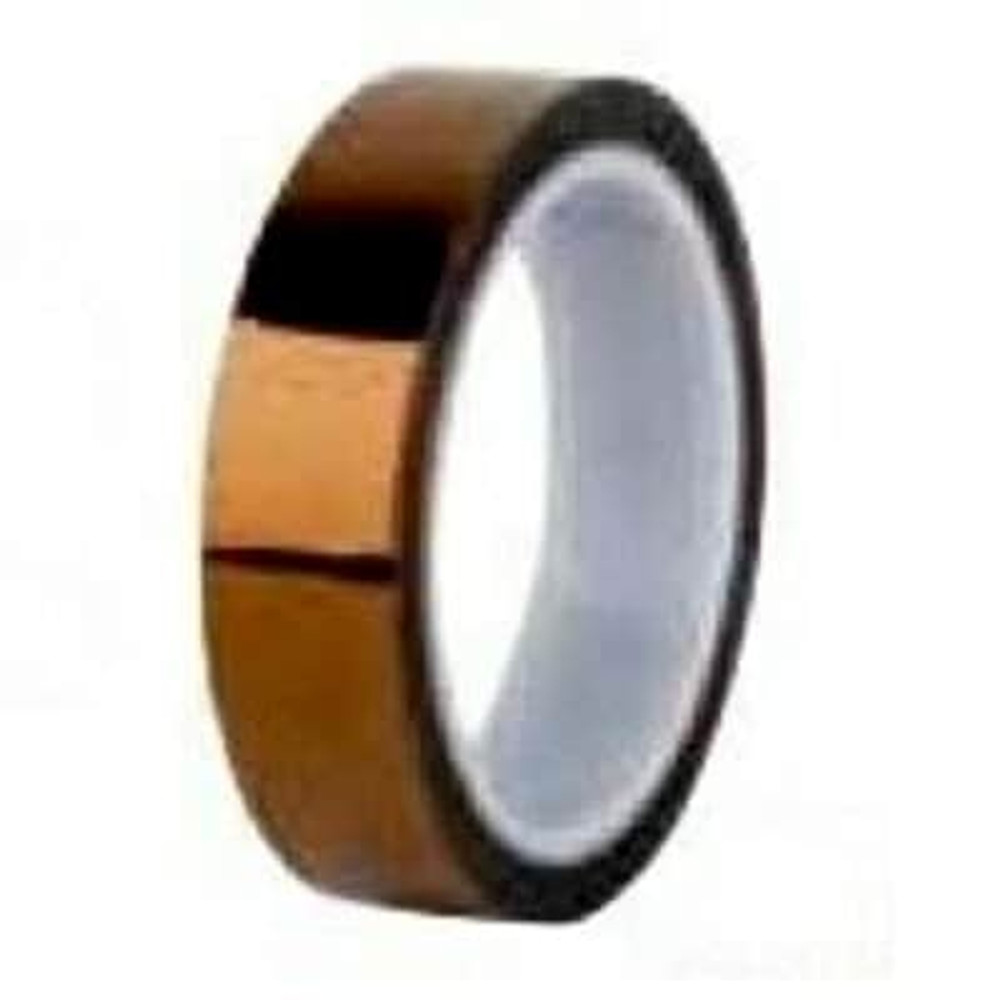

3M™ Polyimide Film Electrical Tape 98C-1, 1/8 in x 36 yds, 48 Rolls/Case - 7100171757

Sold As: 48-Pack
SKU: 7100171757
MPN: 7100171757
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128612064
3M ID: 80611615347
5 Digit UPC: 61206
$440.88 ($9.19 / Count)
Hurry up! Current stock:

Product Description

3M™ Polyimide Film Electrical Tape 98C-1 is an amber UL recognized flame retardant, 2.6-mil (0.066 mm) thick tape composed of a 1-mil (0.025 mm) thick polyimide film backing coated on one side with a non-corrosive, silicone pressure-sensitive adhesive

Features

  • Nominal thickness: 0.066 mm (2.6 mil)
  • RoHS Compliant
  • UL Recognized 220°C temperature rating
  • 1.5 year shelf-life when stored per 3M recommended conditions
  • Pressure-sensitive silicone adhesive with polyimide film backing
  • UL Recognized flame retardant

Specifications

Shelf Life1800
Country of OriginChina
Dielectric Strength6000.0
Overall Width (Metric) UOMmm
Dielectric Strength UOMV
Electrolytic Corrosion Factor1.0
Overall Width (Imperial) UOMin
Overall Width (Metric)3.175
Product ColorAmber
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric)0.066
Adhesive MaterialThermosetting Silicone
Adhesive TypeSilicone
Shelf Life UOMYear
Overall Width (Imperial)0.125
Backing (Carrier) MaterialPolyimide Film
Insulation Resistance> 10^6 megohms
Maximum Operating Temperature (Celsius)220.0
ApplicationInsulation
Maximum Operating Temperature (Celsius) UOMDegree
Elongation at Break40%
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)2.6
