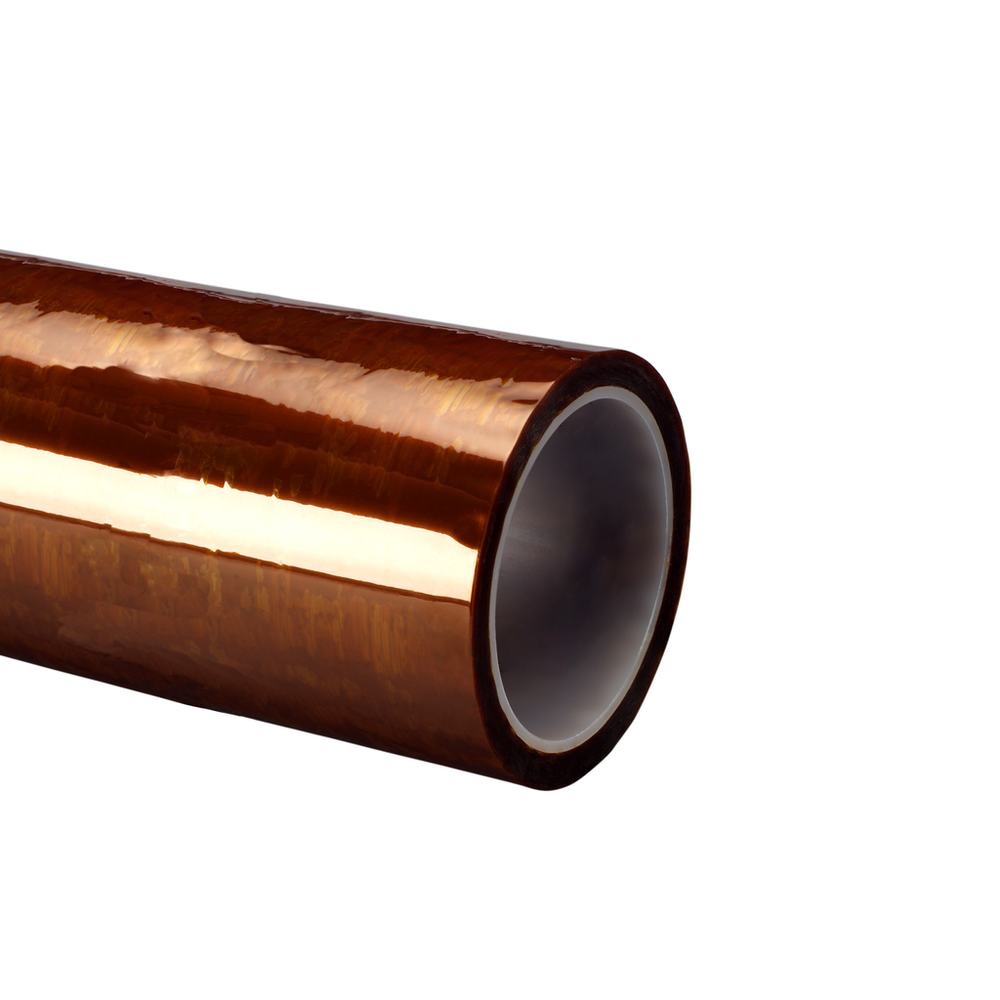

3M™ Polyimide Film Electrical Tape 1205, Amber, Acrylic Adhesive, 1 mil film, log rolls (25 yds x 36 yds), 1 Roll/Case - 7010398934

SKU: 7010398934
MPN: 7010398934
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138966584
3M ID: 80611028558
5 Digit UPC: 96658
$1,544.66 each
Hurry up! Current stock:

Product Description

3M™ Polyimide Film Electrical Tape 1205 is a polyimide film backed electrical tape. This flame retardant tape is suitable for use in applications that require thin insulating material for wrapping transformers, capacitors and wire harnesses. This tape withstands a temperature range of -40°C to 155°C (-40 to 311 °F) without the loss of electrical properties and tensile strength.

Features

  • Designed for anchoring leads and terminal boards
  • Flame-retardant and has polyimide backing
  • UL Listed and RoHS Compliant
  • Withstands a temperature rating of -40°C to 155°C (-40°F to 311°F)
  • Highly conformable with a pressure-sensitive, acrylic adhesive
  • Suitable for use as wave solder masking tape in a printed circuit board assembly

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Product MarketsElectrical Equipment Manufacturing
Total Tape Thickness without Liner (Metric)0.081
Product ColorAmber
Overall Width (Metric) UOMmm
Dielectric Strength UOMV
Shelf Life UOMYear
Maximum Operating Temperature (Fahrenheit)311.0
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial)3.2
Tensile Strength (Metric)53.0
Overall Length (Metric)33.0
ApplicationInsulation
Overall Length (Metric) UOMm
Electrolytic Corrosion Factor1.0
Overall Length (Imperial)36.0
Specifications MetRoHS 2011/65/EU
Dielectric Strength7500.0
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) MaterialPolyimide Film
Elongation at Break55%
Total Tape Thickness without Liner (Imperial) UOMmil
Adhesive TypeAcrylic
Overall Width (Metric)635.0
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)155.0
Tensile Strength (Metric) UOMN/cm
Adhesive MaterialAcrylic
Overall Width (Imperial)25.0
