3M Products & Supplies

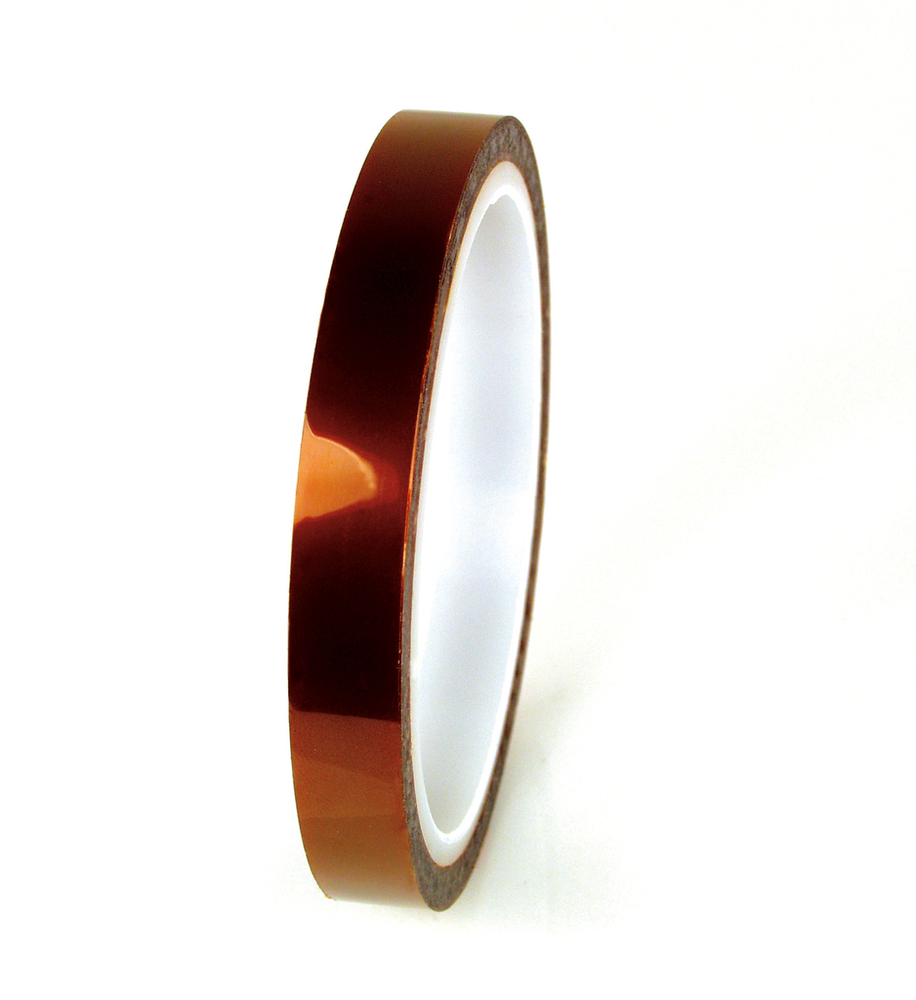

3M™ Polyimide Film Electrical Tape 1218, Amber, log roll, 480mm x 33M (18.9 inches x 36 yds), 1 Roll/Case - 7010399763

SKU: 7010399763
MPN: 7010399763
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128560778
3M ID: 80611426653
5 Digit UPC: 56077
$1,264.93 each
Hurry up! Current stock:

Product Description

3M™ Tape 1218 is an electrical tape that's suitable for high temperature, electrical applications that require thin, insulating material for wrapping capacitors, coils and harnesses. This tape has a polyimide film backing that offers exceptional heat and solvent resistance. This tape is 600V rated and withstands temperatures up to 356 °F (180 °C).

Features

  • Suitable for coils, harnesses and capacitor applications
  • Withstands temperatures up to 356 °F (180 °C)
  • UL Listed and RoHS 2011/65/EU Compliant
  • Polyamide film backing provides exceptional heat and solvent resistance
  • Acrylic adhesive offers excellent adherence
  • Flame-retardant

Specifications

Shelf Life1825
Country of OriginTaiwan
Minimum Operating Temperature (Celsius)0.0
Overall Length (Imperial) UOMyd
Adhesive MaterialAcrylic
Adhesive TypeAcrylic
Total Tape Thickness without Liner (Imperial)3.15
Dielectric Strength6000.0
Specifications MetRoHS 2011/65/EU
Product MarketsElectrical Equipment Manufacturing
Elongation at Break55%
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)356.0
Overall Width (Imperial)15.5
Insulation Resistance1 x 10^6 megohms
Maximum Operating Temperature (Celsius)180.0
Overall Width (Metric) UOMmm
Dielectric Strength UOMV
Overall Width (Metric)480.0
Minimum Operating Temperature (Fahrenheit)32.0
Product ColorAmber
Total Tape Thickness without Liner (Imperial) UOMmil
Electrolytic Corrosion Factor1.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Metric)0.08
Backing (Carrier) MaterialPolyimide Film
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)36.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
