3M Products & Supplies

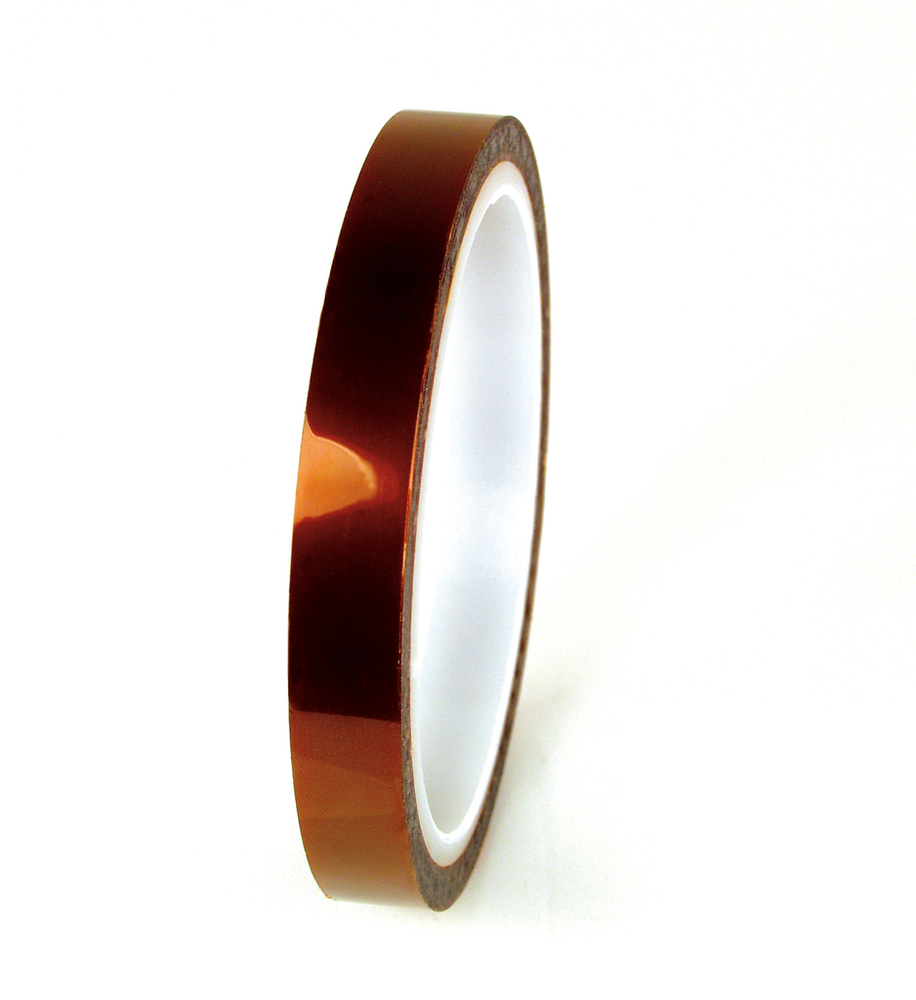

3M™ Polyimide Film Electrical Tape 1218, Amber, log rolls, 3/4 in x 36 yd, 12 Rolls/Case - 7010349667

Sold As: 12-Pack
SKU: 7010349667
MPN: 7010349667
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128583104
3M ID: 80611454358
5 Digit UPC: 58310
$715.71 ($59.64 / Count)
Hurry up! Current stock:

Product Description

3M™ Tape 1218 is an electrical tape that's suitable for high temperature, electrical applications that require thin, insulating material for wrapping capacitors, coils and harnesses. This tape has a polyimide film backing that offers exceptional heat and solvent resistance. This tape is 600V rated and withstands temperatures up to 356 °F (180 °C).

Features

  • Withstands temperatures up to 356 °F (180 °C)
  • Acrylic adhesive offers excellent adherence
  • Polyamide film backing provides exceptional heat and solvent resistance
  • UL Listed and RoHS 2011/65/EU Compliant
  • Suitable for coils, harnesses and capacitor applications
  • Flame-retardant

Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Insulation Resistance1 x 10^6 megohms
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) MaterialPolyimide Film
Adhesive MaterialAcrylic
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Celsius)0.0
Overall Length (Metric) UOMm
Maximum Operating Temperature (Celsius)180.0
Overall Width (Imperial) UOMin
Overall Width (Imperial)0.75
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)33.0
Electrolytic Corrosion Factor1
Minimum Operating Temperature (Celsius) UOMDegree
Elongation at Break55%
Dielectric Strength6000.0
Product ColorAmber
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial)3.15
Overall Width (Metric)19.0
Product MarketsElectrical Equipment Manufacturing
Specifications MetRoHS 2011/65/EU, UL Recognized
Adhesive TypeAcrylic
Dielectric Strength UOMV
Minimum Operating Temperature (Fahrenheit)32.0
Total Tape Thickness without Liner (Metric)0.08
Maximum Operating Temperature (Fahrenheit)356.0
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial)36.0
