3M Products & Supplies

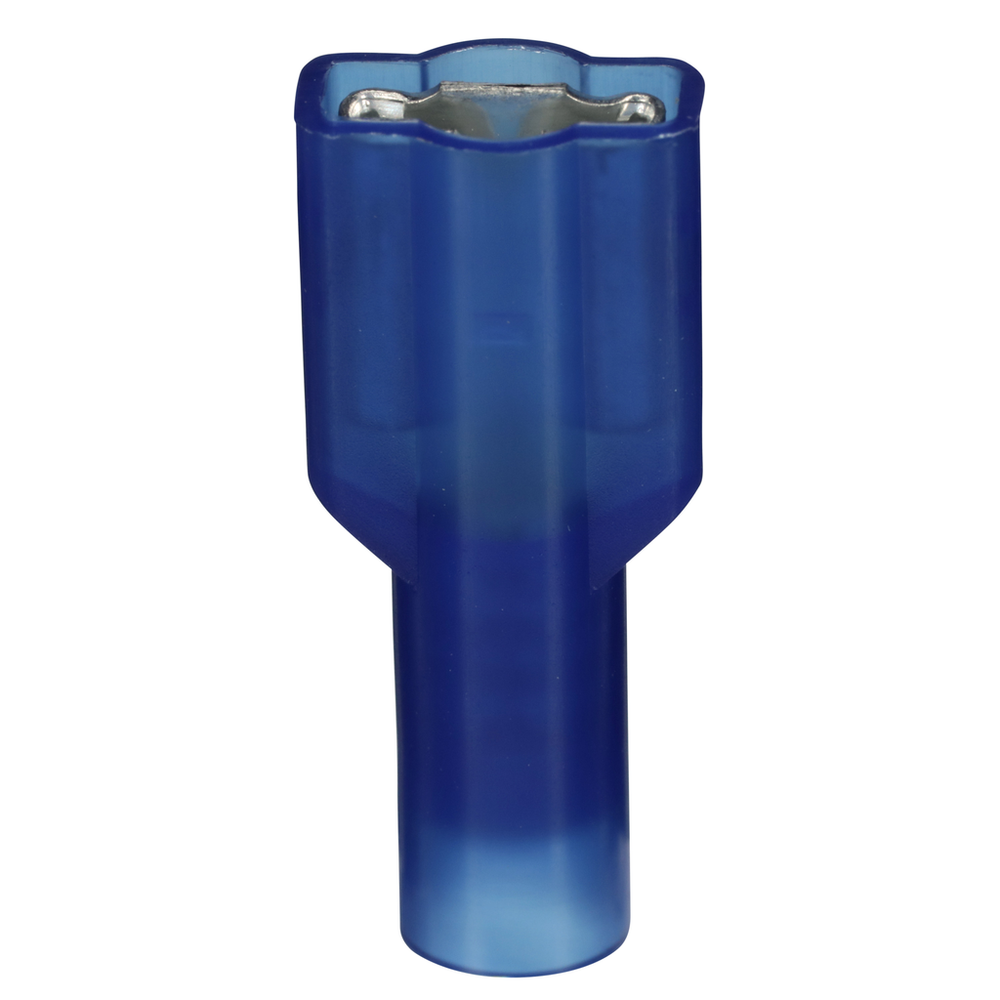

3M™ Female Disconnect, Fully Nylon Insulated Butted Seam 16-14 AWG, 94820, 72F-250-32-NL - 7010397408

Sold As: 10-Pack
SKU: 7010397408
MPN: 7010397408
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007948209
3M ID: 80611253206
MPN: 94820
$245.06 ($24.51 / Count)
Hurry up! Current stock:

Product Description

3M™ Standard Female Disconnect Terminals have dents and rolled edges to offer great holding force while allowing for quick and easy disconnect. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Allows for quick and easy disconnect of wires
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires

Downloads

Specifications

Connection Width (Imperial) UOMin
Minimum Conductor Size (Imperial)16 AWG
Terminal TypeDisconnect
Maximum Conductor Size (Imperial)14 AWG
Country of OriginUnited States
Maximum Conductor Size (Metric)2.5 mm²
Disconnect TypeFemale
Connection Width (Imperial)0.25
Minimum Conductor Size (Metric)1.5 mm²
Connection Width (Metric)6.35
Connection Width (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
