3M Products & Supplies

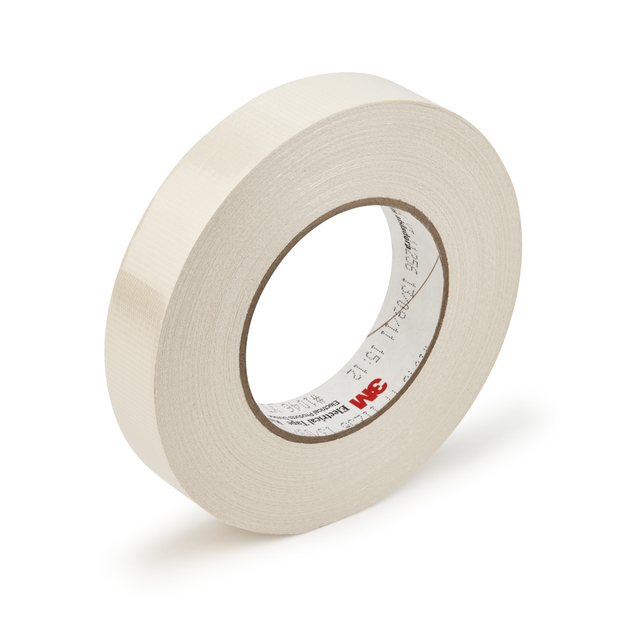

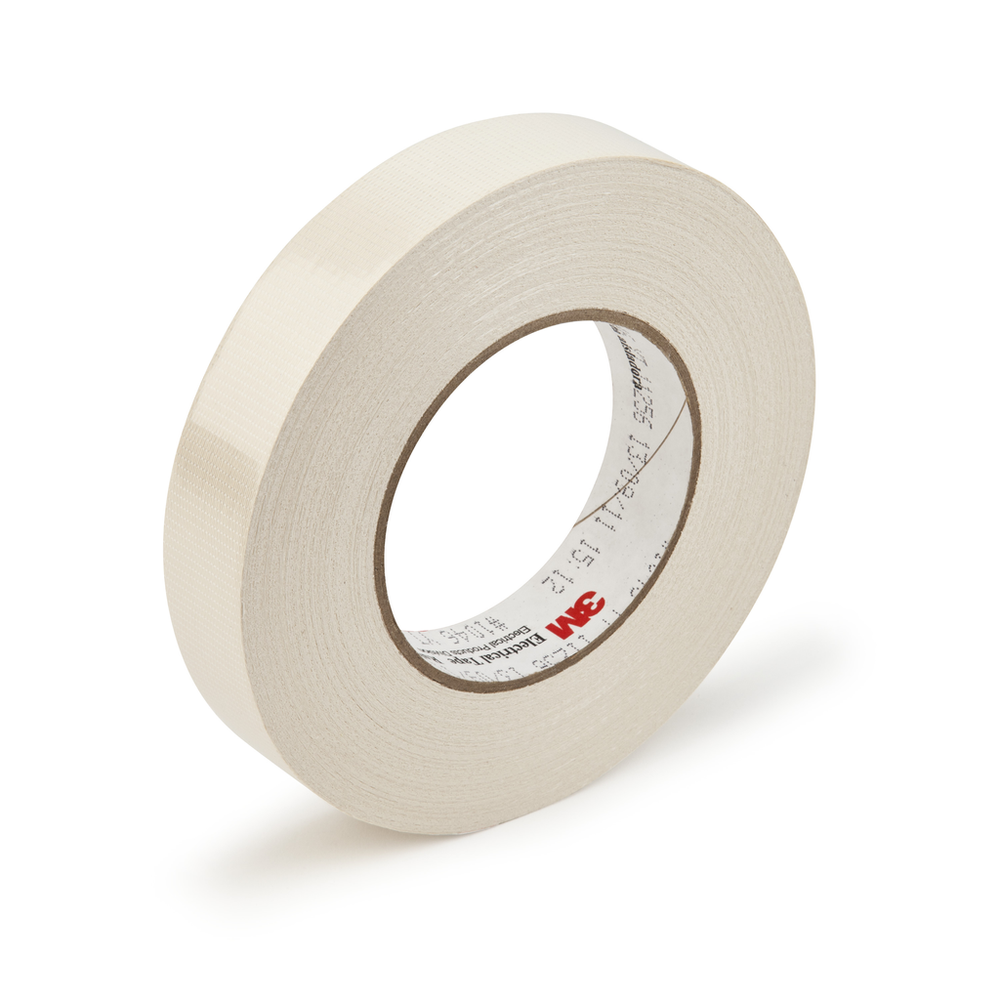

3M™ Filament-Reinforced Electrical Tape 1046, 1/4 in x 60 yds, paper core, Bulk, 144 Rolls/Case - 7010399046

Sold As: 144-Pack
SKU: 7010399046
MPN: 7010399046
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128604564
3M ID: 80611607773
5 Digit UPC: 60456
$1,186.70 ($8.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Filament Reinforced Electrical Tape 1046 is a 7 mil thick, high tensile, electrical tape. It is suitable for insulating dry type transformers, as well as motor winding, end turn and wire hold applications. It withstands a temperature range of 32 to 266 °F (0 to 130 °C).

Features

  • RoHS 2011/65/EU Compliant
  • Suitable for insulating dry-type transformers, motor-winding and end-turn, wire-hold applications
  • Polyester film, filament-reinforced backing and highly conformable, pressure-sensitive, thermosetting, rubber adhesive
  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • Designed for applications that require excellent dielectric strength and mechanical strength
  • Designed for excellent dielectric strength and mechanical strength applications

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial)7.0
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.178
Elongation at Break5
Product ColorTransparent
Shelf Life UOMYear
Specifications MetUL Recognized
Overall Width (Imperial)0.0
Overall Width (Metric) UOMmm
ApplicationInsulation
Electrolytic Corrosion Factor1.0
Insulation Resistance> 10^6 megohms
Adhesive TypeThermosetting Rubber
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric)6.35
