3M Products & Supplies

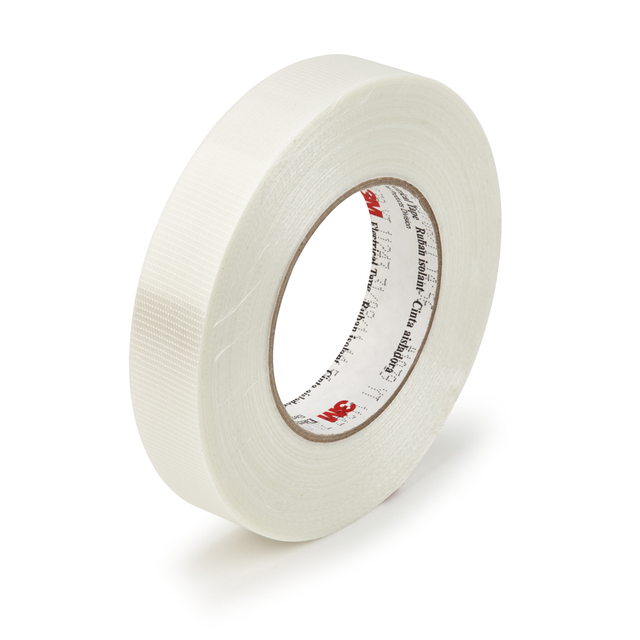

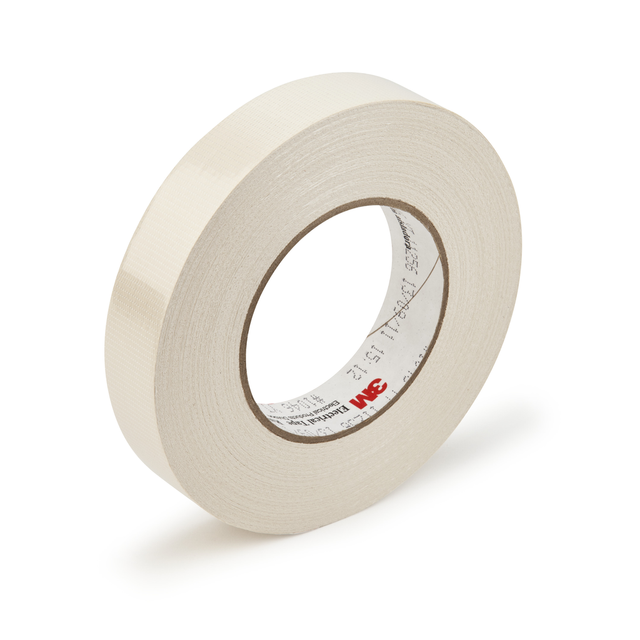

3M™ Filament-Reinforced Electrical Tape 1046, 1 in X 60 yds, Bulk, 3-in paper core, 36 Rolls/Case - 7010350277

Sold As: 36-Pack
SKU: 7010350277
MPN: 7010350277
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128602140
3M ID: 80611604762
5 Digit UPC: 60214
$1,343.40 ($37.32 / Count)
Hurry up! Current stock:

Product Description

3M™ Filament Reinforced Electrical Tape 1046 is a 7 mil thick, high tensile, electrical tape. It is suitable for insulating dry type transformers, as well as motor winding, end turn and wire hold applications. It withstands a temperature range of 32 to 266 °F (0 to 130 °C).

Features

  • Designed for excellent dielectric strength and mechanical strength applications
  • RoHS 2011/65/EU Compliant
  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • Designed for applications that require excellent dielectric strength and mechanical strength
  • Polyester film, filament-reinforced backing and highly conformable, pressure-sensitive, thermosetting, rubber adhesive
  • Suitable for insulating dry-type transformers, motor-winding and end-turn, wire-hold applications

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Shelf Life UOMYear
Specifications MetUL Recognized
Total Tape Thickness without Liner (Metric)0.178
Overall Width (Metric)25.4
Overall Width (Metric) UOMmm
Elongation at Break5
Overall Width (Imperial)0.0
Total Tape Thickness without Liner (Imperial)7.0
Product ColorTransparent
ApplicationInsulation
Electrolytic Corrosion Factor1.0
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Insulation Resistance> 10^6 megohms
Adhesive TypeThermosetting Rubber
