3M Products & Supplies

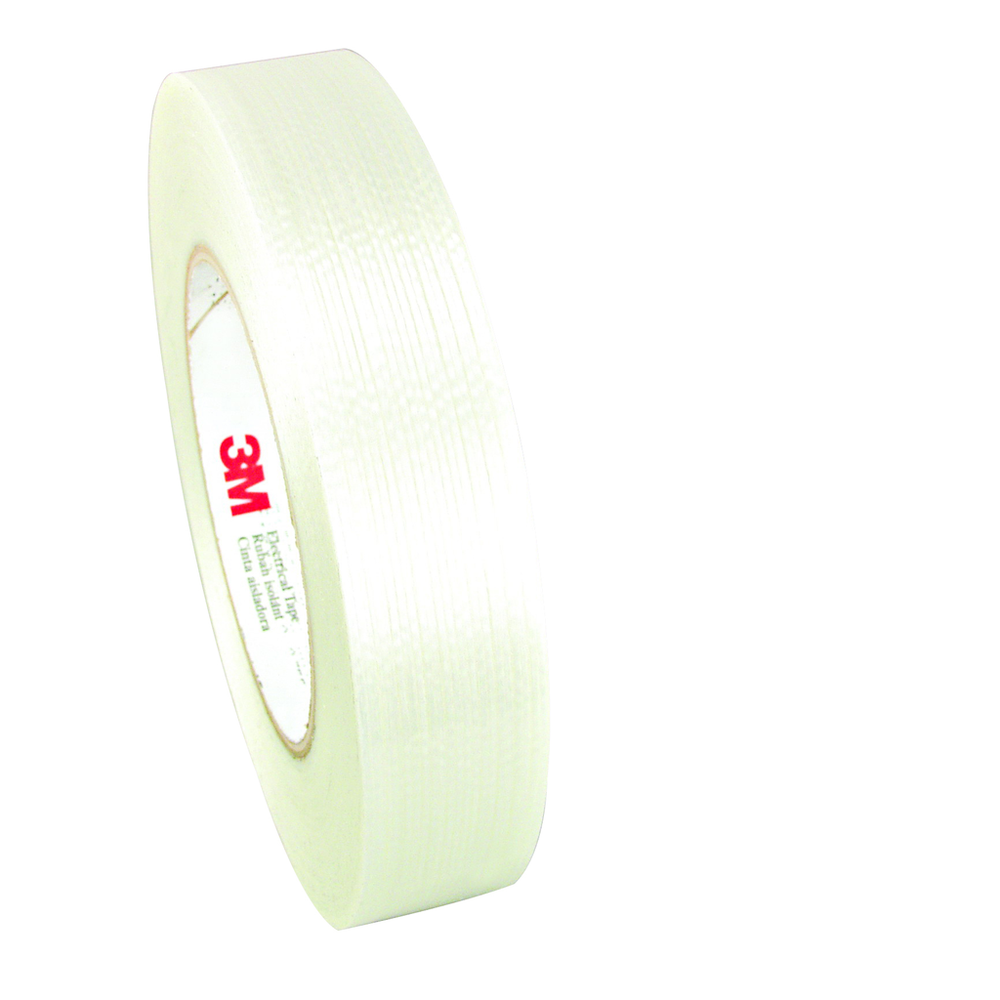

3M™ Filament Reinforced Electrical Tape 1339, 1 in x 60 yd, 36 Rolls/Case - 7010297308

Sold As: 36-Pack
SKU: 7010297308
MPN: 7010297308
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007082071
3M ID: 80008005920
5 Digit UPC: 8207
$1,398.69 ($38.85 / Count)
Hurry up! Current stock:

Product Description

3M™ Filament Tape 1339 is a conformable, solvent resistant, high temperature filament tape with acrylic adhesive. Designed for applications needing both the dielectric strength of polyester film and the high mechanical strength of glass fibers.

Features

  • Designed for applications needing both the dielectric strength of polyester film and the high mechanical strength of glass fibers
  • Low stretch, high tensile and edge-tear resistant
  • 6.5 mil film thickness
  • Conformable, solvent-resistant, high temperature filament tape with acrylic adhesive
  • UL recognized for use at temperatures to 266°F (130°C)
  • Excellent for anchoring lead wires to banding coils and end-turn taping
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Overall Width (Metric)25.4
Overall Length (Metric)54.8
Shelf Life UOMYear
Total Tape Thickness without Liner (Imperial)6.45
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.164
Electrolytic Corrosion Factor1.0
Overall Width (Imperial) UOMin
Insulation Resistance1 x 10^5 megohms
Adhesive TypeAcrylic
Product ColorWhite
Overall Length (Imperial)60.0
Overall Width (Imperial)1.0
Specifications MetCSA Certified, UL Recognized
Overall Length (Metric) UOMm
ApplicationInsulation
Total Thickness (Metric)0.165
Total Tape Thickness without Liner (Metric) UOMmm
