3M Products & Supplies

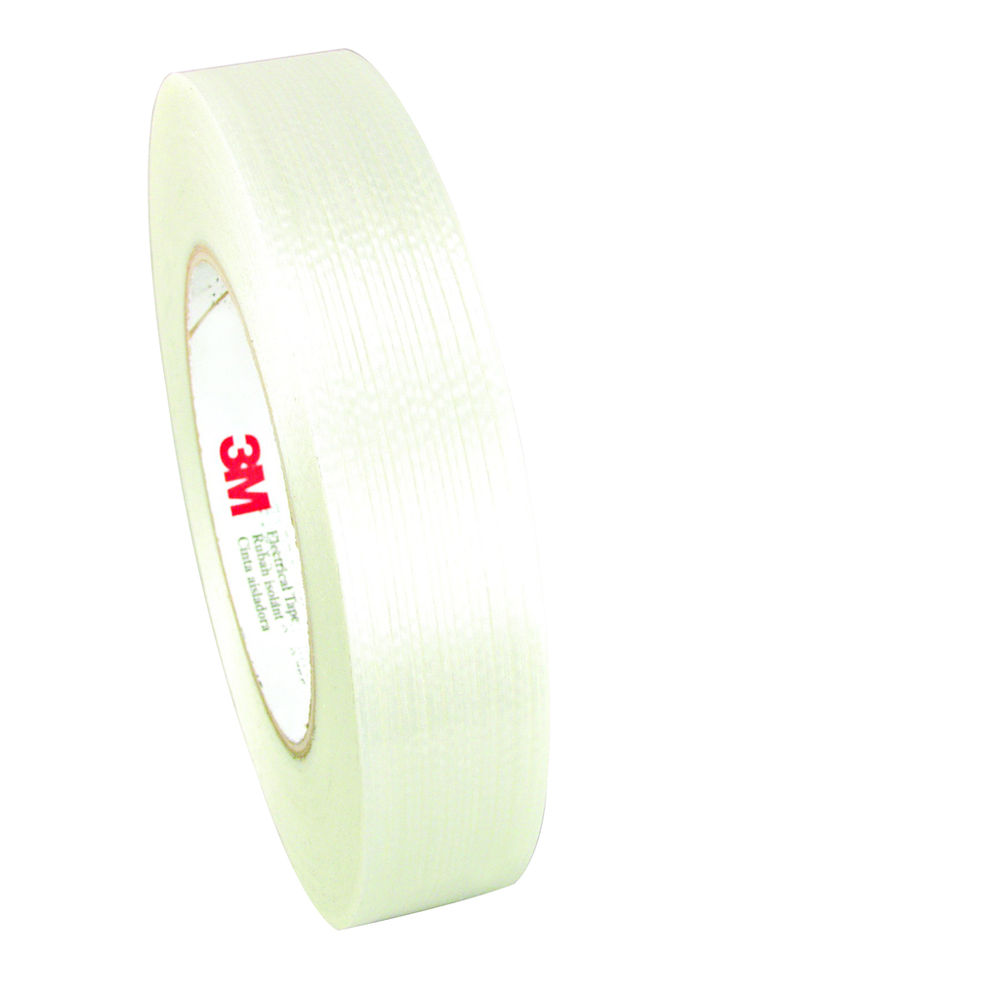

3M™ Filament Reinforced Electrical Tape 1339, 1/2 in x 60 yd, 72 Rolls/Case - 7010319998

Sold As: 72-Pack
SKU: 7010319998
MPN: 7010319998
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007081869
3M ID: 80008005854
5 Digit UPC: 8186
$1,398.15 ($19.42 / Count)
Hurry up! Current stock:

Product Description

3M™ Filament Tape 1339 is a conformable, solvent resistant, high temperature filament tape with acrylic adhesive. Designed for applications needing both the dielectric strength of polyester film and the high mechanical strength of glass fibers.

Features

  • Designed for applications needing both the dielectric strength of polyester film and the high mechanical strength of glass fibers
  • Low stretch, high tensile and edge-tear resistant
  • UL recognized for use at temperatures to 266°F (130°C)
  • Conformable, solvent-resistant, high temperature filament tape with acrylic adhesive
  • Excellent for anchoring lead wires to banding coils and end-turn taping
  • 6.5 mil film thickness

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial)6.45
Overall Width (Metric) UOMmm
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial) UOMmil
Specifications MetCSA Certified, UL Recognized
Overall Width (Imperial)0.5
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.164
Insulation Resistance1 x 10^5 megohms
Overall Length (Imperial) UOMyd
Shelf Life UOMYear
Overall Length (Metric)54.8
Electrolytic Corrosion Factor1.0
Overall Width (Metric)12.7
Overall Length (Metric) UOMm
ApplicationInsulation
Overall Length (Imperial)60.0
Total Thickness (Metric)0.165
Adhesive TypeAcrylic
Product ColorWhite
