3M Products & Supplies

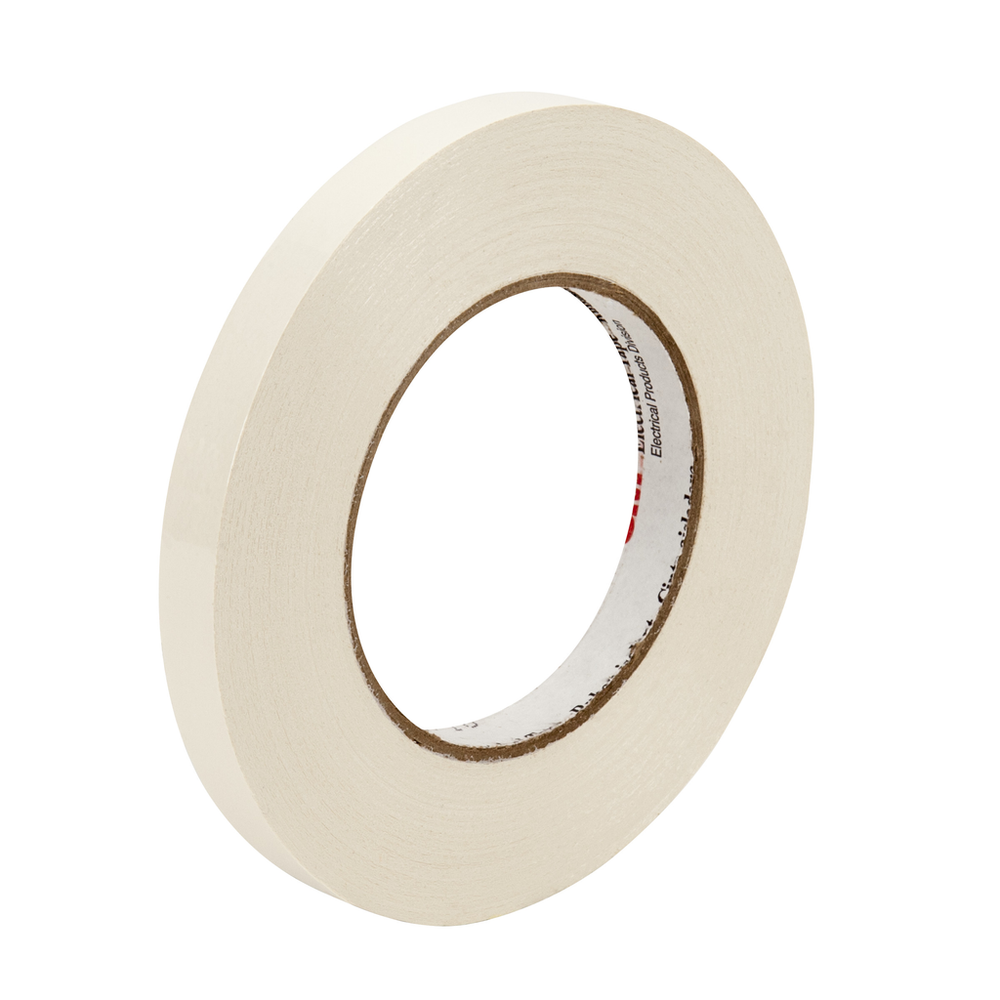

3M™ Filament-Reinforced Electrical Tape 46, 1/2 in x 60 yd, 72 Rolls/Case - 7010350174

Sold As: 72-Pack
SKU: 7010350174
MPN: 7010350174
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138528058
3M ID: 80610870125
5 Digit UPC: 52805
$1,473.13 ($20.46 / Count)
Hurry up! Current stock:

Product Description

3M™ Tape 46 is an electrical tape with rubber adhesive. This tape is ideal for anchoring lead wires to banding coils and for end turn taping. This tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).

Features

  • Low stretch, high tensile and edge-tear resistance
  • Excellent for anchoring lead wires to banding coils and end-turn taping
  • UL Listed and RoHS 2011/65/EU Compliant
  • For applications needing both the dielectric strength of polyester film and the high mechanical strength of glass fibers
  • 7 mil thickness
  • Tough, durable filament tape with thermosetting rubber resin adhesive
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Adhesive TypeThermosetting Rubber
Electrolytic Corrosion Factor1.0
Overall Length (Metric) UOMm
Tensile Strength (Imperial) UOMlb/in
Product ColorTransparent
Tensile Strength (Imperial)275.0
Overall Length (Metric)54.8
ApplicationInsulation
Specifications MetCSA Certified, UL Recognized
Total Tape Thickness without Liner (Imperial)7.0
Insulation Resistance> 10^6 megohms
Elongation at Break5
Overall Width (Imperial)0.5
Overall Width (Imperial) UOMin
Overall Width (Metric)12.7
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric)0.178
Tensile Strength (Metric)481.0
Shelf Life UOMYear
Overall Width (Metric) UOMmm
Overall Length (Imperial)60.0
Tensile Strength (Metric) UOMN/10mm
