3M Products & Supplies

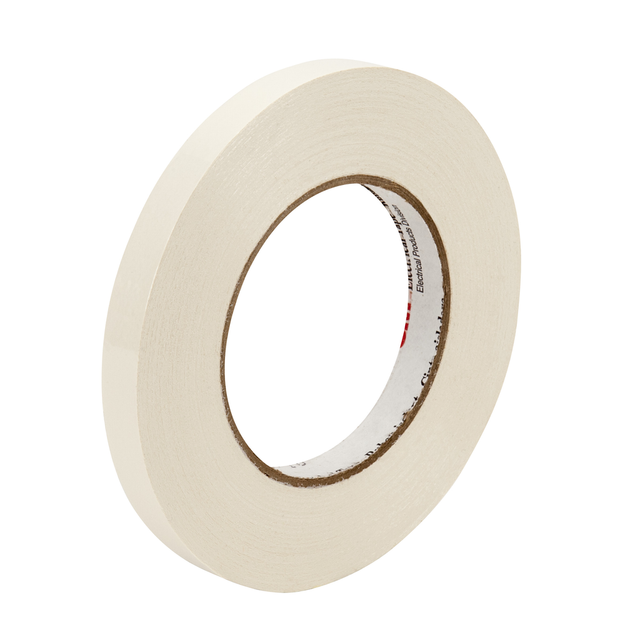

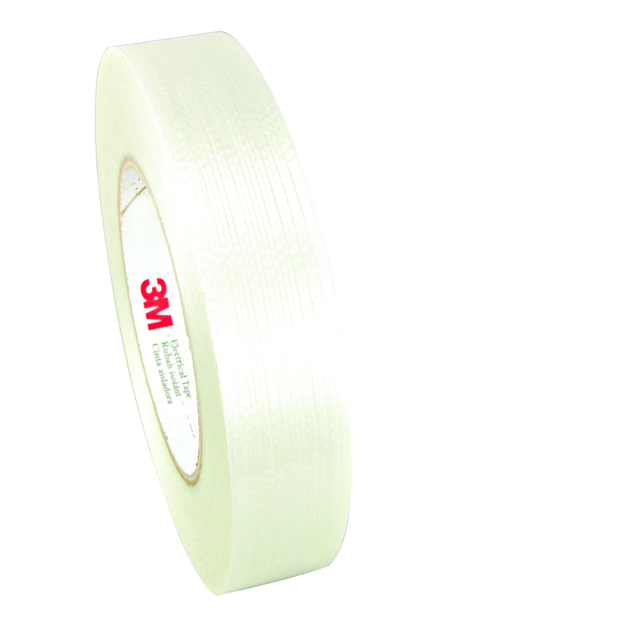

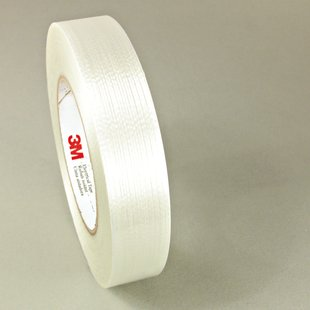

3M™ Filament-Reinforced Electrical Tape 46, 3/4 in x 60 yd, 48 Rolls/Case - 7010398739

Sold As: 48-Pack
SKU: 7010398739
MPN: 7010398739
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138528065
3M ID: 80610870133
5 Digit UPC: 52806
$1,471.51 ($30.66 / Count)
Hurry up! Current stock:

Product Description

3M™ Tape 46 is an electrical tape with rubber adhesive. This tape is ideal for anchoring lead wires to banding coils and for end turn taping. This tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).

Features

  • Low stretch, high tensile and edge-tear resistance
  • Excellent for anchoring lead wires to banding coils and end-turn taping
  • UL Listed and RoHS 2011/65/EU Compliant
  • For applications needing both the dielectric strength of polyester film and the high mechanical strength of glass fibers
  • 7 mil thickness
  • Tough, durable filament tape with thermosetting rubber resin adhesive
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Tensile Strength (Imperial)275.0
Specifications MetCSA Certified, UL Recognized
Tensile Strength (Imperial) UOMlb/in
Overall Width (Metric)19.05
Overall Width (Imperial)0.75
ApplicationInsulation
Elongation at Break5
Tensile Strength (Metric)481.0
Total Tape Thickness without Liner (Imperial)7.0
Total Tape Thickness without Liner (Metric) UOMmm
Tensile Strength (Metric) UOMN/10mm
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric)0.178
Product ColorTransparent
Shelf Life UOMYear
Electrolytic Corrosion Factor1.0
Overall Length (Metric)54.8
Overall Width (Metric) UOMmm
Insulation Resistance> 10^6 megohms
Overall Width (Imperial) UOMin
Overall Length (Imperial)60.0
Overall Length (Metric) UOMm
Adhesive TypeThermosetting Rubber
