3M Products & Supplies

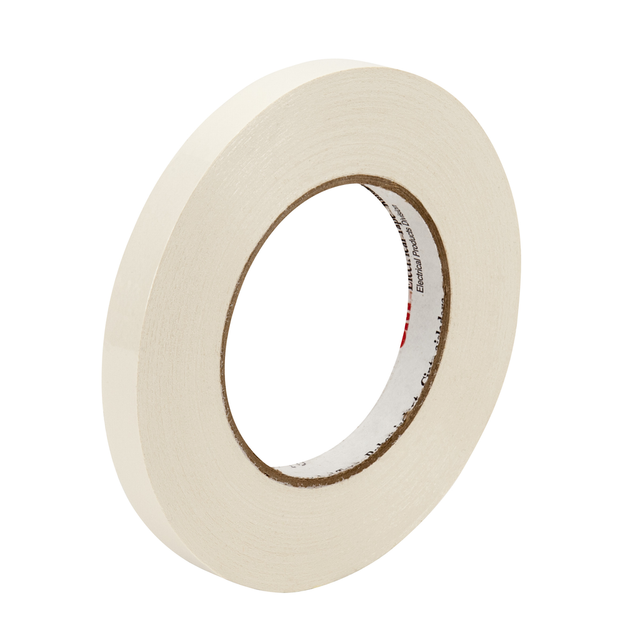

3M™ Filament-Reinforced Electrical Tape 46, 3/8 in x 60 yd, 96 Rolls/Case - 7010293932

Sold As: 96-Pack
SKU: 7010293932
MPN: 7010293932
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007273264
3M ID: 80002066027
5 Digit UPC: 27326
$1,476.55 ($15.38 / Count)
Hurry up! Current stock:

Product Description

3M™ Tape 46 is an electrical tape with rubber adhesive. This tape is ideal for anchoring lead wires to banding coils and for end turn taping. This tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).

Features

  • UL Listed and RoHS 2011/65/EU Compliant
  • For applications needing both the dielectric strength of polyester film and the high mechanical strength of glass fibers
  • 7 mil thickness
  • Excellent for anchoring lead wires to banding coils and end-turn taping
  • Tough, durable filament tape with thermosetting rubber resin adhesive
  • Low stretch, high tensile and edge-tear resistance
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Overall Length (Imperial)60.0
Tensile Strength (Imperial) UOMlb/in
Total Tape Thickness without Liner (Metric)0.178
Tensile Strength (Metric) UOMN/10mm
Elongation at Break5
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)9.53
Total Tape Thickness without Liner (Imperial)7.0
Tensile Strength (Imperial)275.0
Overall Width (Imperial) UOMin
Overall Length (Metric)54.8
Tensile Strength (Metric)481.0
Electrolytic Corrosion Factor1.0
Insulation Resistance> 10^6 megohms
Specifications MetCSA Certified, UL Recognized
ApplicationInsulation
Overall Width (Metric) UOMmm
Overall Width (Imperial)0.375
Total Tape Thickness without Liner (Imperial) UOMmil
Adhesive TypeThermosetting Rubber
Product ColorTransparent
Overall Length (Imperial) UOMyd
Shelf Life UOMYear
