3M Products & Supplies

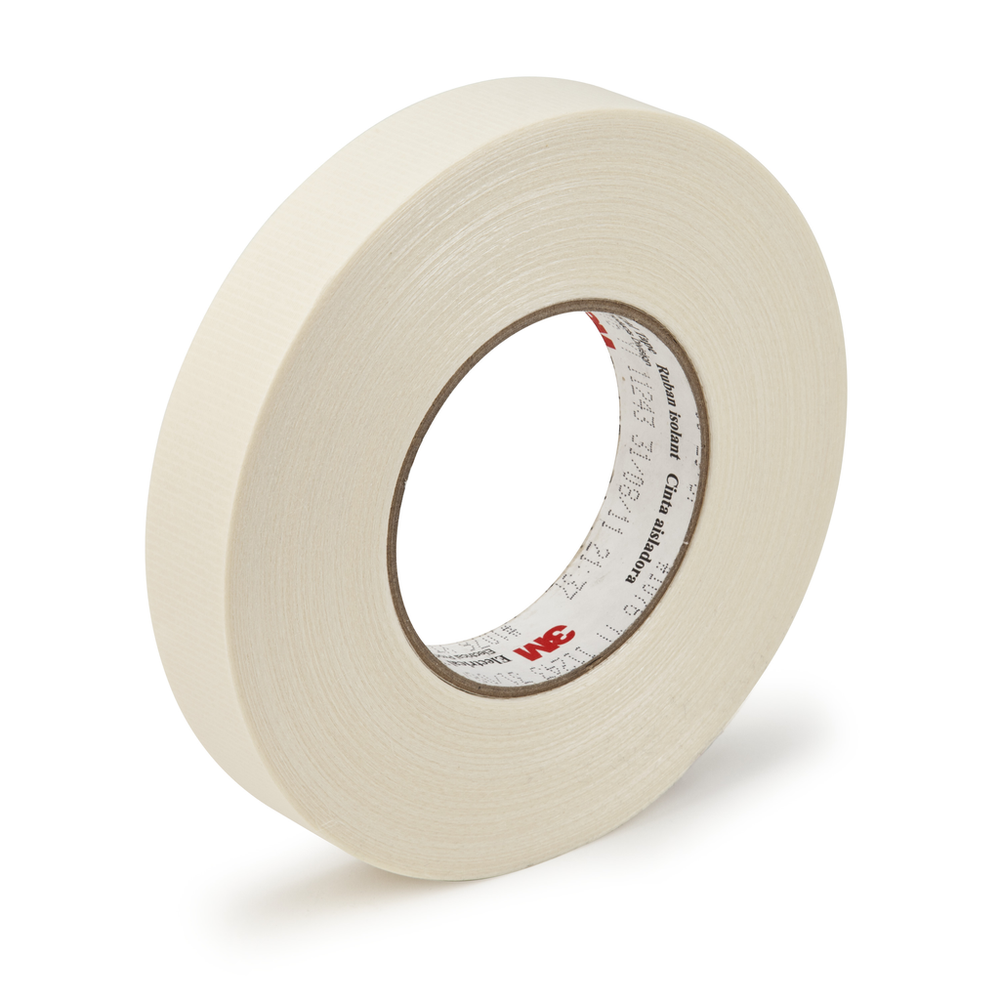

3M™ Filament-Reinforced Electrical Tape 1076, 3/8 X 60 YDS, BULK, 3" PAPER, 96 Rolls/Case - 7010400878

Sold As: 96-Pack
SKU: 7010400878
MPN: 7010400878
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128599860
3M ID: 80611602477
5 Digit UPC: 59986
$1,144.28 ($11.92 / Count)
Hurry up! Current stock:

Product Description

3M™ Filament Reinforced Electrical Tape 1076 is a 10 mil thick electrical filament tape. This tape is designed for oil filled distribution transformer applications and offers stable adherence even after long exposure to transformer fluids. The tape has electrical grade, paper backing that is reinforced with scrim glass filament and oil compatible, pressure sensitive, acrylic adhesive.

Features

  • Withstands a temperature range of -40 to 221 °F (-40 to 105 °C)
  • Saturable backing provides air entrapment resistance that minimizes trapped air between the adhesive layers in the tape
  • RoHS 2011/65/EU Compliant
  • Woven, glass mat provides additional reinforcement and remains stable even after long exposure to transformer fluids
  • Electrical-grade paper backing and oil-compatible, pressure-sensitive, acrylic adhesive

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Tensile Strength (Metric) UOMN/10mm
Shelf Life UOMYear
Overall Length (Imperial) UOMyd
Insulation Resistance> 10^6 megohms
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial)0.37
Overall Width (Metric) UOMmm
Product ColorWhite
Tensile Strength (Metric)481.0
ApplicationInsulation
Elongation at Break5
Tensile Strength (Imperial)275.0
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial)10.0
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial)60.0
Electrolytic Corrosion Factor1.0
Overall Width (Metric)9.53
Tensile Strength (Imperial) UOMlb/in
Adhesive TypeAcrylic
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Metric)0.254
Overall Length (Metric)55.0
