3M Products & Supplies

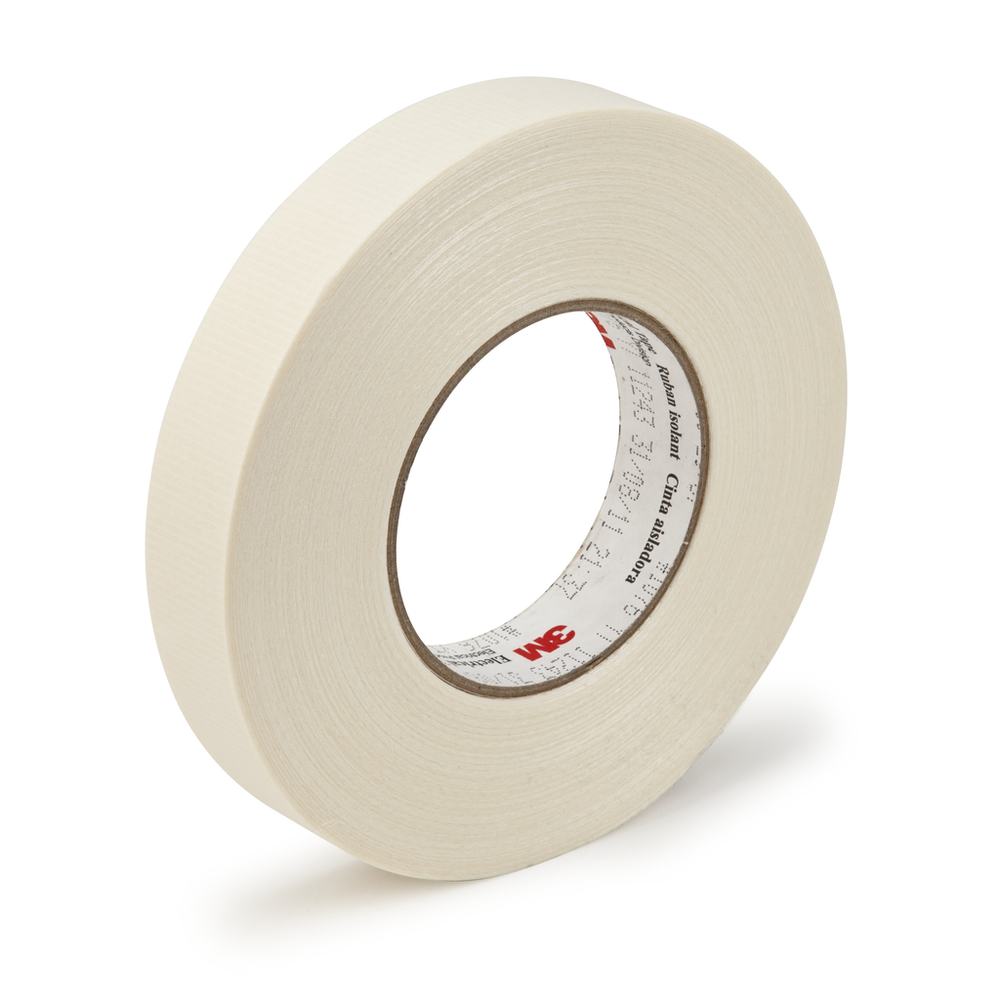

3M™ Filament-Reinforced Electrical Tape 1076, 8 in X 60 yd, Bulk, 3-in paper core, 4 Rolls/Case - 7010399050

Sold As: 4-Pack
SKU: 7010399050
MPN: 7010399050
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128604755
3M ID: 80611607963
5 Digit UPC: 60475
$914.39 ($228.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Filament Reinforced Electrical Tape 1076 is a 10 mil thick electrical filament tape. This tape is designed for oil filled distribution transformer applications and offers stable adherence even after long exposure to transformer fluids. The tape has electrical grade, paper backing that is reinforced with scrim glass filament and oil compatible, pressure sensitive, acrylic adhesive.

Features

  • Withstands a temperature range of -40 to 221 °F (-40 to 105 °C)
  • RoHS 2011/65/EU Compliant
  • Electrical-grade paper backing and oil-compatible, pressure-sensitive, acrylic adhesive
  • Woven, glass mat provides additional reinforcement and remains stable even after long exposure to transformer fluids
  • Saturable backing provides air entrapment resistance that minimizes trapped air between the adhesive layers in the tape

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Insulation Resistance> 10^6 megohms
Tensile Strength (Imperial) UOMlb/in
Tensile Strength (Metric) UOMN/10mm
Adhesive TypeAcrylic
Overall Width (Imperial)0.0
ApplicationInsulation
Total Tape Thickness without Liner (Imperial)10.0
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric) UOMmm
Overall Width (Metric)203.2
Shelf Life UOMYear
Tensile Strength (Metric)481.0
Electrolytic Corrosion Factor1.0
Total Tape Thickness without Liner (Imperial) UOMmil
Product ColorWhite
Tensile Strength (Imperial)275.0
Total Tape Thickness without Liner (Metric)0.254
Elongation at Break5
