3M Products & Supplies

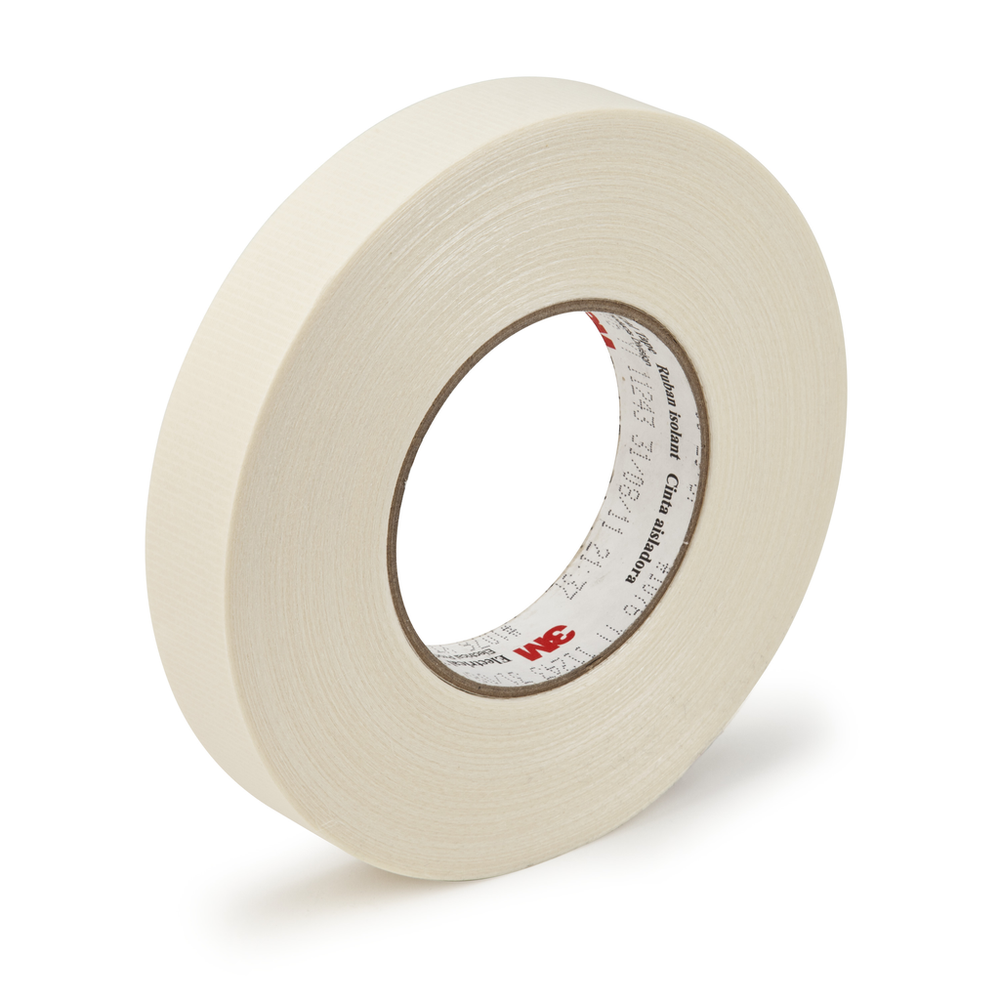

3M™ Filament-Reinforced Electrical Tape 1076, 1 in X 60 yds, Bulk, 3-in paper core, 36 Rolls/Case - 7010350273

Sold As: 36-Pack
SKU: 7010350273
MPN: 7010350273
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128601570
3M ID: 80611604192
5 Digit UPC: 60157
$1,028.93 ($28.58 / Count)
Hurry up! Current stock:

Product Description

3M™ Filament Reinforced Electrical Tape 1076 is a 10 mil thick electrical filament tape. This tape is designed for oil filled distribution transformer applications and offers stable adherence even after long exposure to transformer fluids. The tape has electrical grade, paper backing that is reinforced with scrim glass filament and oil compatible, pressure sensitive, acrylic adhesive.

Features

  • Woven, glass mat provides additional reinforcement and remains stable even after long exposure to transformer fluids
  • Withstands a temperature range of -40 to 221 °F (-40 to 105 °C)
  • RoHS 2011/65/EU Compliant
  • Electrical-grade paper backing and oil-compatible, pressure-sensitive, acrylic adhesive
  • Saturable backing provides air entrapment resistance that minimizes trapped air between the adhesive layers in the tape

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Tensile Strength (Metric) UOMN/10mm
Overall Width (Imperial)0.0
Tensile Strength (Metric)481.0
Tensile Strength (Imperial)275.0
Total Tape Thickness without Liner (Imperial) UOMmil
ApplicationInsulation
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)10.0
Product ColorWhite
Tensile Strength (Imperial) UOMlb/in
Shelf Life UOMYear
Electrolytic Corrosion Factor1.0
Overall Width (Metric) UOMmm
Adhesive TypeAcrylic
Overall Width (Metric)25.4
Insulation Resistance> 10^6 megohms
Elongation at Break5
Total Tape Thickness without Liner (Metric)0.254
