3M Products & Supplies

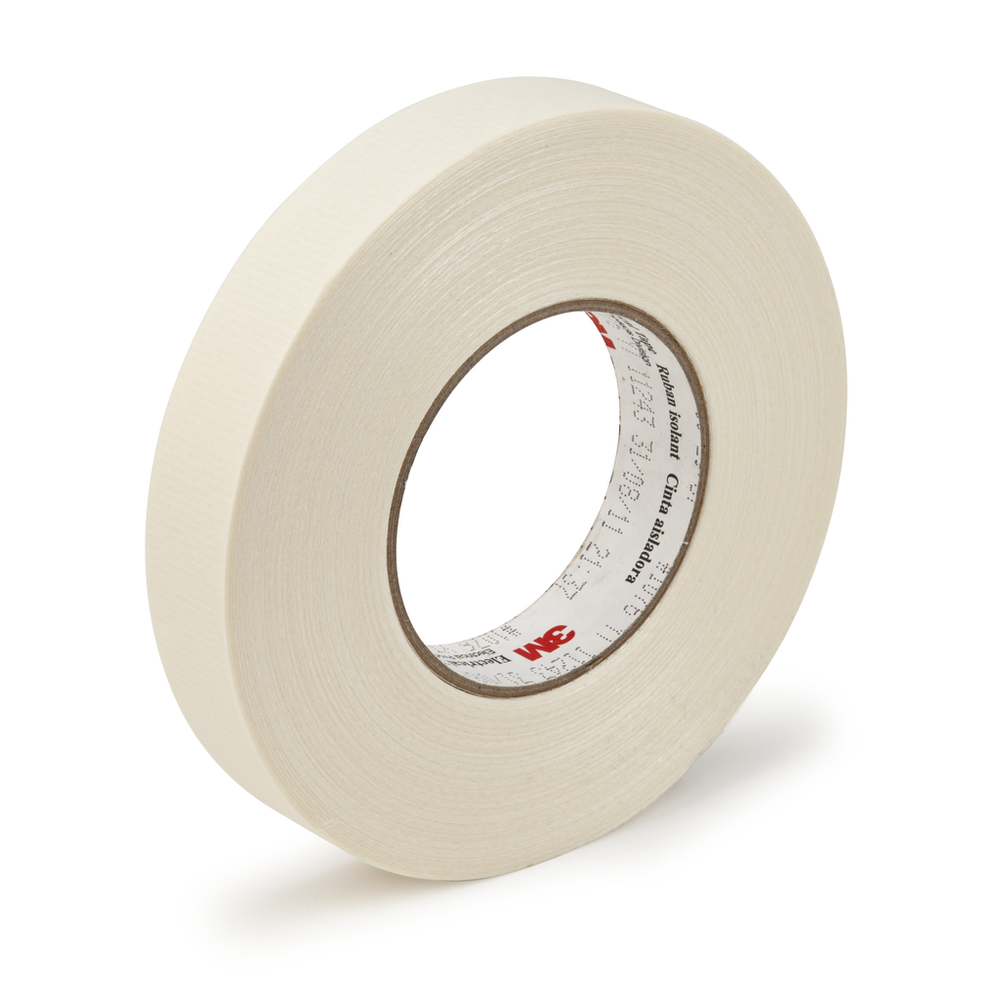

3M™ Filament-Reinforced Electrical Tape 1076, 5/8 in X 60 yds, Bulk, 3-in paper core, 60 Rolls/Case - 7010350387

Sold As: 60-Pack
SKU: 7010350387
MPN: 7010350387
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128603208
3M ID: 80611605850
5 Digit UPC: 60320
$1,072.08 ($17.87 / Count)
Hurry up! Current stock:

Product Description

3M™ Filament Reinforced Electrical Tape 1076 is a 10 mil thick electrical filament tape. This tape is designed for oil filled distribution transformer applications and offers stable adherence even after long exposure to transformer fluids. The tape has electrical grade, paper backing that is reinforced with scrim glass filament and oil compatible, pressure sensitive, acrylic adhesive.

Features

  • Electrical-grade paper backing and oil-compatible, pressure-sensitive, acrylic adhesive
  • RoHS 2011/65/EU Compliant
  • Woven, glass mat provides additional reinforcement and remains stable even after long exposure to transformer fluids
  • Saturable backing provides air entrapment resistance that minimizes trapped air between the adhesive layers in the tape
  • Withstands a temperature range of -40 to 221 °F (-40 to 105 °C)

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Electrolytic Corrosion Factor1.0
Tensile Strength (Metric)481.0
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)10.0
Overall Width (Metric)15.875
Tensile Strength (Imperial) UOMlb/in
Overall Width (Metric) UOMmm
Tensile Strength (Metric) UOMN/10mm
Product ColorWhite
Tensile Strength (Imperial)275.0
Shelf Life UOMYear
Elongation at Break5
Adhesive TypeAcrylic
ApplicationInsulation
Total Tape Thickness without Liner (Metric)0.254
Overall Width (Imperial)0.0
Total Tape Thickness without Liner (Imperial) UOMmil
Insulation Resistance> 10^6 megohms
