3M Products & Supplies

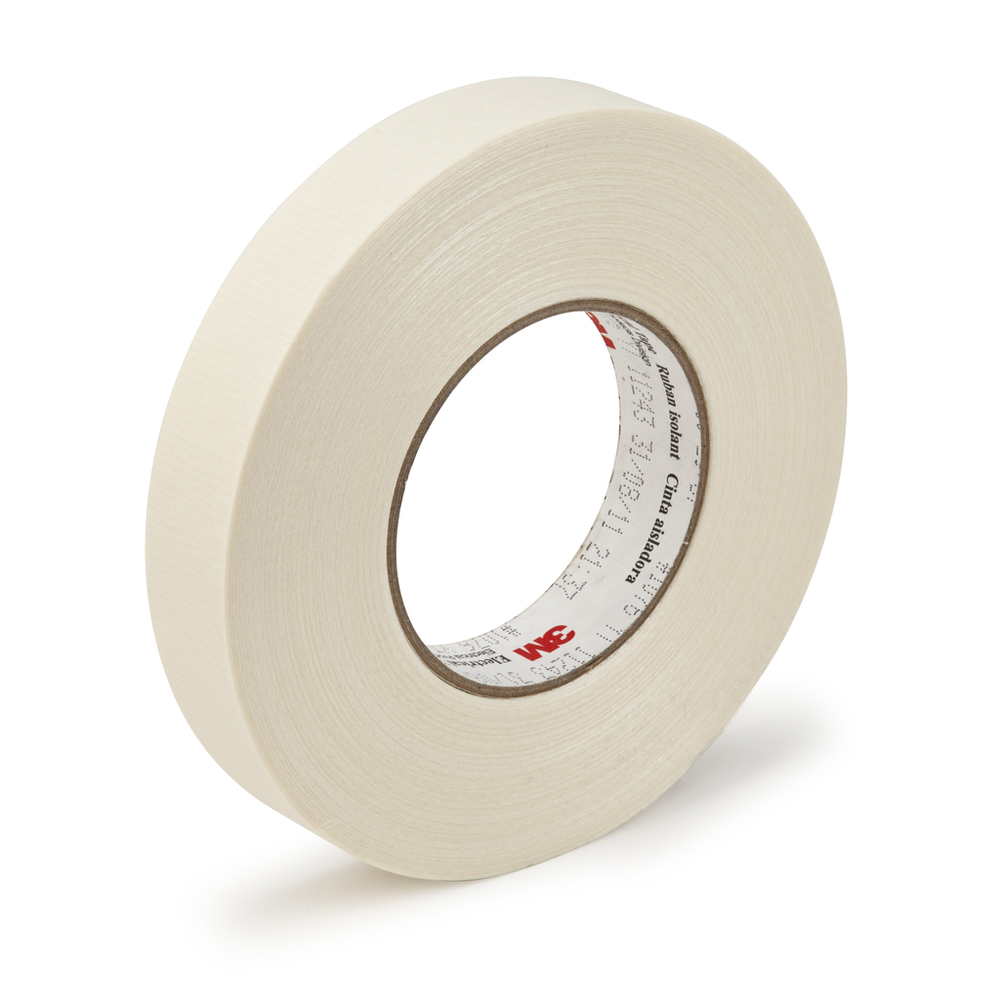

3M™ Filament-Reinforced Electrical Tape 1076, 1/2 in X 60 yd, Bulk, 3-in paper core, 72 Rolls/Case - 7000133700

Sold As: 72-Pack
SKU: 7000133700
MPN: 7000133700
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128602614
3M ID: 80611605231
5 Digit UPC: 60261
$1,079.37 ($14.99 / Count)
Hurry up! Current stock:

Product Description

3M™ Filament Reinforced Electrical Tape 1076 is a 10 mil thick electrical filament tape. This tape is designed for oil filled distribution transformer applications and offers stable adherence even after long exposure to transformer fluids. The tape has electrical grade, paper backing that is reinforced with scrim glass filament and oil compatible, pressure sensitive, acrylic adhesive.

Features

  • Saturable backing provides air entrapment resistance that minimizes trapped air between the adhesive layers in the tape
  • Withstands a temperature range of -40 to 221 °F (-40 to 105 °C)
  • Electrical-grade paper backing and oil-compatible, pressure-sensitive, acrylic adhesive
  • Woven, glass mat provides additional reinforcement and remains stable even after long exposure to transformer fluids
  • RoHS 2011/65/EU Compliant

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Total Tape Thickness without Liner (Metric) UOMmm
ApplicationInsulation
Shelf Life UOMYear
Tensile Strength (Imperial) UOMlb/in
Product ColorWhite
Adhesive TypeAcrylic
Tensile Strength (Metric) UOMN/10mm
Insulation Resistance> 10^6 megohms
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric)12.7
Total Tape Thickness without Liner (Imperial)10.0
Overall Width (Imperial)0.0
Elongation at Break5
Overall Length (Metric)58.8
Tensile Strength (Imperial)275.0
Tensile Strength (Metric)481.0
Overall Length (Imperial) UOMyd
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Metric)0.254
Electrolytic Corrosion Factor1.0
Overall Length (Imperial)50.0
Overall Width (Metric) UOMmm
