3M Products & Supplies

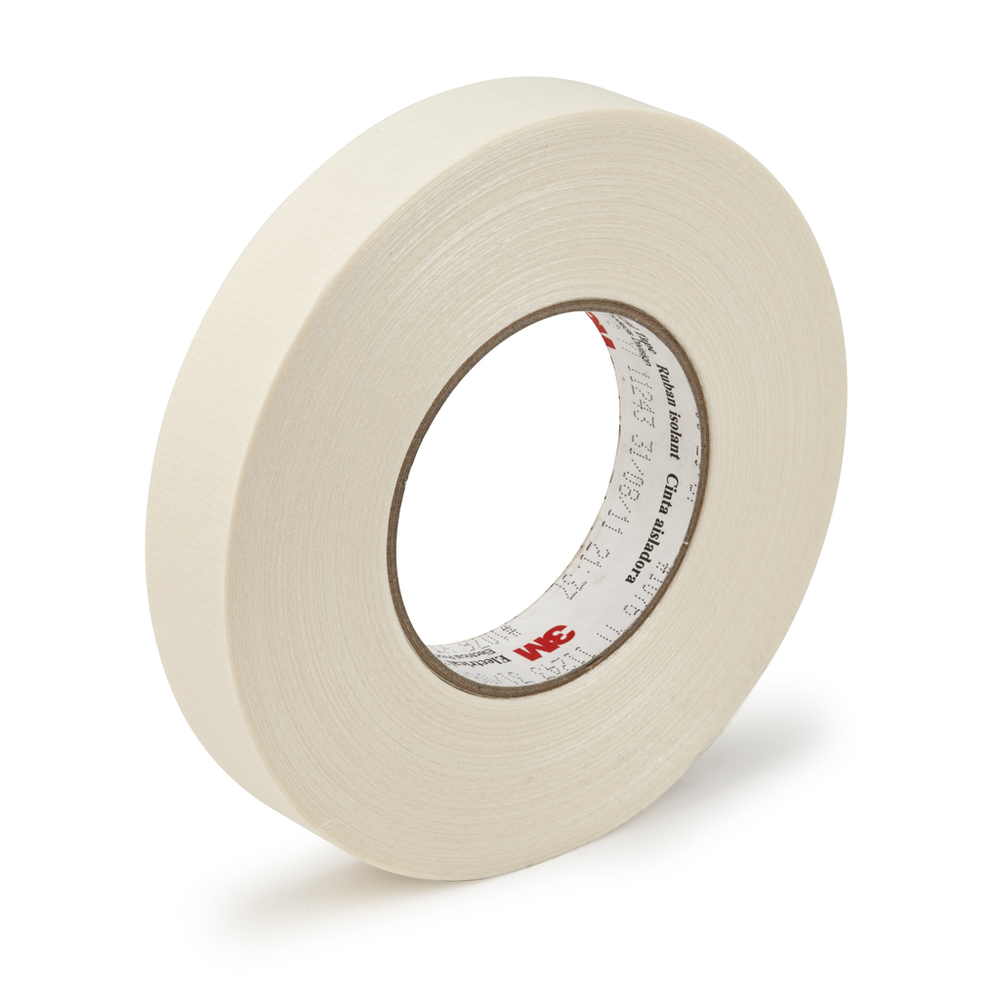

3M™ Filament-Reinforced Electrical Tape 1076, 3/8 in X 45 yd, Bulk, 3-in paper core, 96 Rolls/Case - 7010401041

Sold As: 96-Pack
SKU: 7010401041
MPN: 7010401041
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128610503
3M ID: 80611613755
5 Digit UPC: 61050
$805.52 ($8.39 / Count)
Hurry up! Current stock:

Product Description

3M™ Filament Reinforced Electrical Tape 1076 is a 10 mil thick electrical filament tape. This tape is designed for oil filled distribution transformer applications and offers stable adherence even after long exposure to transformer fluids. The tape has electrical grade, paper backing that is reinforced with scrim glass filament and oil compatible, pressure sensitive, acrylic adhesive.

Features

  • Withstands a temperature range of -40 to 221 °F (-40 to 105 °C)
  • Electrical-grade paper backing and oil-compatible, pressure-sensitive, acrylic adhesive
  • Woven, glass mat provides additional reinforcement and remains stable even after long exposure to transformer fluids
  • RoHS 2011/65/EU Compliant
  • Saturable backing provides air entrapment resistance that minimizes trapped air between the adhesive layers in the tape

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Electrolytic Corrosion Factor1.0
Adhesive TypeAcrylic
Product ColorWhite
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Metric)481.0
Overall Width (Metric)9.53
Insulation Resistance> 10^6 megohms
Tensile Strength (Imperial)275.0
Overall Width (Imperial)0.0
Overall Width (Metric) UOMmm
Shelf Life UOMYear
Total Tape Thickness without Liner (Metric)0.254
Total Tape Thickness without Liner (Metric) UOMmm
ApplicationInsulation
Elongation at Break5
Total Tape Thickness without Liner (Imperial)10.0
Tensile Strength (Metric) UOMN/10mm
Tensile Strength (Imperial) UOMlb/in
