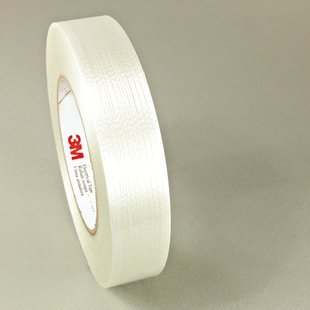

3M™ Filament-Reinforced Electrical Tape 1139, 1/2 in x 60 yd, 72/Case - 7000132931

Sold As: 72-Pack
SKU: 7000132931
MPN: 7000132931
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128541661
3M ID: 80611234768
5 Digit UPC: 54166
$1,246.04 ($17.31 / Count)
Hurry up! Current stock:

Product Description

3M™ Filament Reinforced Electrical Tape 1139 is a 6.5 mil thick, acrylic adhesive, solvent resistant, electrical tape. This tape is suitable for oil and air filled transfer applications and reinforcements, as well as for holding and separating ground insulation. The tape is 600V rated and withstands a temperature range of 32 to 311 °F (0 to 155 °C).

Features

  • Solvent-resistant, high temperature filament tape with acrylic adhesive
  • Low stretch, high tensile and edge-tear resistant
  • Designed for applications needing both the dielectric strength of polyester film and the high mechanical strength of glass fibers
  • Excellent for anchoring lead wires to banding coils and end-turn taping
  • UL Listed and RoHS 2011/65/EU Compliant

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Overall Width (Imperial)0.5
Backing (Carrier) Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial)5.5
Specifications MetCSA Certified, UL Recognized
Overall Length (Imperial) UOMyd
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Length (Metric) UOMm
Overall Width (Metric)12.7
Overall Length (Imperial)60.0
Backing (Carrier) Thickness (Metric)0.14
Overall Length (Metric)54.8
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial)6.5
Total Tape Thickness without Liner (Metric)0.165
Adhesive TypeAcrylic
Insulation Resistance> 10^6 megohms
Total Thickness (Metric)0.165
ApplicationFixing insulation; Insulation
Tape GradeProfessional
Total Tape Thickness without Liner (Metric) UOMmm
Dielectric Strength (V/mil)33 kV / mm
Shelf Life UOMYear
Product ColorTransparent
Overall Width (Metric) UOMmm
