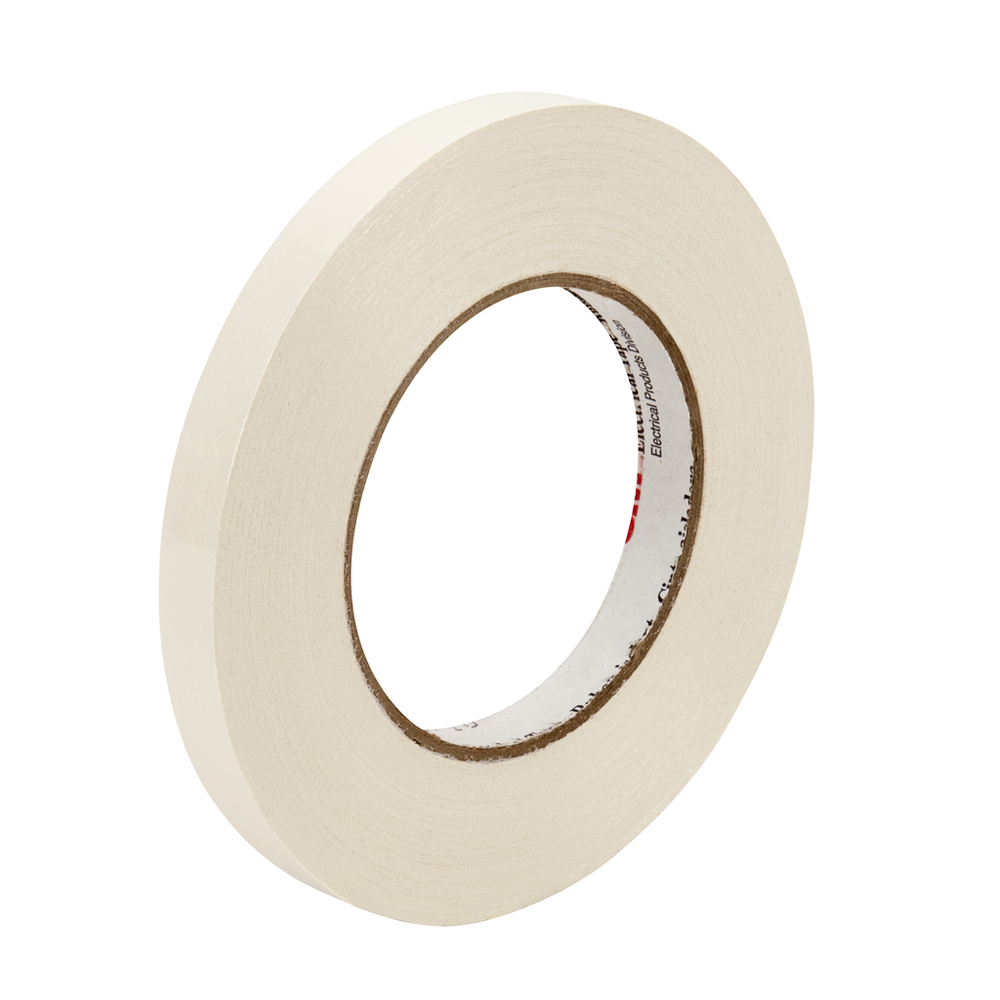

3M™ Filament-Reinforced Electrical Tape 46, 1/4 in x 60 yds, 3 in plastic core, Bulk, 144 Rolls/Case - 7010349211

Sold As: 144-Pack
SKU: 7010349211
MPN: 7010349211
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128540169
3M ID: 80611233265
5 Digit UPC: 54016
$1,475.82 ($10.25 / Count)
Hurry up! Current stock:

Product Description

3M™ Tape 46 is an electrical tape with rubber adhesive. This tape is ideal for anchoring lead wires to banding coils and for end turn taping. This tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).

Features

  • For applications needing both the dielectric strength of polyester film and the high mechanical strength of glass fibers
  • Excellent for anchoring lead wires to banding coils and end-turn taping
  • Low stretch, high tensile and edge-tear resistance
  • UL Listed and RoHS 2011/65/EU Compliant
  • Tough, durable filament tape with thermosetting rubber resin adhesive
  • 7 mil thickness

Specifications

Shelf Life1825
Country of OriginUnited States
Overall Width (Metric)6.35
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial)0.0
Shelf Life UOMYear
Total Tape Thickness without Liner (Imperial) UOMmil
Elongation at Break5
ApplicationInsulation
Adhesive TypeThermosetting Rubber
Insulation Resistance> 10^6 megohms
Product ColorTransparent
Total Tape Thickness without Liner (Imperial)7.0
Electrolytic Corrosion Factor1.0
Tensile Strength (Metric)481.0
Specifications MetCSA Certified, UL Recognized
Overall Width (Metric) UOMmm
Tensile Strength (Imperial)275.0
Tensile Strength (Imperial) UOMlb/in
Total Tape Thickness without Liner (Metric)0.178
Tensile Strength (Metric) UOMN/10mm
