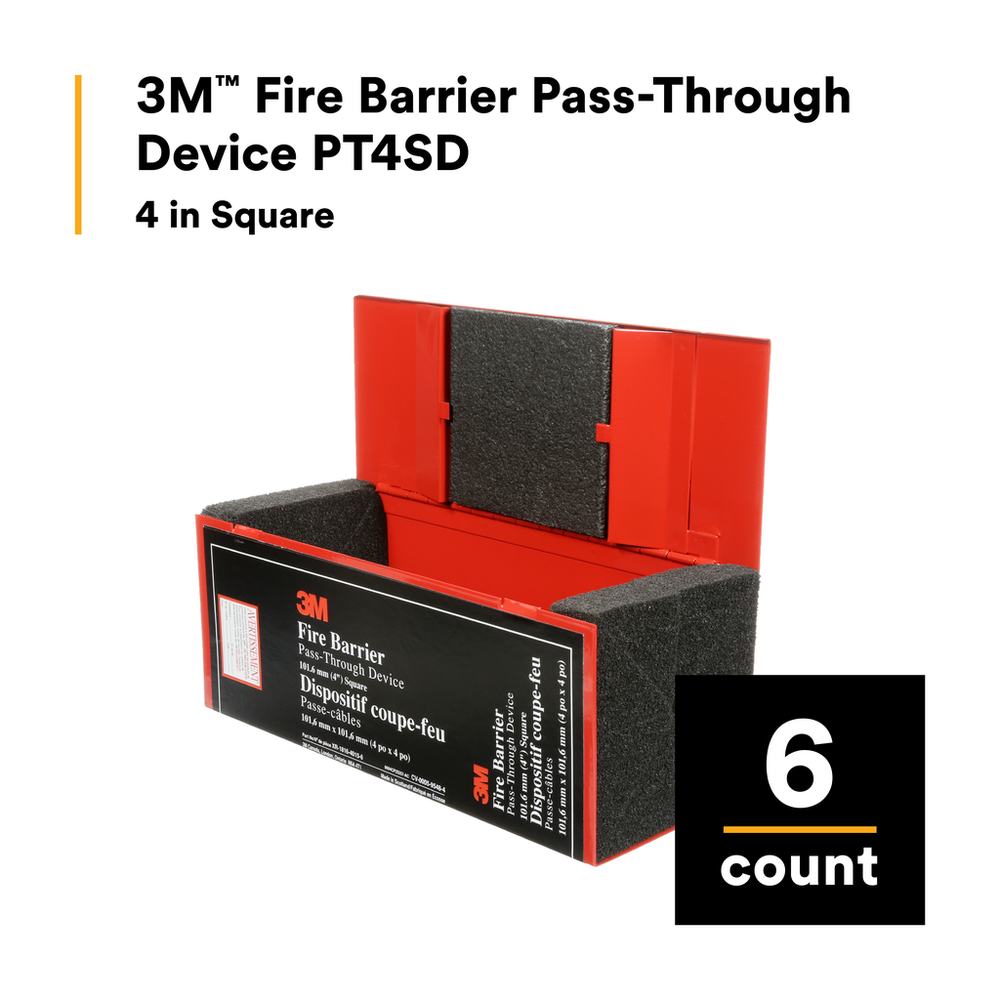

3M Fire Barrier Pass-Through Device PT4SD, 4 in Square, 6/Case

Sold As: 6-Pack
SKU: 7100004181
MPN: 7100004181
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051115165979
3M ID: 98040055141
5 Digit UPC: 16597
Country of Origin: United Kingdom
Manufacturer: 3M
Size: 4 in
Color: Black
$559.98 ($93.33 / Count)
Hurry up! Current stock:
The 3M Fire Barrier Pass-Through Device Square are one-piece hinged metal enclosures designed to prevent the passage of fire, smoke and toxic gas. This easily-installed device is ideal for firestopping penetrations in high traffic areas where telecom, data or electrical cables are frequently added or removed. Intumescent material and foam smoke seals achieve up to a 4 hour fire protection rating.

Simple and Effective for Protecting Critical Equipment
3M Fire Barrier Pass-Through Device Square is an ideal firestop solution for through wall penetrations for cabling. This one-piece, square, hinged metal enclosure features a combination of a fixed firestopping intumescent material and foam smoke seals at each end. The re-enterable device installs quickly and easily for new construction or retrofit applications. It is built for square openings and allows for stacking multiple boxes for easy cable management. It is suitable for blank penetrations, or it hinges over existing cables. It can be secured using optional mounting brackets or firestop sealants (sold separately). When adding or removing cables in the penetration, technicians simply remove and reinstall the foam plugs instead of the entire device. This Fire Barrier Pass-Through Device is designed to provide years of dependable through-penetration firestopping with no reapplication or maintenance.

Recommended Applications

  • Vital telecom equipment firestop, especially in high-traffic areas where cable is frequently added or removed
  • Cables – 750 kcmil, Cat 6, fiber optic, 300 pair No. 24 AWG copper telephone cable, thermostat
  • Plastic pipes – ccPVC, PVC, ENT, CPVC, FRPP, PVDF, ccABS, ABS, rigid non-metallic, PEX
  • Metal pipes – copper, steel, iron, flexible gas
  • Insulated - AB/PVC on copper line sets
  • Combinations – metallic, non-metallic and insulated pipes plus cables
  • Blank penetrations

Fully Tested and Approved
Our 3M Fire Barrier Pass-Through Device Round are firestop tested to the criteria of ASTM E 814/UL 1479 Standard Test Method for Fire Tests of Penetration Firestop Systems, ASTM E 84/UL 273 Standard Test Method for Surface Burning Characteristics of Building Materials, ASTM E 90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E 413 Classification for Rating Sound Insulation.

Reliable and Affordable Fire Protection
Effective and easy to install, 3M Fire Barrier Pass-Through Device Square are part of our family of fire protection products that offer the broadest, long-lasting solutions for a variety of commercial, industrial and residential applications. As a trusted leader in the fire protection industry, 3M offers a broad line of affordable products designed to meet the most demanding firestop requirements. Find the solution you need from the industry-preferred line of fire protection products.

Extra Details

  • Cable management solution for electrical, data and communication applications
  • Firestop tested for up to 3 hours in accordance with ASTM E 814 (UL 1479)
  • Intumescent material and foam smoke seals provide lasting firestop protection
  • One-piece, square hinged metal enclosure makes installation fast and easy
  • Re-enterable for high traffic areas or blank penetrations
  • Square shape allows for stacking multiple boxes for ganging
