3M Products & Supplies

3M™ Flanged Block Fork Nylon Insulated, 100/bottle, MNG14-6FFB/SX, suitable for use in a terminal block, 500/Case - 7100165311

Sold As: 500-Pack
SKU: 7100165311
MPN: 7100165311
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128589724
3M ID: 80611466188
5 Digit UPC: 58972
$561.87 ($1.12 / Count)
Hurry up! Current stock:

Product Description

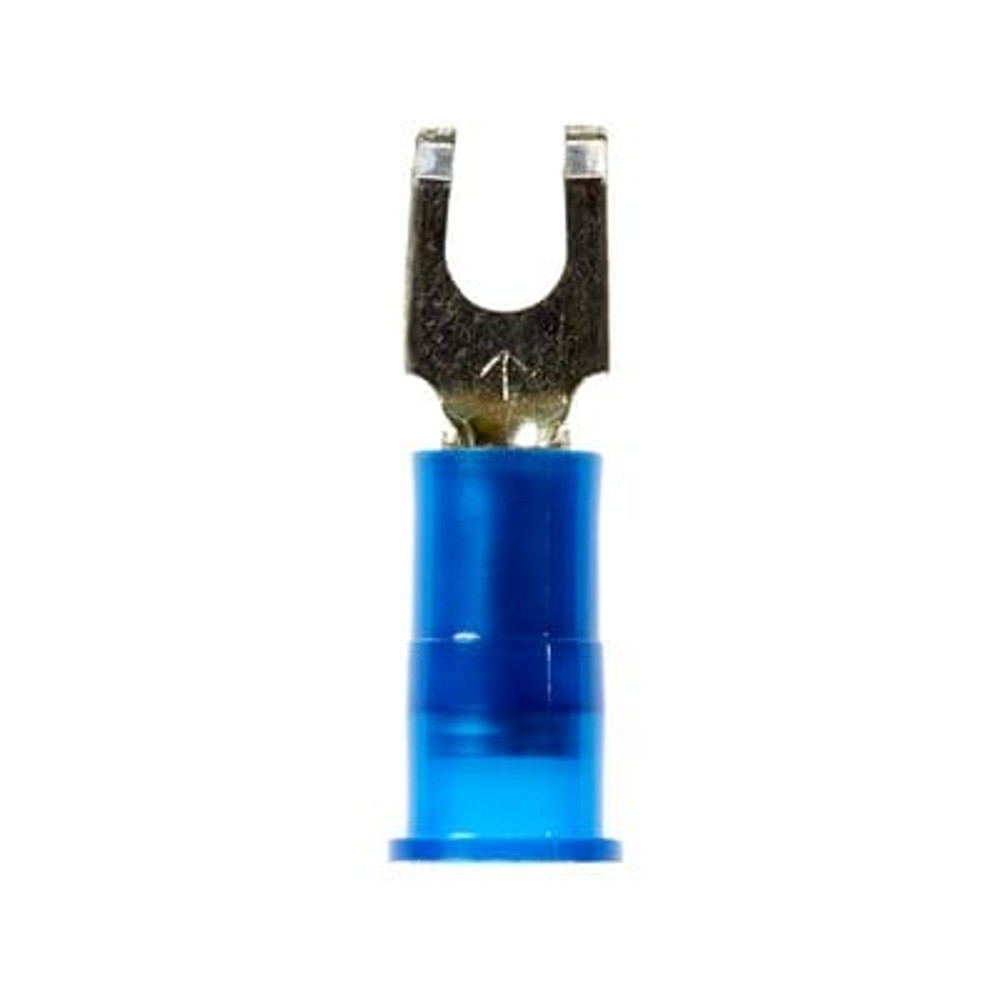

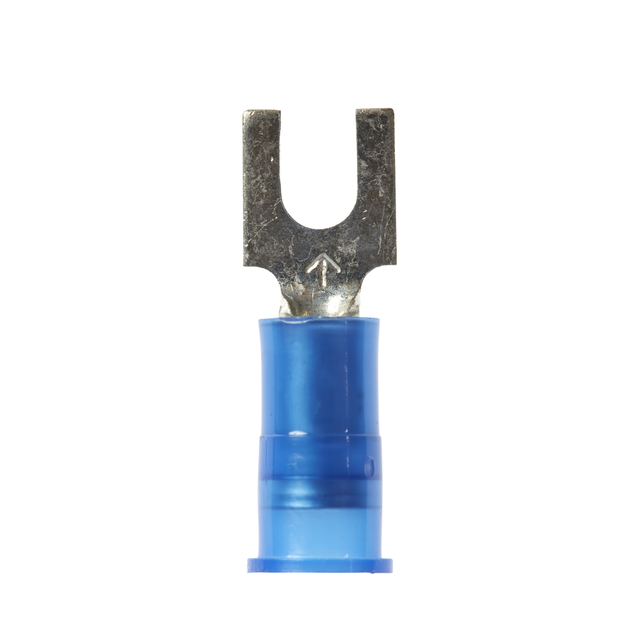

3M™ Flanged Block Fork Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Electrolytic copper construction offers good conductivity
  • Suitable for use in a terminal block
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Country of OriginUnited States
Packaging100 per bottle
Minimum Conductor Size (Metric)1.31 mm²
Stud Size#6
Units per Case500.0
Overall Length (Imperial) UOMin
Maximum Insulation Outer Diameter (Imperial)0.17
Overall Length (Imperial)0.86
Maximum Insulation Outer Diameter (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Barrel Inside Diameter0.090 Inch
Minimum Conductor Size (Imperial)16 AWG
Terminal StyleFlanged Block
Overall Width (Imperial) UOMin
Overall Width (Imperial)0.25
UL File NumberE23438
Dimension E0.71 Inch
Fork TypeFlanged Block
Terminal TypeFork
Maximum Conductor Size (Metric)2.08 mm²
Insulation MaterialNylon with Insulation Grip
Clearance (C)0.25 Inch
Maximum Conductor Size (Imperial)14 AWG
Barrel StyleButted
