3M Products & Supplies

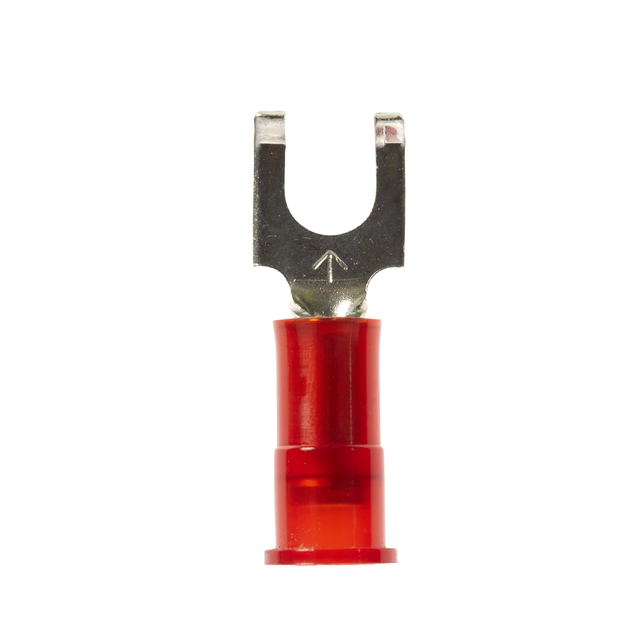

3M™ Flanged Block Fork Nylon Insulated, 100/bottle, MNG18-6FFB/SX, suitable for use in a terminal block, 500/Case - 7100165301

Sold As: 500-Pack
SKU: 7100165301
MPN: 7100165301
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128589523
3M ID: 80611465982
5 Digit UPC: 58952
$561.87 ($1.12 / Count)
Hurry up! Current stock:

Product Description

3M™ Flanged Block Fork Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Suitable for use in a terminal block
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Electrolytic copper construction offers good conductivity

Downloads

Specifications

Country of OriginUnited States
Fork TypeFlanged Block
Terminal TypeFork
Terminal StyleFlanged Block
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Barrel Inside Diameter0.070 Inch
Units per Case500.0
Overall Width (Imperial) UOMin
Stud Size#6
Dimension E0.69 Inch
Maximum Insulation Outer Diameter (Imperial)0.145
Clearance (C)0.25 Inch
Insulation MaterialNylon with Insulation Grip
Maximum Conductor Size (Imperial)18 AWG
Overall Length (Imperial) UOMin
Minimum Conductor Size (Metric)0.326 mm²
Packaging100 per bottle
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Conductor Size (Metric).0823 mm²
Minimum Conductor Size (Imperial)22 AWG
Overall Width (Imperial)0.25
UL File NumberE23438
Overall Length (Imperial)0.84
Barrel StyleButted
